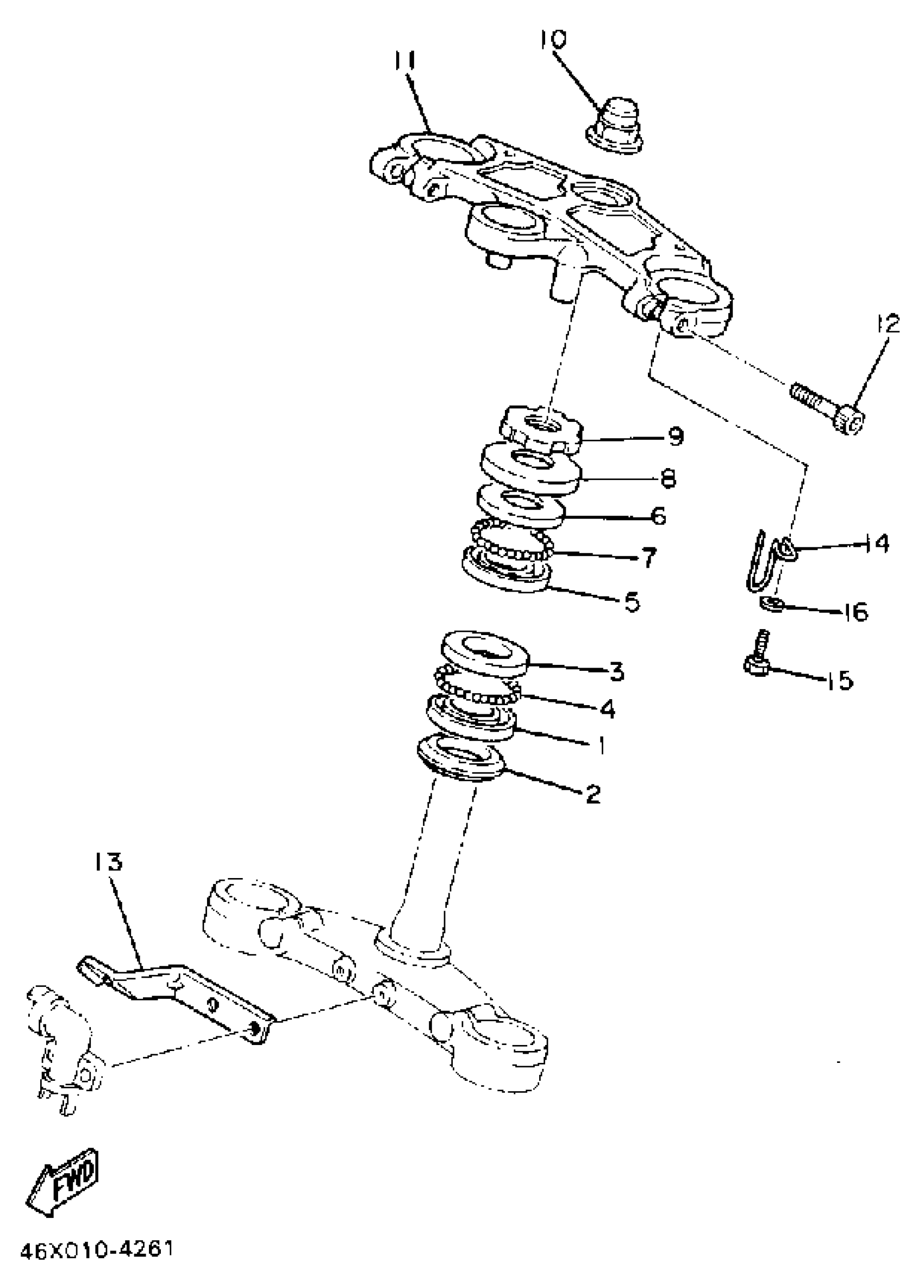

Yamaha FZ600UC (FZ600 CA) 1988 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

256-23411-00-00

Unavailable

2

SEAL, DUST

164-23462-00-00

$5.98

3

RACE, BALL2

256-23412-00-00

Unavailable

4

BALL

93501-04011-00

$5.84

5

RACE, BALL3

256-23413-00-00

Unavailable

6

RACE, BALL4

256-23414-00-00

Unavailable

7

BALL

93501-04011-00

$5.84

8

COVER, BALL RACE

136-23415-00-00

$7.18

9

NUT

90179-25004-00

$19.41

10

NUT, CROWN(4FM)

90176-22081-00

$27.98

11

CROWN, HANDLE

46X-23435-00-00

Unavailable

12

BOLT, SOCKET

91317-08030-00

$5.75

13

STAY

46X-2317E-00-00

Unavailable

14

BRACKET

46X-21158-00-00

Unavailable

15

BOLT, HEXAGON

97017-06012-00

$2.44

16

WASHER, SPRING

92907-06100-00

Unavailable
