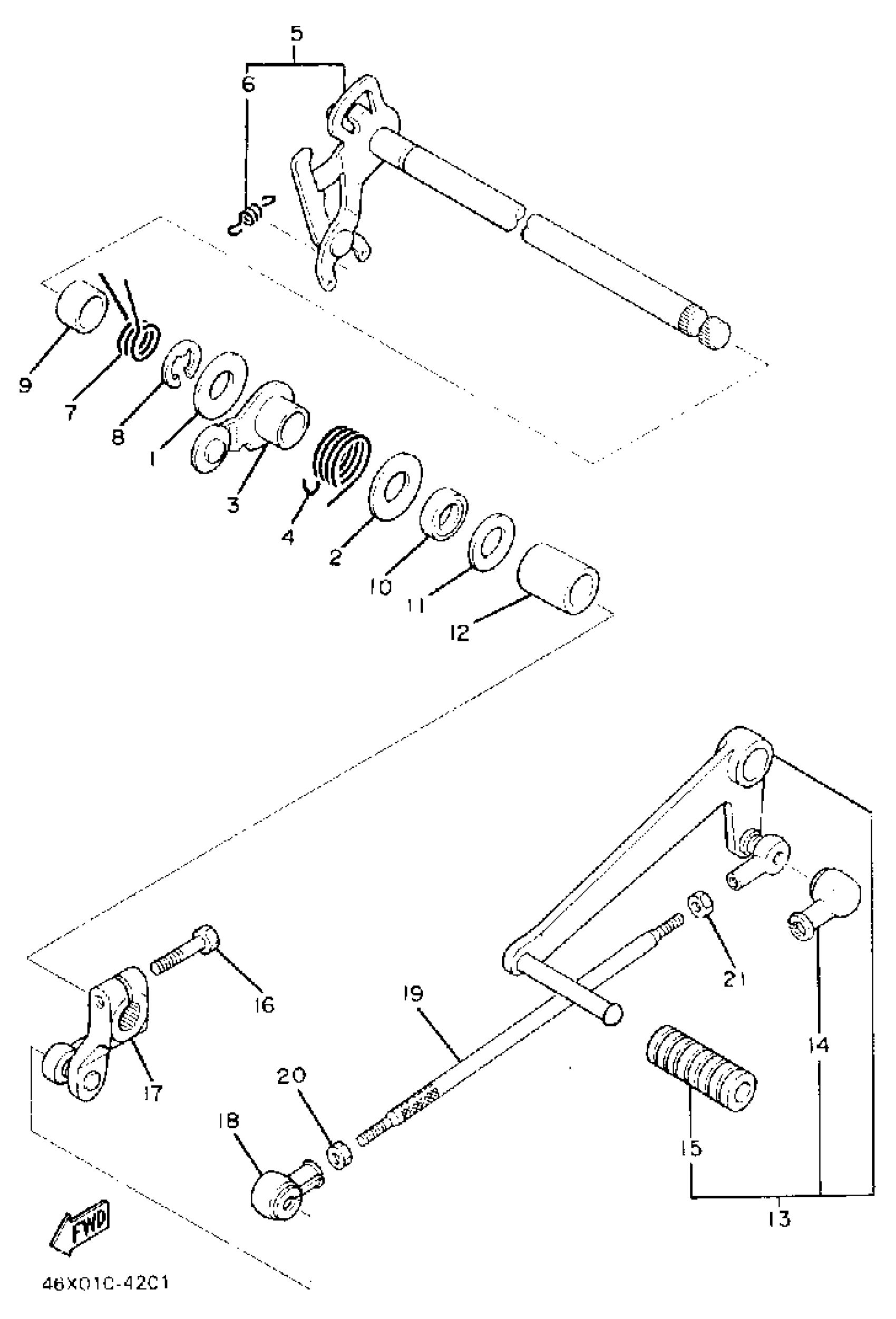

Yamaha FZ600UC (FZ600 CA) 1988 SHIFT SHAFT Diagram

#

Description
Price

1

WASHER

90201-12588-00

$5.93

2

WASHER, PLATE (4N0)

90201-126A7-00

$5.86

3

STOPPER LEVER ASSY

4G0-18140-00-00

Unavailable

4

SPRING, TORSION

90508-29640-00

Unavailable

5

SHIFT LEVER ASSEMBLY

4G0-18120-01-00

Unavailable

6

SPRING, TENSION (4H7)

90506-08227-00

$2.80

7

. SPRING, TORSION

90508-32534-00

Unavailable

8

CIRCLIP

99006-10600-00

$6.45

9

COLLAR

90387-12033-00

$6.08

10

SEAL, OIL (30X)

93102-12321-00

$9.45

11

WASHER, PLATE (353)

90201-12575-00

$5.75

12

COLLAR (4G0)

90387-125A8-00

$2.83

13

SHIFT PEDAL ASY

3HE-18110-01-00

Unavailable

14

COVER, DUST

2H9-18154-00-00

$5.12

15

COVER, CHANGE PEDAL

132-18113-01-00

$5.96

16

BOLT, HEXAGON

97017-06020-00

Unavailable

17

ARM, SHIFT

1TX-18112-00-00

Unavailable

18

COVER, DUST

2H9-18154-00-00

$5.12

19

ROD, SHIFT

46X-18115-00-00

Unavailable

20

NUT(650)

95380-06700-00

Unavailable

21

NUT (2H9)

90170-06228-00

Unavailable
