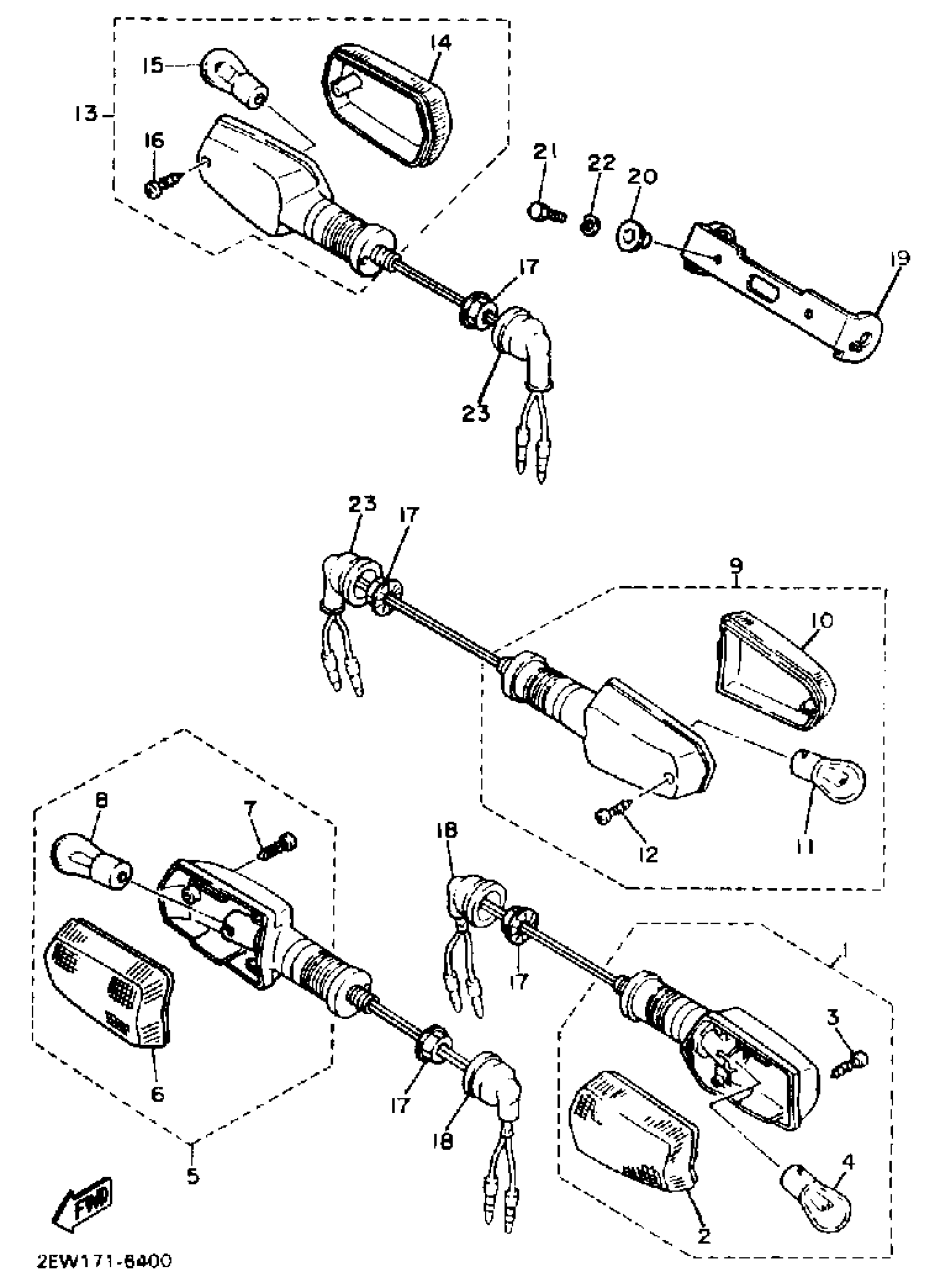

Yamaha FZ600SC (FZ600S CA) 1986 TURNSIGNAL Diagram

#

Description
Price

1

REAR FLASHER LIGHT ASSY 2

1UF-83340-00-00

$134.99

2

LENS, FLASHER

51L-83332-01-00

Unavailable

3

SCREW, PAN TAP.2

97707-40520-00

$9.49

4

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

5

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

Unavailable

6

LENS, FLASHER 2

51L-83342-01-00

$11.99

7

SCREW, PAN TAP.2

97707-40520-00

$9.49

8

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

9

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

Unavailable

10

LENS, FLASHER 2

51L-83342-01-00

$11.99

11

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

12

SCREW, PAN TAP.2

97707-40520-00

$9.49

13

REAR FLASHER LIGHT ASSY 2

1UF-83340-00-00

$134.99

14

LENS, FLASHER

51L-83332-01-00

Unavailable

15

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

16

SCREW, PAN TAP.2

97707-40520-00

$9.49

17

NUT(3GG)

90179-12588-00

Unavailable

18

CAP

18G-83365-00-00

Unavailable

19

STAY, FLASHER

46X-83368-00-00

Unavailable

20

COLLAR (3L6)

90387-06737-00

Unavailable

21

BOLT(3DM)

97024-06020-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

CAP

46X-83365-00-00

Unavailable
