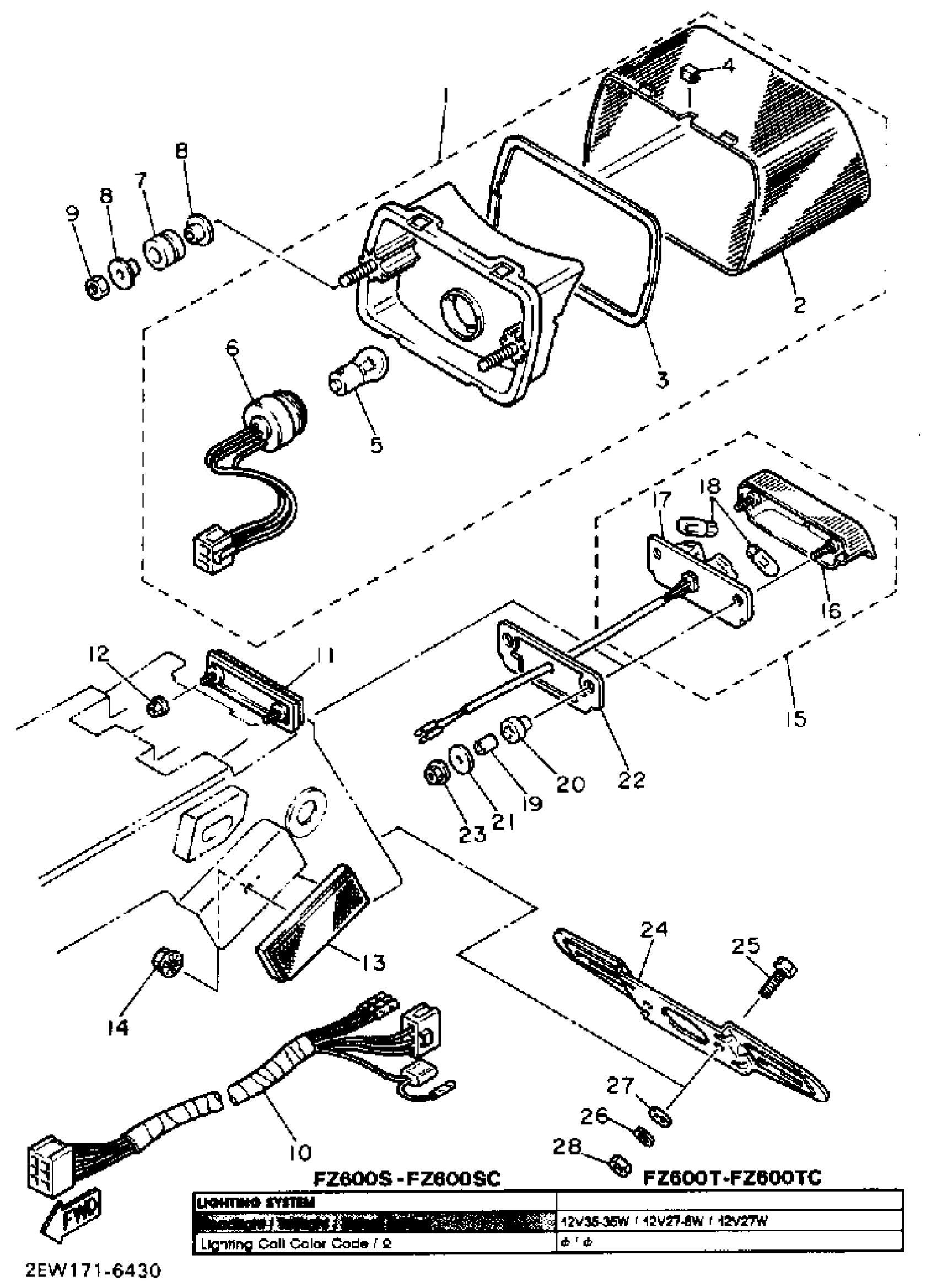

Yamaha FZ600SC (FZ600S CA) 1986 TAILLIGHT Diagram
#
Description
Price
1
TAILLIGHT UNIT ASSEMBLY
1UJ-84710-A0-00
Unavailable
2
. LENS, TAILLIGHT
1FN-84721-E0-00
Unavailable
3
GASKET, TAIL LENS
47X-84723-00-00
Unavailable
4
. GROMMET
1A2-84718-40-00
Unavailable
6
. CORD ASSEMBLY
1UJ-84735-A0-00
Unavailable
7
DAMPER (11H-83541-00)
16G-84736-00-00
Unavailable
9
NUT, HEXAGON
95380-06600-00
Unavailable
10
CORD, TAILLIGHT
2AX-84717-00-00
Unavailable
13
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
15
LICENSE LIGHT UNIT ASSY (4H3-84745-60-00)
2AX-84745-00-00
Unavailable
16
. BODY, LICENSE LIGHT
2AX-84749-00-00
Unavailable
17
. BASE, LICENSE LIGHT
2AX-84741-00-00
Unavailable
18
. BULB, METER 12V 38W
3F9-84744-00-XX
Unavailable
19
COLLAR(53Y)
90387-066H9-00
Unavailable
20
DAMPER
3F9-84553-00-00
Unavailable
21
WASHER, SPECIAL
3F9-84754-00-00
Unavailable
22
SEAT, BASE
3F9-84742-00-00
Unavailable
24
BRACKET, LICENSE (36Y-84751-E1-98)
36Y-84751-E1-98
Unavailable
25
BOLT, HEXAGON
97017-06016-00
Unavailable
26
WASHER, SPRING
92907-06100-00
Unavailable
27
WASHER, PLATE
90201-06380-00
Unavailable
28
NUT(650)
95380-06700-00
Unavailable
