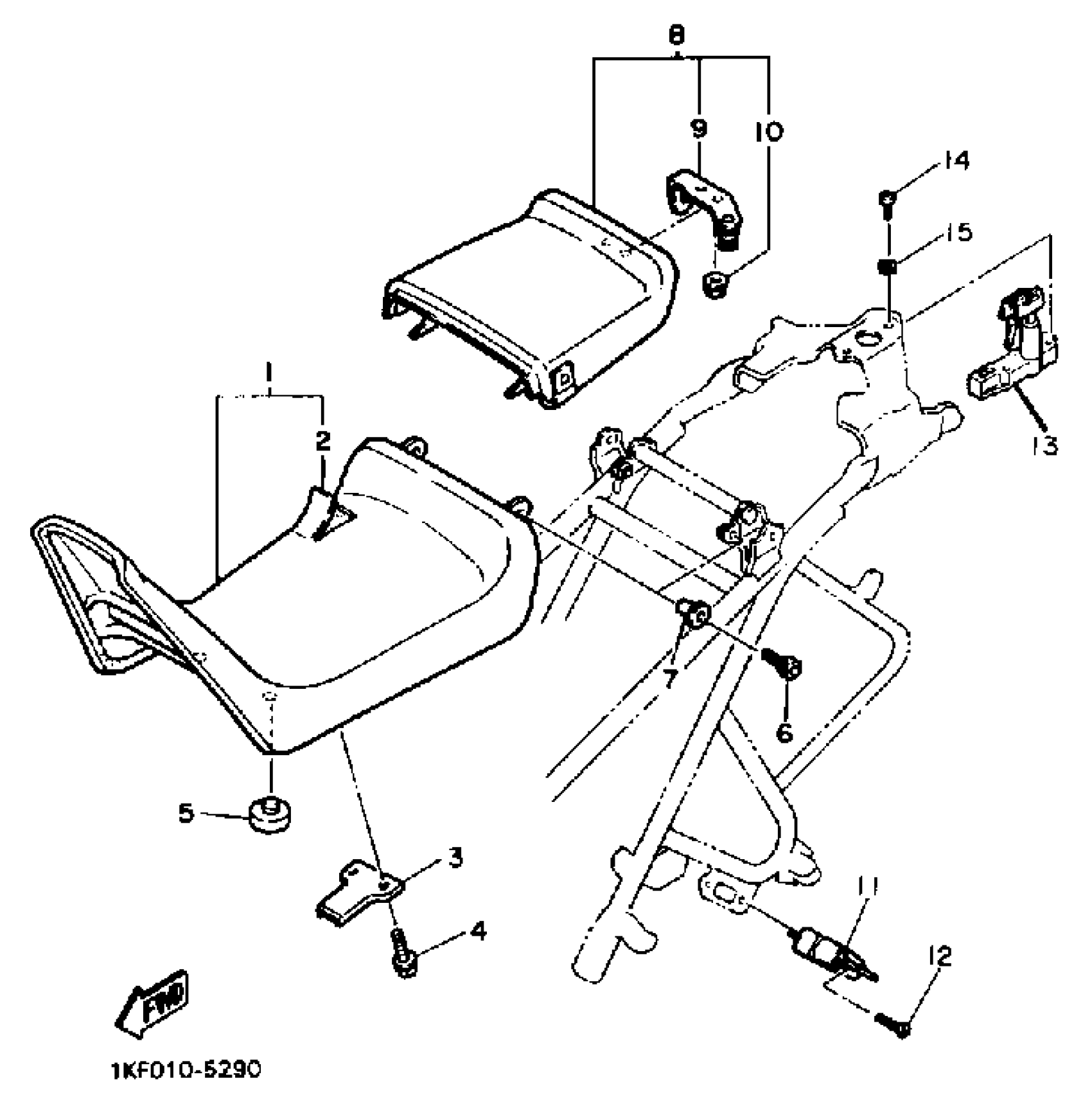

Yamaha FZ600SC (FZ600S CA) 1986 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSEMBLY
46X-W2471-00-00
Unavailable
2
. COVER, SINGLE SEAT
46X-24711-00-00
Unavailable
3
. BRACKET, SEAT
5X6-24748-10-00
Unavailable
8
TANDEM SEAT ASSEMBLY
46X-24750-00-00
Unavailable
9
. HOOK, SEAT
46X-24754-00-00
Unavailable
13
SEAT LOCK ASSEMBLY
2AX-24705-00-00
Unavailable
14
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
15
WASHER, SPRING
92995-06100-00
Unavailable
