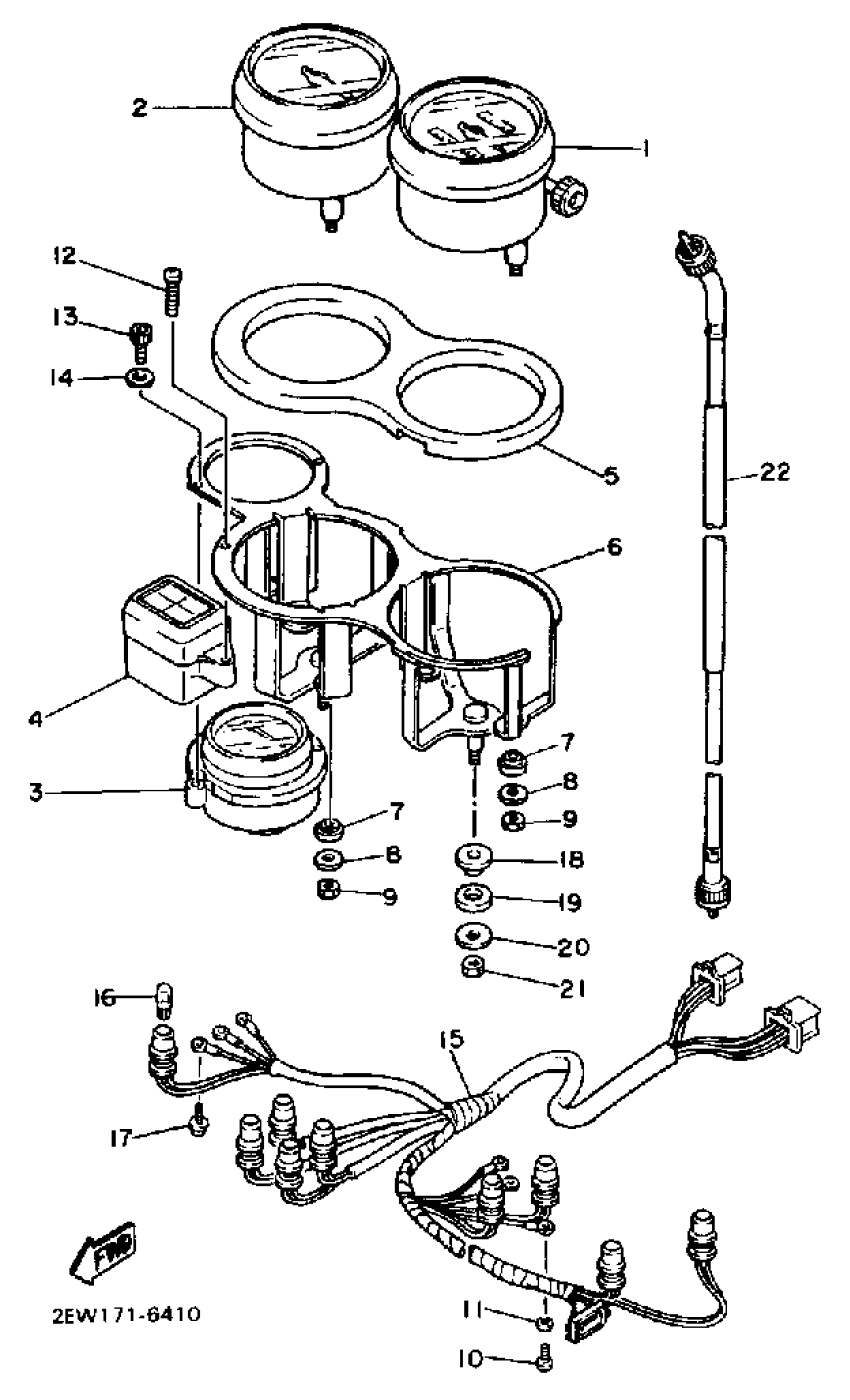

Yamaha FZ600SC (FZ600S CA) 1986 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY (2ZX-83570-A0)

47X-83570-G0-00

Unavailable

2

TACHOMETER ASSEMBLY

2AX-83540-00-00

Unavailable

3

FUEL METER ASSEMBLY

2AX-85750-00-00

Unavailable

4

UNAVAILABLE IN PRICE BOOK

4X7-83530-00-00

Unavailable

5

DAMPER

47X-83513-00-00

Unavailable

6

BRACKET, METER

46X-83519-00-00

Unavailable

7

DAMPER, METER COVER FITTING

584-83523-00-00

Unavailable

8

WASHER PLATE 803835240000

90201-05032-00

Unavailable

9

NUT, HEXAGON

95317-05600-00

$2.34

10

SCREW, PAN HEAD(3KS)

98507-03012-00

Unavailable

11

WASHER, SPRING

92990-03100-00

$8.49

12

SCREW, TAPPING(88J)

97706-30620-00

$2.55

13

BOLT,SOCKET HEAD

91317-03016-00

Unavailable

14

WASHER, SPECIAL

1AR-83524-00-00

Unavailable

15

SOCKET CORD ASSEMBLY

2AX-83520-00-00

Unavailable

16

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

17

SCREW, WITH WASHER(36Y)

90159-03102-00

Unavailable

18

DAMPER

31A-83592-00-00

Unavailable

19

DAMPER

31A-83593-00-00

Unavailable

20

WASHER, PLATE

90201-06086-00

Unavailable

21

NUT, HEXAGON

95380-06600-00

Unavailable

22

SPD MTR CABLE

46X-83550-01-00

Unavailable
