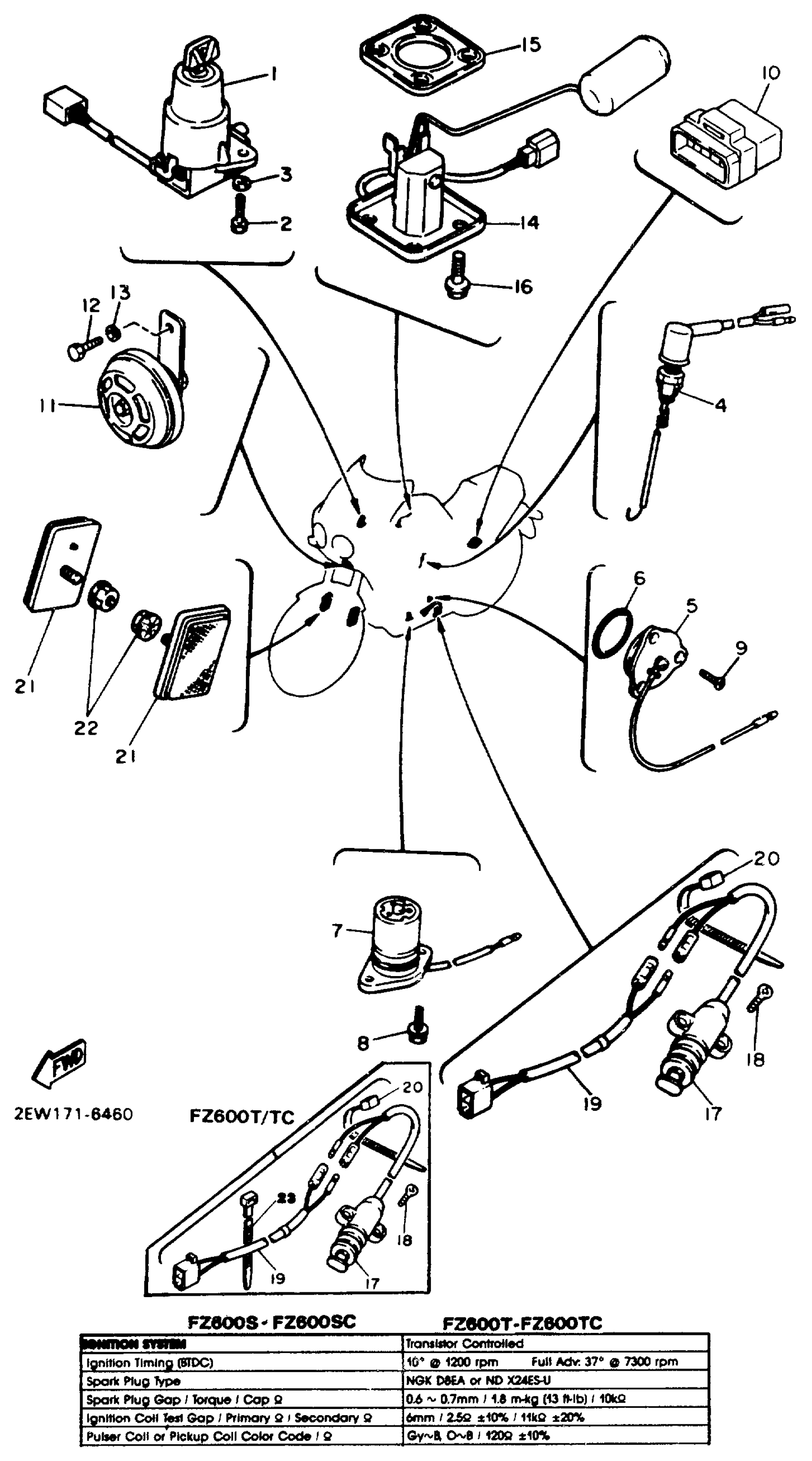

Yamaha FZ600SC (FZ600S CA) 1986 ELECTRICAL 2 Diagram

#

Description
Price

1

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

3

WASHER, PLAIN (646)

92990-06600-00

$2.80

4

STOP SWITCH ASSEMBLY (46X-82530-00)

46X-82530-02-00

Unavailable

5

NEUTRAL SWITCH ASSY

1L9-82540-00-00

$47.99

6

O-RING (371)

93210-29196-00

$8.49

7

OIL LEVEL GAUGE ASSEMBLY

4U8-85720-00-00

Unavailable

8

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

9

SCREW, FLAT

98707-05012-00

$1.71

10

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

11

HORN

4KG-83371-11-00

Unavailable

12

BOLT,SOCKET

91317-06012-00

$8.49

13

WASHER, SPRING

92907-06100-00

$4.25

14

SENDER UNIT ASSEMBLY, FUEL METER

2AX-85752-00-00

Unavailable

15

GASKET, SENDER UNIT

5G3-85753-00-00

Unavailable

16

BOLT, WITH WASHER

90119-05071-00

Unavailable

17

SWICH, SIDE STAND

5Y1-82566-00-00

Unavailable

18

SCREW, FLAT

98707-05016-00

Unavailable

19

WIRE,LEAD

49A-82541-00-00

Unavailable

20

CLAMP(MF1)

90464-15152-00

Unavailable

20

CLAMP

(90465-13275-00)

Unavailable

21

FRONT REFLECTOR ASSEMBLY

4X7-85110-00-00

Unavailable

22

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

23

BAND

1UA-82591-00-00

Unavailable
