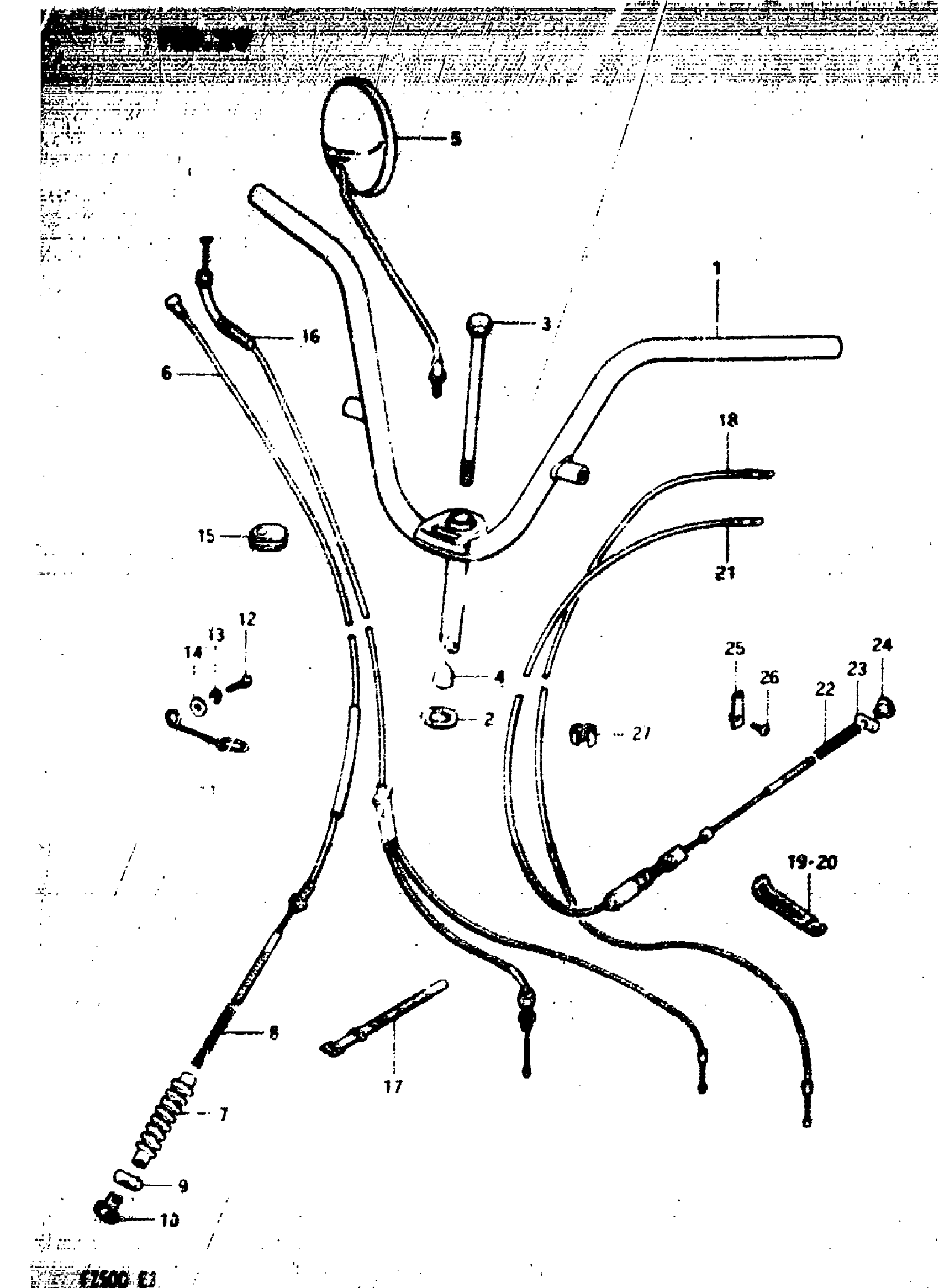

Suzuki FZ50 (1983) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56110-02402

Unavailable

2

STOP, HANDLEBAR BRACKET

56134-17200

Unavailable

3

BOLT

09111-12003

Unavailable

4

STOP

56251-02401

Unavailable

5

MIRROR ASSY,REA This part replaces 56500-35011.

56500-35611

$212.51

6

CABLE,FR BRAKE | Includes Item(s) 7 - 10 This part replaces 58100-02400.

58100-23441

Unavailable

7

DUST SEAL

09287-07001

$2.01

8

SPRING

09440-06003

$2.67

9

PIN

09209-10001

$1.33

10

NUT This part replaces 09150-05004.

09150-05101

$2.80

11

CLAMP

58626-02401

Unavailable

12

SCREW This part replaces 02112-06128.

02112-06127

$1.83

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

14

WASHER This part replaces 08322-21068.

08322-01067

$1.86

15

CROMMET

09308-06007

Unavailable

16

CABLE, THROTTLE This part replaces 58300-02411.

58300-02413

Unavailable

17

BAND (L:120) This part replaces 09407-12403.

09407-12402

$2.80

18

CABLE,STARTER This part replaces 58410-02402.

58410-02403

$19.12

19

CLAMP(L:80) This part replaces 09404-06405.

09404-06036

$1.76

20

CLAMP This part replaces 09404-06413.

09404-06039

$1.73

21

CABLE,REAR BRAK This part replaces 58510-02422.

58510-02423

Unavailable

22

SPRING This part replaces 09440-06019.

09440-06019-XC0

$2.99

23

PIN

09209-10001

$1.33

24

NUT This part replaces 09150-05004.

09150-05101

$2.80

25

PLATE, CABLE ADJUSTER

58570-02501

Unavailable

26

SCREW This part replaces 02112-06208.

02112-06207

$1.77

27

CLIP, CABLE

09408-00002

$2.20
