1983 Suzuki FZ50 Front Brake - Handle Switch Diagram

← All diagrams

Find the part on the Front Brake - Handle Switch diagram for your 1983 Suzuki FZ50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

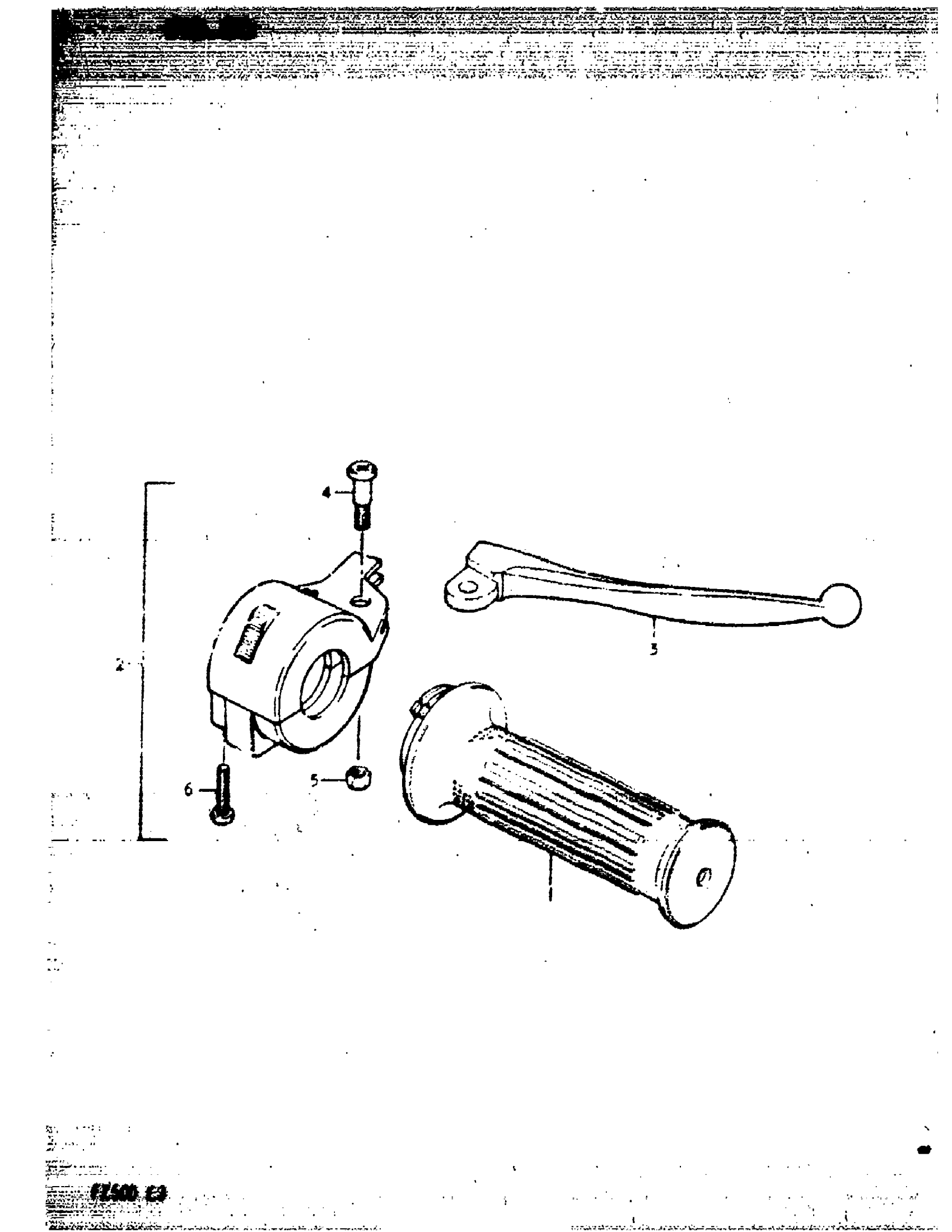

1983 Suzuki FZ50 Front Brake - Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-27501

1
Out of stock

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 6 This part replaces 57300-02410.

57300-17211

1
Out of stock

3

LEVER, BRAKE

57421-27500

1
Out of stock

4

SCREW This part replaces 57431-01011.

57431-01012

1
Out of stock

5

SCREW This part replaces 57633-27500.

08319-21057

1
Out of stock

6

SCREW,5X22 This part replaces 09125-05105.

09125-05105-XC0

2
Out of stock
