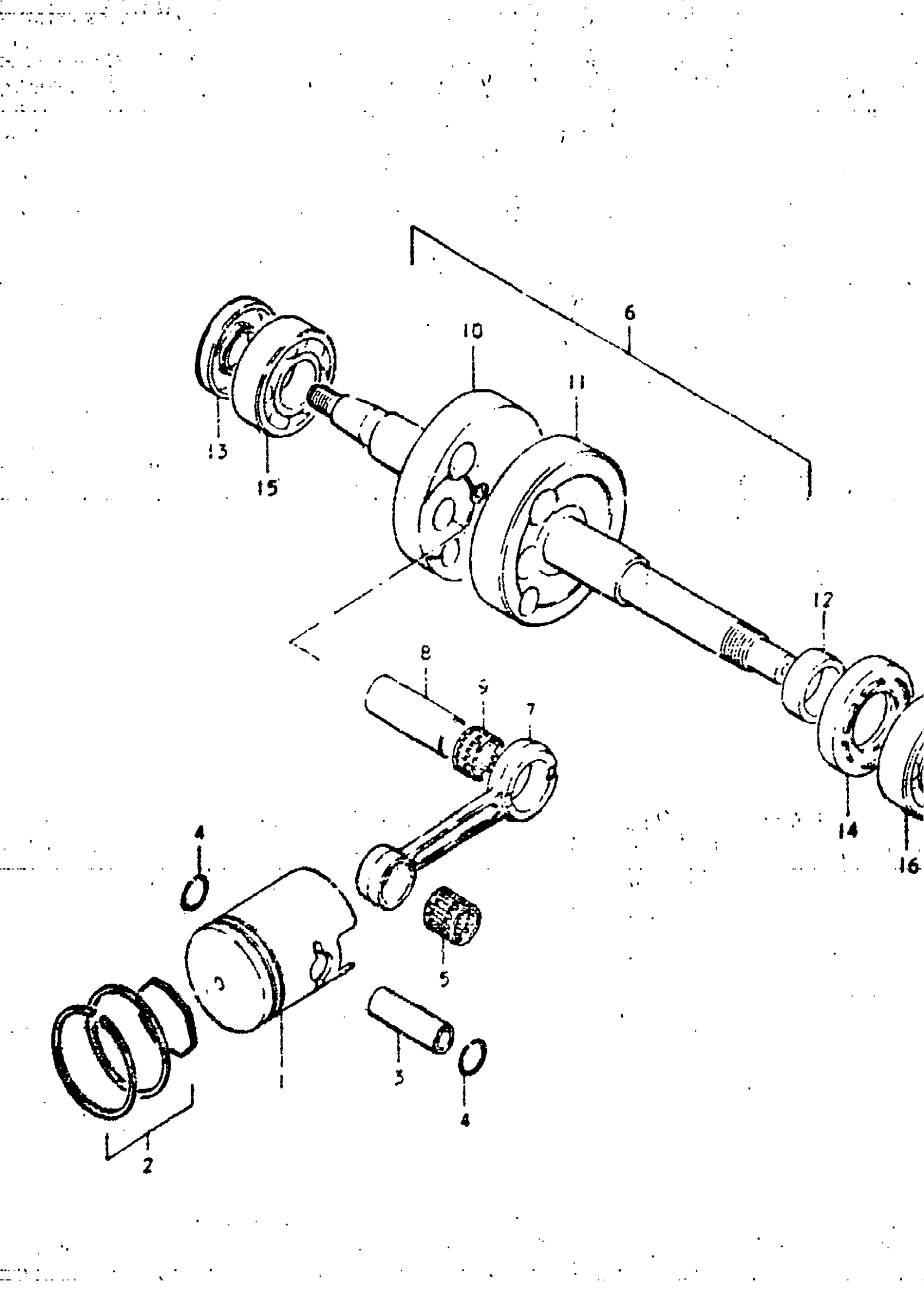

Suzuki FZ50 (1983) CRANKSHAFT Diagram

#

Description
Price

1

PISTON This part replaces 12110-35613.

12110-43000

$66.02

1

PISTON SET (OS:0.5) | OPT This part replaces 12110-35613-050.

12100-35611-050

$73.37

1

PISTON SET (OS:1.0) | OPT This part replaces 12110-35613-100.

12100-35611-100

$104.95

2

RING SET, PISTON (STD) This part replaces 12140-43000.

12140-16B10

$20.49

2

RING SET,PISTON (OS:0.5) | OPT

12140-46110-050

$30.98

2

RING SET,PISTON (OS:1.0) | OPT

12140-46110-100

$32.03

3

PIN, PISTON This part replaces 12151-02000.

12151-04700

$6.61

4

SNAP RING

09381-12001

$1.43

5

BEARING (12X16X16) This part replaces 09263-12015.

09263-12023

$9.20

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-04001

$447.05

7

ROD,CONNECTIN

12161-04001

$84.90

8

PIN,CRANK

12211-02300

Unavailable

9

BEARING

09263-15014

$15.00

10

CRANKSHAFT, RH This part replaces 12221-02311.

12221-02202

Unavailable

11

CRANKSHAFT,LH

12261-02311

Unavailable

12

SPACER,LH

09180-20021

$10.80

13

OIL SEAL,RH

09263-20034

Unavailable

14

OIL SEAL,LH

09283-26015

$5.58

15

BEARING,RH

09262-20048

$28.00

16

BEARING, DRIVE SHAFT LH This part replaces 09262-20019.

09262-20069

$21.00

17

BEARING,LH

09263-12014

$11.31
