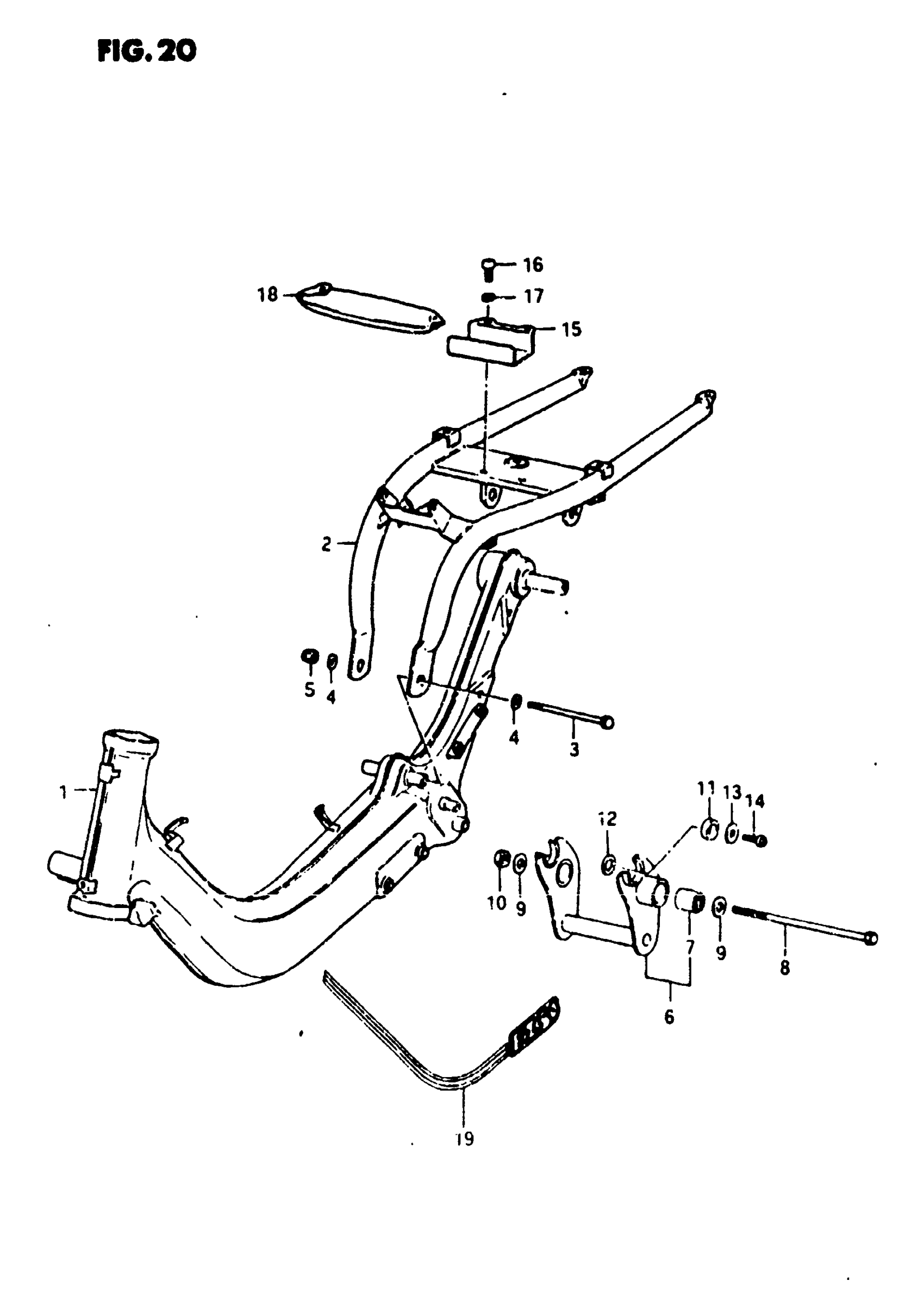

Suzuki FZ50 (1981) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 41100-02401-00B.

41100-02420-00B

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 41100-02401-07P.

41100-02420-799

Unavailable

1

FRAME (BLUE) | MODEL X

41100-02420-07S

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 41260-02400-00B.

41260-02401-00B

Unavailable

2

SUPERCEEDED BY 41260-02401-737 | MODEL T This part replaces 41260-02400-07P.

41260-02401-07P

Unavailable

2

TUBE, FRAME (BLUE) | MODEL X

41260-02401-07S

Unavailable

3

BOLT | MODEL N, T

01204-08907

Unavailable

3

BOLT | MODEL X This part replaces 01517-08908.

01550-08907

$5.63

4

WASHER This part replaces 08322-11088.

08322-01087

$1.86

5

NUT This part replaces 08313-11088.

08313-10087

$2.29

6

BRACKET SET, CRANKCASE | Includes Item(s) 7

41100-02820

Unavailable

7

BUSH

09319-10008

$6.68

8

BOLT, ENGINE MOUNTING This part replaces 09100-10040.

09100-10161

Unavailable

9

WASHER (10.5X22X2.3) This part replaces 09160-10037.

09160-10039

$2.24

10

NUT

09159-10011

$2.95

11

CUSHION | MODEL N, T This part replaces 09320-10013.

09320-10017

$3.36

11

CUSHION | MODEL X

09320-10017

$3.36

12

WASHER This part replaces 09160-10026.

09160-10121

$2.06

13

WASHER (5.5X18X1) This part replaces 09160-05003.

09160-05045

$1.95

14

SCREW This part replaces 02142-04088.

02142-0408B

$1.71

15

HOLDER, TOOL

41530-02400

Unavailable

16

SCREW This part replaces 02112-06128.

02112-06127

$1.83

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

18

TOOL ASSY This part replaces 09800-00161.

09800-21080

$39.58

19

NO DESCRIPTION AVAILABLE | MODEL T, X This part replaces 68180-02400.

68180-02400-538

Unavailable
