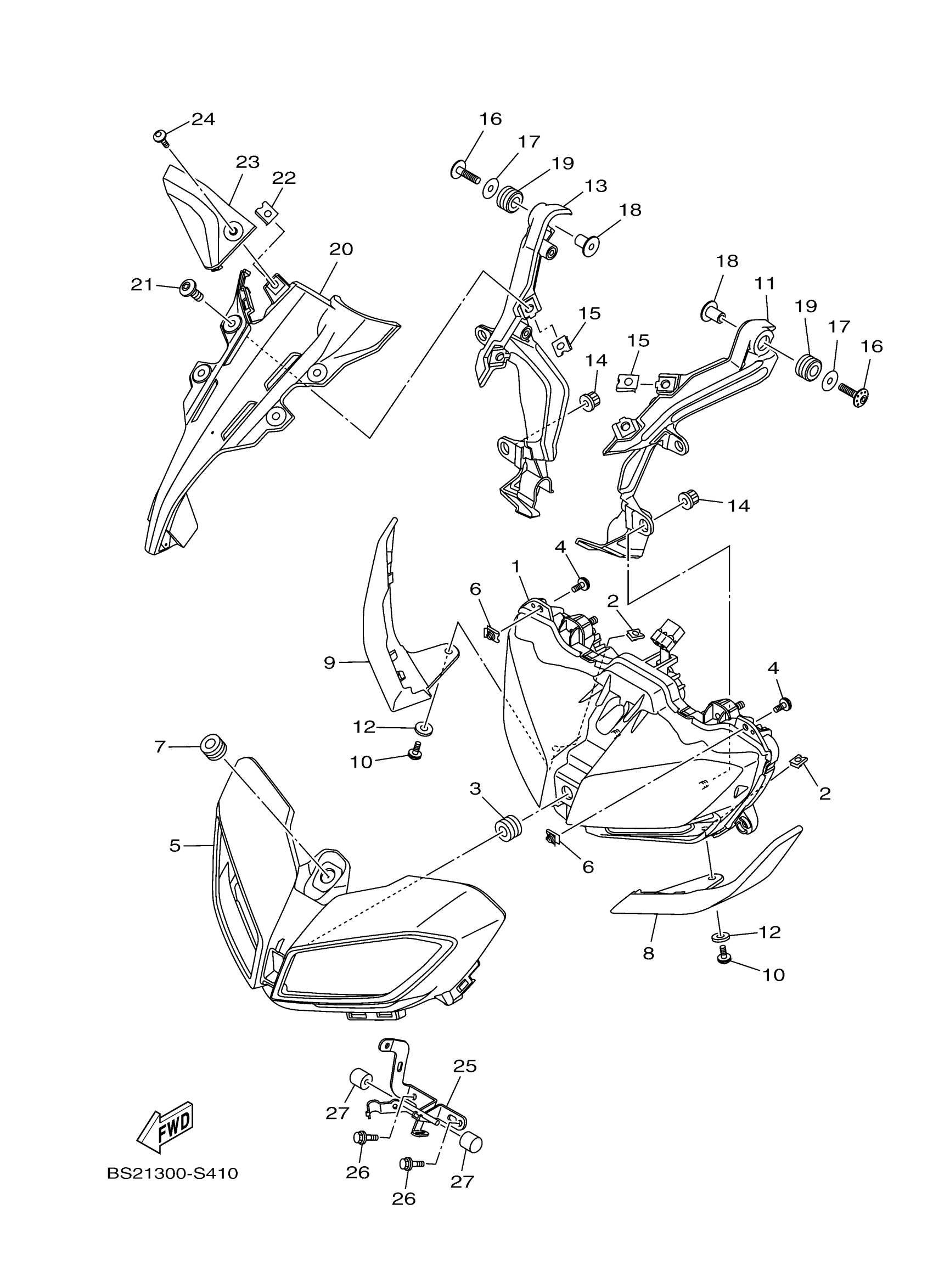

Yamaha FZ09HW (FZ09) BS2300 2017 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY

BS2-84300-01-00

Unavailable

2

NUT, SPRING(1YT)

90183-05042-00

$0.86

3

GROMMET

90480-13014-00

$6.39

4

SCREW, TAPPING

90167-05080-00

$1.78

5

COVER, HEADLIGHT 1

BS2-2838D-00-00

Unavailable

6

NUT, SPRING(1YT)

90183-05042-00

$0.86

7

GROMMET

90480-13014-00

$6.39

8

VISOR, SIDE 1

BS2-2830C-00-P4

Unavailable

9

VISOR, SIDE 2

BS2-2830D-00-P4

$83.98

10

SCREW, TAPPING

90167-05080-00

$1.78

11

STAY, HEAD LIGHT 1

BS2-2831V-00-00

Unavailable

12

WASHER, PLATE(1KT)

90202-05180-00

$6.00

13

STAY, HEAD LIGHT 2

BS2-2832V-00-00

$28.89

14

NUT

90179-06074-00

$7.72

15

NUT, SPRING

90183-061A4-00

$1.89

16

BOLT

90109-06317-00

Unavailable

17

WASHER, PLATE

90201-06095-00

Unavailable

18

COLLAR

90387-06136-00

Unavailable

19

GROMMET 839774310000

90480-14023-00

Unavailable

20

PANEL, FRONT

BS2-23391-00-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-06127-00

Unavailable

22

NUT, SPRING

90183-050A6-00

Unavailable

23

PANEL, FRONT 2

BS2-23397-00-00

Unavailable

24

BOLT

90111-05002-00

Unavailable

25

STAY, SETTING

BS2-8431R-00-00

Unavailable

26

BOLT, FLANGE DEEP RECESS

95D07-06016-00

Unavailable

27

DAMPER

BS2-84527-00-00

Unavailable
