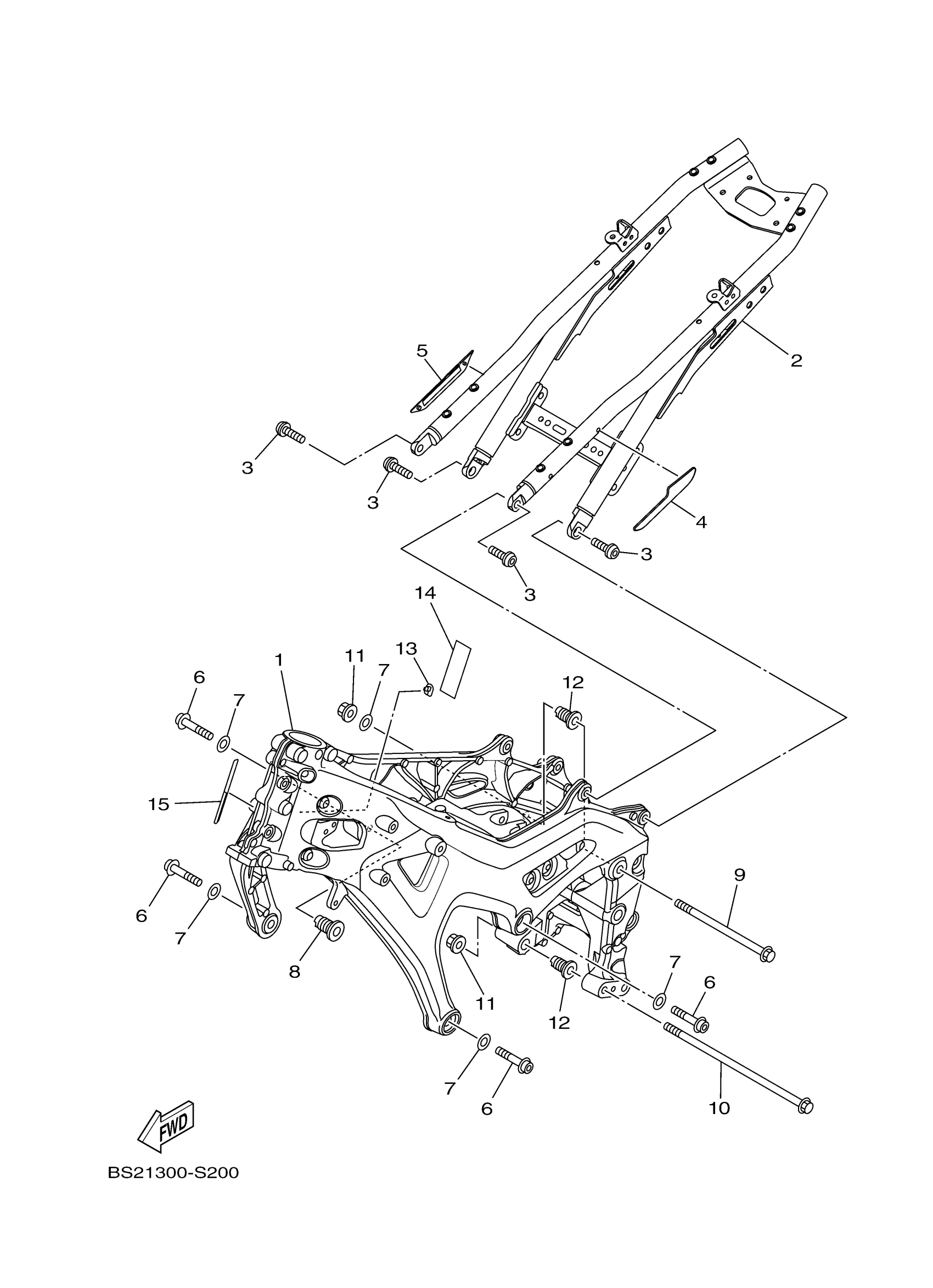

Yamaha FZ09HW (FZ09) BS2300 2017 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1RC-21110-80-00

$1,137.99

2

REAR FRAME COMP.

BS2-21190-00-00

Unavailable

3

SCREW

90149-10060-00

$6.15

4

COVER 9

1RC-2117X-01-00

Unavailable

5

COVER 10

1RC-2117Y-01-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD

90110-10043-00

$3.52

7

WASHER, PLATE

90201-10075-00

$2.33

8

BOLT, ENGINE ADJUSTING

1RC-21495-00-00

Unavailable

9

BOLT, FLANGE

90105-10391-00

Unavailable

10

BOLT, FLANGE

90105-10437-00

Unavailable

11

NUT

90179-10024-00

$8.20

12

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

Unavailable

13

PLUG, BLIND

5VX-21289-00-00

$3.73

14

DAMPER

1HP-H2176-01-00

$1.44

15

PROTECTOR

1RC-2117G-00-00

$3.95
