2016 Yamaha FZ09 (FZ09GL) Steering Diagram

← All diagrams

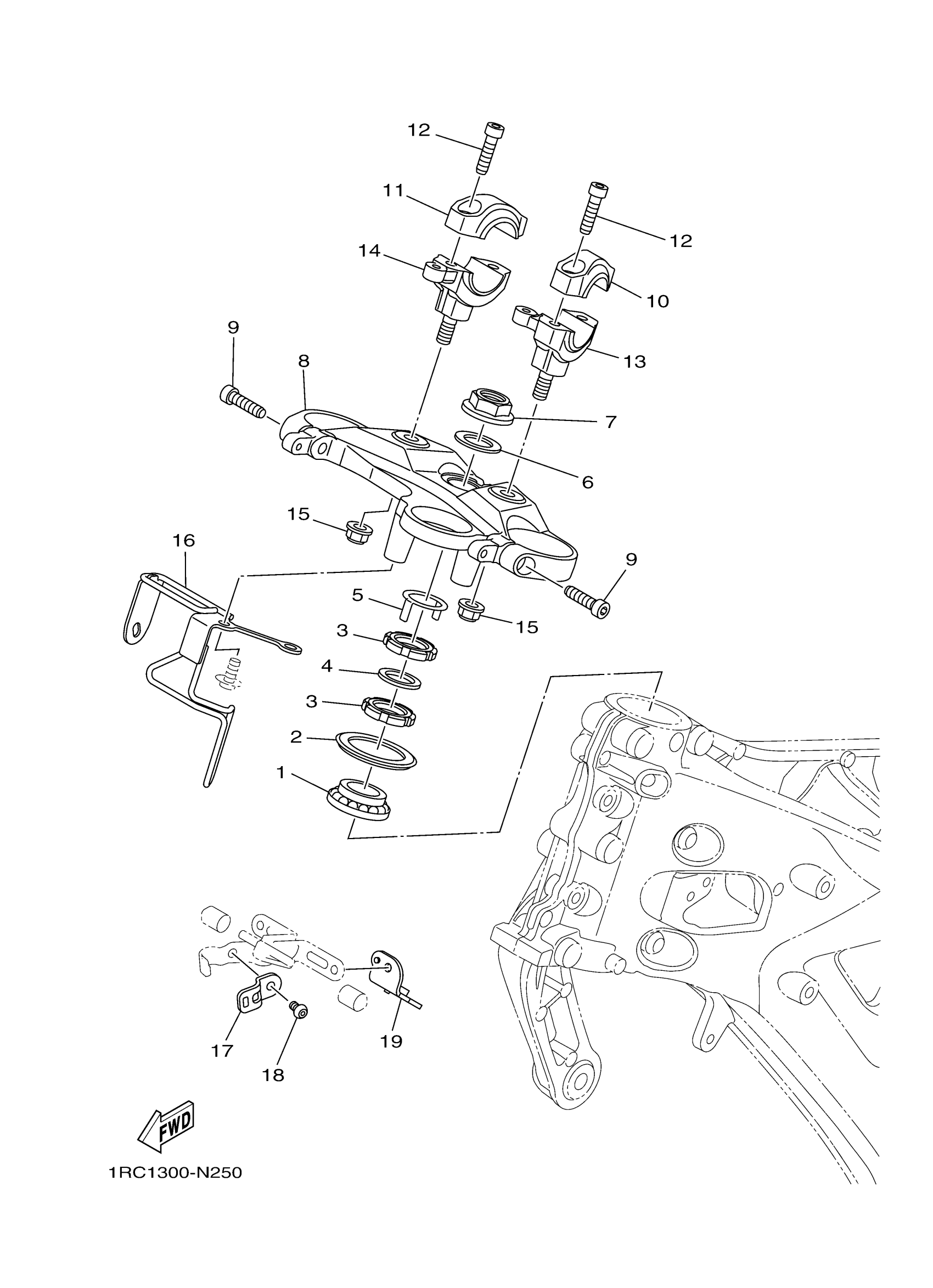

Find the part on the Steering diagram for your 2016 Yamaha FZ09 (FZ09GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha FZ09 (FZ09GL) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(3FV)

93399-99931-00

1
Out of stock

2

COVER, BALL RACE 1

5VX-23415-00-00

1
Out of stock

3

NUT

90179-25004-00

1
Out of stock

4

WASHER, PLATE (26H)

90202-26142-00

1
Out of stock

5

WASHER, SPECIAL

26H-23418-01-00

1
Out of stock

6

WASHER, PLATE

90201-22018-00

1
Out of stock

7

NUT, SPECIAL

1RC-23393-00-00

1
Out of stock

8

CROWN, HANDLE

1RC-23435-10-00

1
Out of stock

9

BOLT,SOCKET

91314-08030-00

1
Out of stock

10

HOLDER, HANDLE UPP

1RC-23441-11-00

1
Out of stock

11

HOLDER, HANDLE UPP

1RC-2344A-11-00

1
Out of stock

12

BOLT,SOCKET

91314-08030-00

1
Out of stock

13

HOLDER 1

1RC-24847-12-00

1
Out of stock

14

HOLDER 2

1RC-24848-12-00

1
Out of stock

15

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

16

GUIDE, CABLE

1RC-23389-00-00

—
Out of stock

17

HOLDER, BRAKE HOSE 2

5SL-25876-00-00

—
Out of stock

18

BOLT, BUTTON HEAD

92017-06012-00

—
Out of stock

19

BRACKET, HORN

1RC-23377-00-00

—
Out of stock
