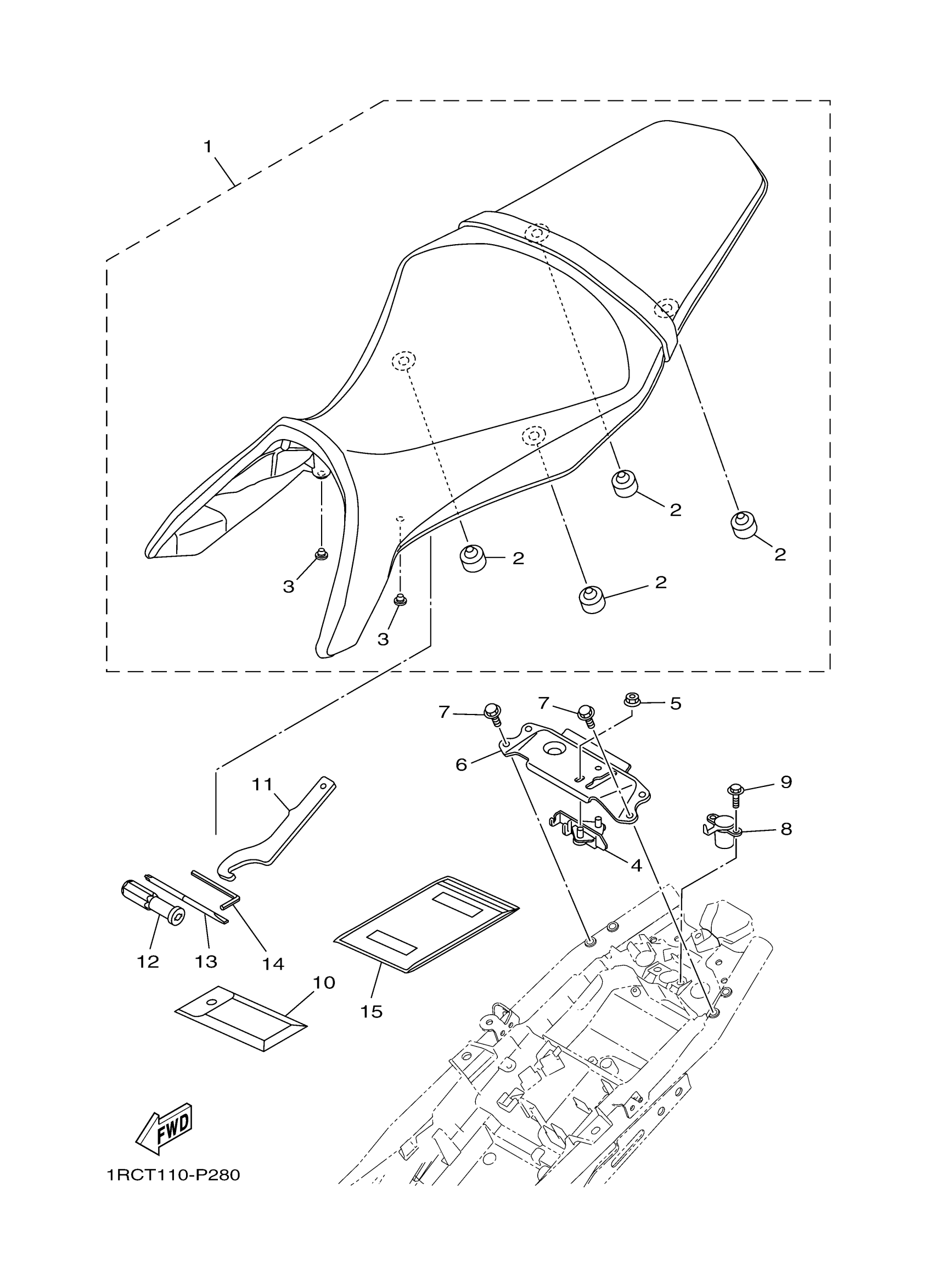

Yamaha FZ09GL (FZ09) B8750 2016 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

1RC-24730-01-00

Unavailable

2

STOPPER, MAIN STAND

4GL-27114-00-00

Unavailable

3

PLUG(7Y6)

90338-07157-00

$5.39

4

SEAT LOCK ASSY

4BP-24780-00-00

$90.53

5

NUT, FLANGE

95702-06500-00

$1.95

6

BRACKET, SEAT LOCK

1RC-2478X-00-00

$16.86

7

BOLT, FLANGE

95022-06016-00

$3.11

8

ROTOR SET

1RC-W2470-00-00

$67.58

9

BOLT, FLANGE

95022-06014-00

$2.46

10

TOOL KIT

1RC-28100-00-00

Unavailable

11

SPANNER, SPECIAL

1RC-28135-00-00

$8.88

12

GRIP, DRIVER

2H7-28151-00-00

$5.55

13

DRIVER

2GV-28152-00-00

$3.68

14

WRENCH, HEXAGON 8

23P-28164-00-00

$2.55

15

POUCH

4KG-28186-11-00

$6.65
