2016 Yamaha FZ09 (FZ09GL) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2016 Yamaha FZ09 (FZ09GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

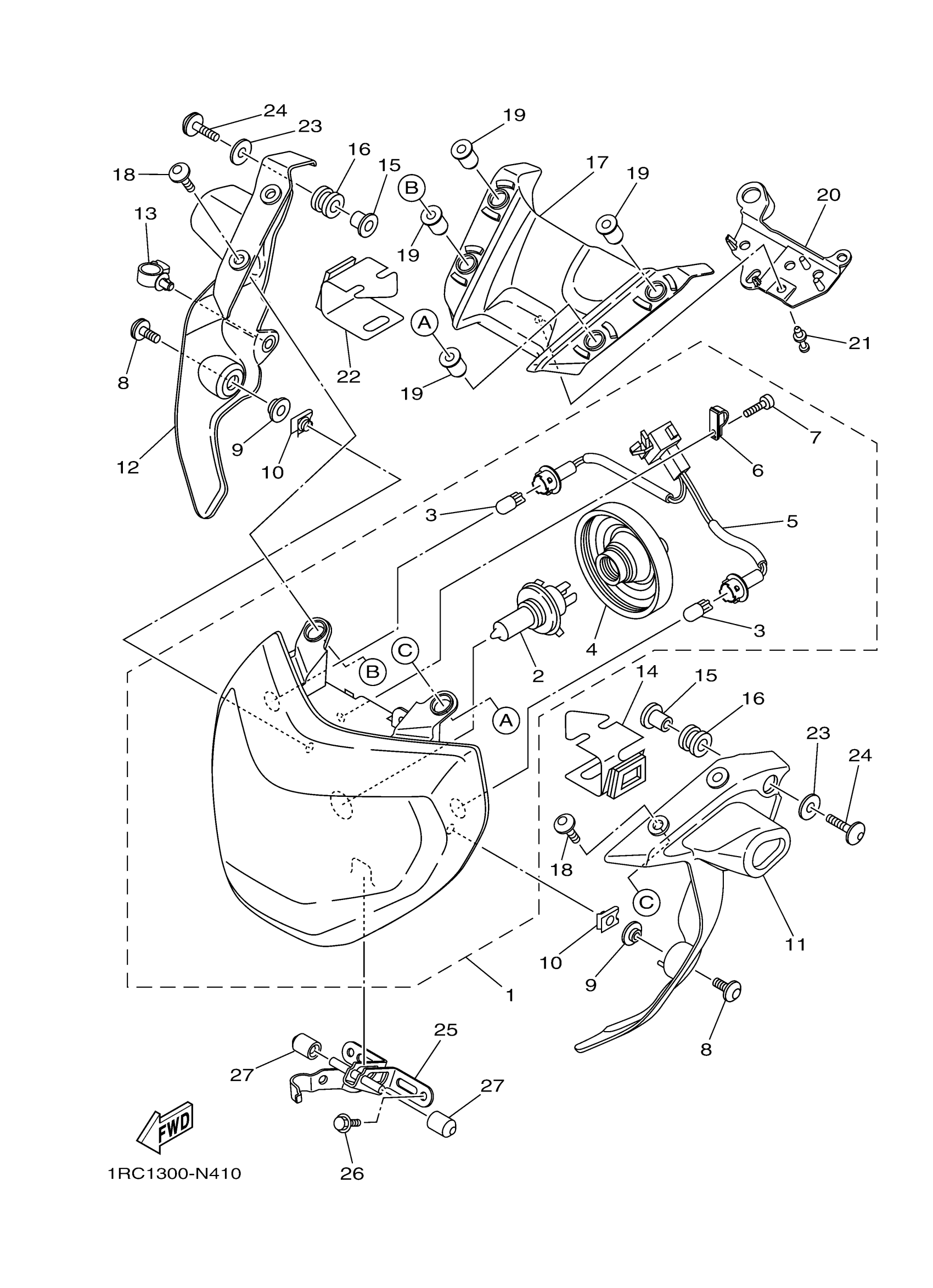

2016 Yamaha FZ09 (FZ09GL) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT ASSY

1RC-84300-00-00

—
Out of stock

2

1

$29.20

In stock

3

BULB (12V-W5W)

1RC-84347-00-00

1

$6.72

In stock

4

COVER, SOCKET

1RC-84397-00-00

—

$11.91

In stock

5

CORD, HEADLIGHT

1RC-84359-00-00

—
Out of stock

6

PLATE, SEAT BASE

1RC-84746-00-00

—

$3.57

In stock

7

SCREW, LENS FITTING

1RC-84724-00-00

—

$2.46

In stock

8

BOLT

90111-06038-00

1

$3.45

In stock

9

COLLAR

90387-06170-00

1

$6.25

In stock

10

NUT, SPRING

90183-060A6-00

1

$4.17

In stock

11

STAY, HEAD LIGHT 1

1RC-2831V-00-P0

—
Out of stock

12

STAY, HEAD LIGHT 2

1RC-2832V-00-P0

—
Out of stock

13

CLAMP

90464-18002-00

1

$6.92

In stock

14

GROMMET

1RC-84152-00-00

1
Out of stock

15

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

16

GROMMET(4TX)

90480-14604-00

—

$7.42

In stock

17

COVER 1

1RC-84369-01-00

—
Out of stock

18

BOLT,HEX. SOCKET BUTTON

90111-06123-00

—

$3.13

In stock

19

NUT

90179-06072-00

—

$5.14

In stock

20

HOLDER

1RC-8431U-01-00

—
Out of stock

21

RIVET

90269-05005-00

1

$2.92

In stock

22

GROMMET

1RC-84154-00-00

—
Out of stock

23

WASHER, PLATE

90201-06095-00

—

$6.31

In stock

24

BOLT,HEX. SOCKET BUTTON

90111-06150-00

—

$2.08

In stock

25

STAY, SETTING

1RC-8431R-00-00

—
Out of stock

26

BOLT, FLANGE

95817-06016-00

—

$1.49

In stock

27

DAMPER

1RC-84527-00-00

—
Out of stock
