2017 Yamaha FZ07 (FZ07HS) Intake Diagram

← All diagrams

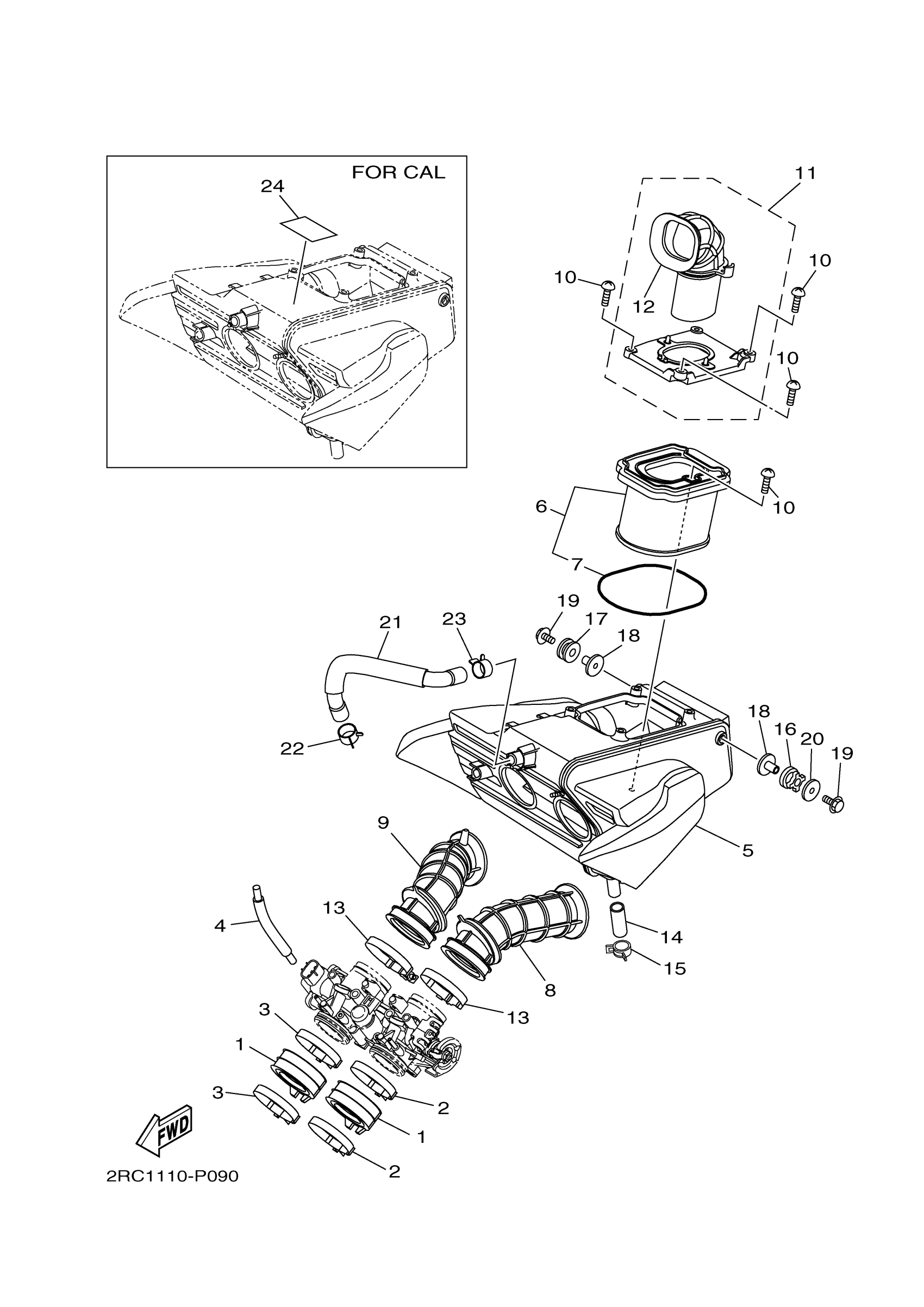

Find the part on the Intake diagram for your 2017 Yamaha FZ07 (FZ07HS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha FZ07 (FZ07HS) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, INTAKE 1

1WS-13635-00-00

—
Out of stock

2

HOSE CLAMP ASSY

90450-56011-00

1
Out of stock

3

HOSE CLAMP ASSY

90450-56012-00

1
Out of stock

4

HOSE, VACUUM SENSI

1WS-13542-00-00

1
Out of stock

5

AIR CLEANER CASE A

1WS-14401-00-00

1
Out of stock

6

ELEMENT ASSY, AIR

1WS-14450-00-00

1
Out of stock

7

SEAL

1WS-14452-00-00

—
Out of stock

8

FUNNEL, AIR

1WS-14469-01-00

1
Out of stock

9

FUNNEL 2

1WS-1446C-01-00

1
Out of stock

10

SCREW, ROUND TAPPING

90160-05013-00

1
Out of stock

11

DUCT ASSY

1WS-14430-11-00

1
Out of stock

12

DUCT

1WS-14437-11-00

1
Out of stock

13

HOSE CLAMP ASSY

90450-56011-00

1
Out of stock

14

PIPE, DRAIN

1WS-1443E-00-00

1
Out of stock

15

CLIP(3YX)

90467-13133-00

1
Out of stock

16

GROMMET

90480-15001-00

—
Out of stock

17

GROMMET

90480-15014-00

—
Out of stock

18

COLLAR

90387-06300-00

—
Out of stock

19

BOLT, FLANGE

95817-06025-00

—
Out of stock

20

WASHER, PLATE(1JK)

90201-064K6-00

—
Out of stock

21

PIPE, BREATHER 1

1WS-11166-00-00

—
Out of stock

22

CLIP(3TB)

90467-17128-00

—
Out of stock

23

CLIP

90467-160A2-00

—
Out of stock

24

PLATE, ROUTING

34B-21684-00-00

—
Out of stock
