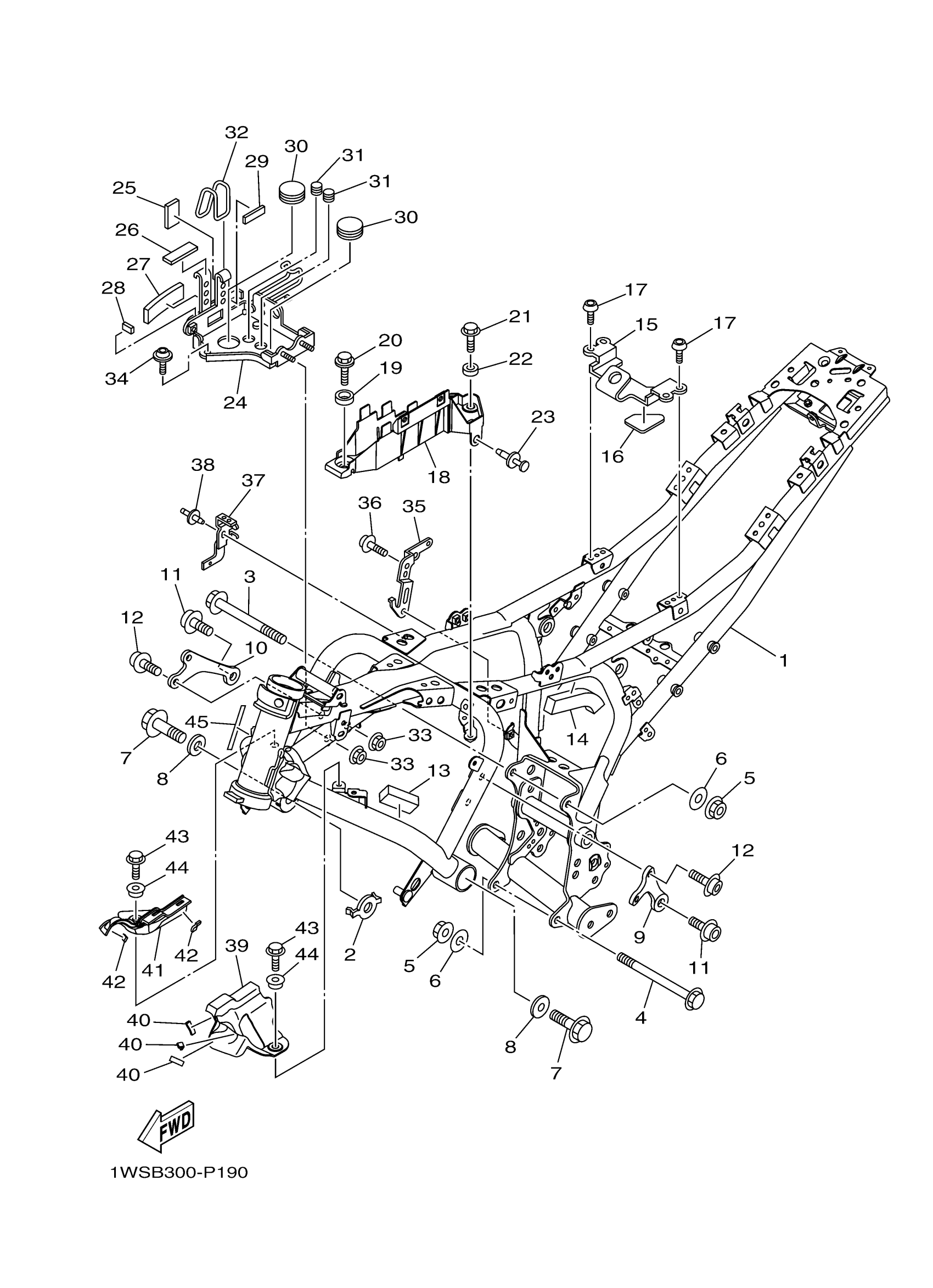

Find the part on the Frame diagram for your 2016 Yamaha FZ07 (FZ07GS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha FZ07 (FZ07GS) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

1WS-21110-11-00

1
Out of stock

2

PLATE 1

1WS-2191B-00-00

1
Out of stock

3

BOLT, FLANGE

90105-10219-00

1
Out of stock

4

BOLT, FLANGE

90105-10349-00

—
Out of stock

5

NUT

90179-10024-00

1
Out of stock

6

WASHER, PLATE

90201-10035-00

1
Out of stock

7

BOLT, FLANGE

90105-12092-00

—
Out of stock

8

WASHER, PLATE

90201-13020-00

1
Out of stock

9

STAY, ENGINE 1

1WS-21315-00-00

—
Out of stock

10

STAY, ENGINE 2

1WS-21316-00-00

—
Out of stock

11

BOLT, HEXAGON SOCK

90110-10044-00

1
Out of stock

12

BOLT, HEXAGON SOCK

90110-08111-00

1
Out of stock

13

DAMPER, PLATE

90520-20004-00

1
Out of stock

14

DAMPER, PLATE

90520-20003-00

1
Out of stock

15

BRACKET, SEAT FITTING

1WS-21946-01-00

—
Out of stock

16

SEAT 1

1WS-2112B-01-00

—
Out of stock

17

BOLT, BUTTON HEAD

92012-06010-00

—
Out of stock

18

COVER 3

1WS-2117N-00-00

—
Out of stock

19

COLLAR

90387-1001B-00

1
Out of stock

20

BOLT, WITH WASHER

90119-06209-00

—
Out of stock

21

BOLT, FLANGE

95817-06012-00

—
Out of stock

22

COLLAR

90387-06106-00

—
Out of stock

23

RIVET

90269-06002-00

—
Out of stock

24

BRACKET

1WS-21158-00-00

—
Out of stock

25

DAMPER, PLATE

90520-01004-00

—
Out of stock

26

DAMPER, SEAT

3UF-24737-00-00

—
Out of stock

27

DAMPER 4

3KJ-15337-00-00

—
Out of stock

28

PLATE, FOOTREST

1HX-27415-00-00

—
Out of stock

29

DAMPER

5DM-28371-00-00

—
Out of stock

30

GROMMET (2A6)

90480-30167-00

—
Out of stock

31

PLUG

90338-15004-00

—
Out of stock

32

BAND, TOOL

4XV-21376-00-00

—
Out of stock

33

NUT, FLANGE

95702-06500-00

—
Out of stock

34

BOLT,HEX. SOCKET BUTTON

90111-06122-00

—
Out of stock

35

BRACKET 8

1WS-2161J-00-00

—
Out of stock

36

BOLT, BUTTON HEAD

92017-06010-00

—
Out of stock

37

BRACKET 2

1WS-2175U-00-00

—
Out of stock

38

RIVET(4PH)

90269-07077-00

—
Out of stock

39

COVER 4

1WS-2117R-00-00

—
Out of stock

40

PLATE, FOOTREST

1HX-27415-00-00

—
Out of stock

41

COVER 5

1WS-2117T-01-00

—
Out of stock

42

PLATE, FOOTREST

1HX-27415-00-00

—
Out of stock

43

BOLT, FLANGE

95817-06012-00

—
Out of stock

44

C0LLAR

90387-062M9-00

—
Out of stock

45

PROTECTOR, FUEL TANK

3HA-24141-00-00

—
Out of stock
