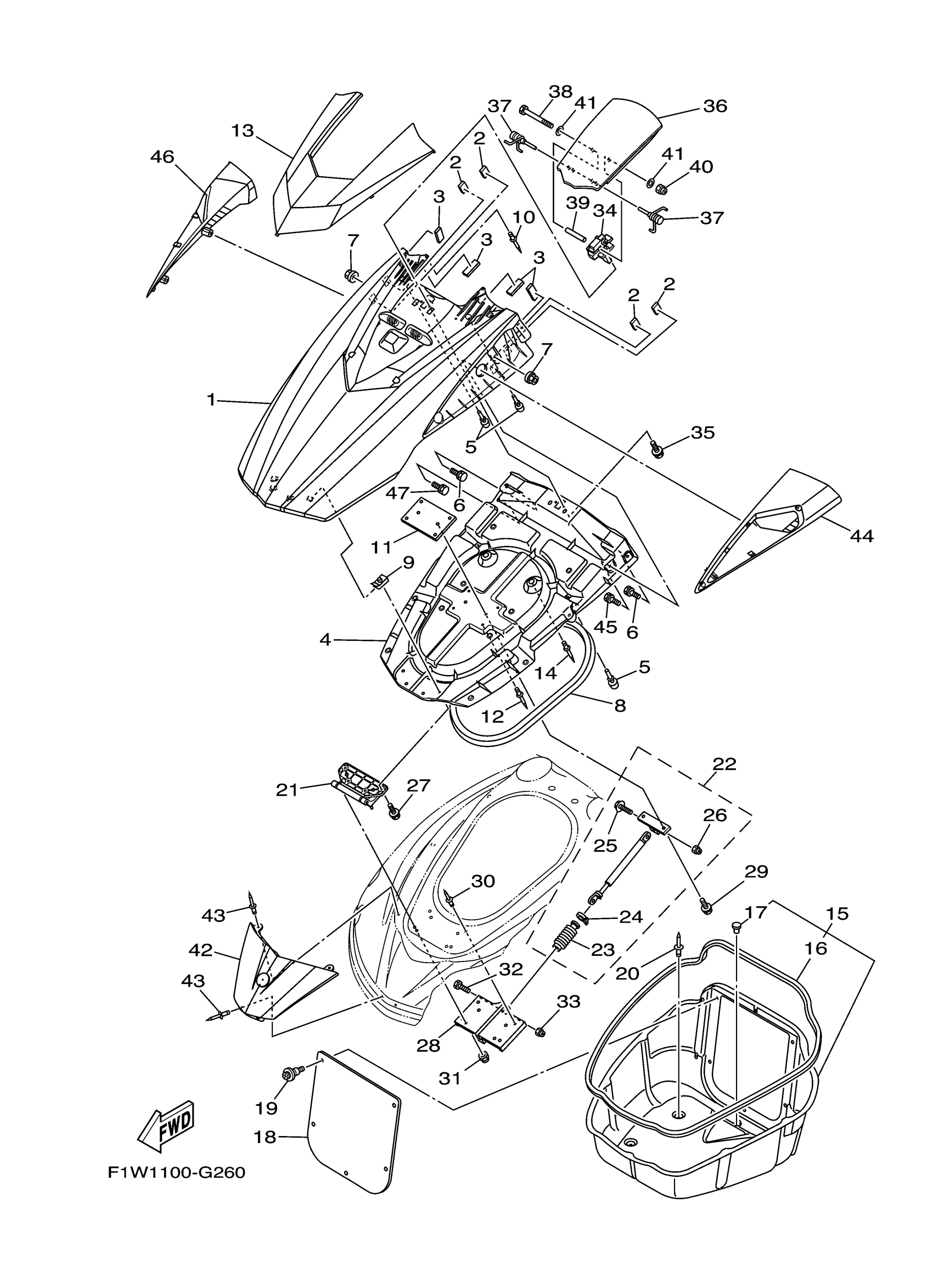

Yamaha FY1800K (FX HO) F2HD 2011 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM

F1W-U517B-60-P2

Unavailable

2

STOPPER, HATCH 2

F1W-U5136-00-00

$1.29

3

. PACKING 3

F1K-U266B-00-00

$1.23

4

COVER,VENTILATOR 1

F1W-U213B-01-00

$131.33

5

. CUSHION, RUBBER

F1W-U3768-01-00

$1.51

6

BOLT, WITH WASHER

90119-06880-00

$3.65

7

NUT, LOCK

F2N-U142L-00-00

$1.00

8

PACKING 1

F1K-U2663-01-00

$26.85

9

NUT, SPRING(GJ3)

90183-06902-00

$8.53

10

RIVET, BLIND

90267-48807-00

$2.22

11

PLATE, HATCH

F1W-U5148-00-00

$15.79

12

RIVET, BLIND

90267-48807-00

$2.22

13

VISOR (BLACK METALLIC G)

F1W-U515N-20-P0

Unavailable

14

RIVET, BLIND

90267-48807-00

$2.22

15

LOCKER,BOW

F1W-U475B-04-00

Unavailable

16

. PACKING 4

F1W-U266C-00-00

Unavailable

17

. PLUG, BLIND

90605-502U1-00

$2.30

18

PLATE, LOKER BOW

F1W-U475F-01-00

$13.63

19

RIVET

90269-08801-00

$1.23

20

RIVET, 1

F3J-U516R-00-00

$2.52

21

HINGE, LID

F1W-U517D-01-00

Unavailable

22

DAMPER ASSY

F2C-6514S-00-00

$250.73

23

. COVER, DAMPER

F1W-6514T-00-00

$23.87

24

BAND

1UA-82591-00-00

Unavailable

25

BOLT

90109-06218-00

$10.43

26

NUT, SELF-LOCKING

95720-06300-00

$1.72

27

BOLT, WITH WASHER

90119-06896-00

$5.23

28

PLATE, HINGE LID

F1W-U518E-02-00

$53.72

29

BOLT, WITH WASHER

90119-06830-00

Unavailable

30

RIVET, BLIND

90267-48020-00

$6.88

31

NUT, NYLON

9572R-06300-00

$2.93

32

BOLT

90109-06218-00

$10.43

33

NUT, NYLON

9572R-06300-00

$2.93

34

LOCK, LID

F1W-6517C-02-00

$122.37

35

BOLT, WITH WASHER (EW3)

90119-05912-00

$3.88

36

VISOR, 2

F1W-U515P-01-00

Unavailable

37

PIN, HINGE

F1W-6517R-00-00

$9.11

38

SHAFT A

F1W-U515H-00-00

$4.40

39

PIPE

F1W-U2693-00-00

$1.27

40

NUT, FLANGE

9572R-05300-00

$1.51

41

WASHER

9299R-05200-00

$4.60

42

COVER, FRONT

F1W-U513M-60-P2

Unavailable

43

RIVET, BLIND

90267-489U6-00

Unavailable

44

MIRROR ASSY. 1

F1W-U590D-A1-00

$119.39

45

BOLT, WITH WASHER

90119-08907-00

$5.17

46

MIRROR ASSY. 2

F1W-U590E-A1-00

Unavailable

47

BOLT, WITH WASHER

90119-08907-00

$5.17
