1995 Yamaha FX-1 (FX700T) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1995 Yamaha FX-1 (FX700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

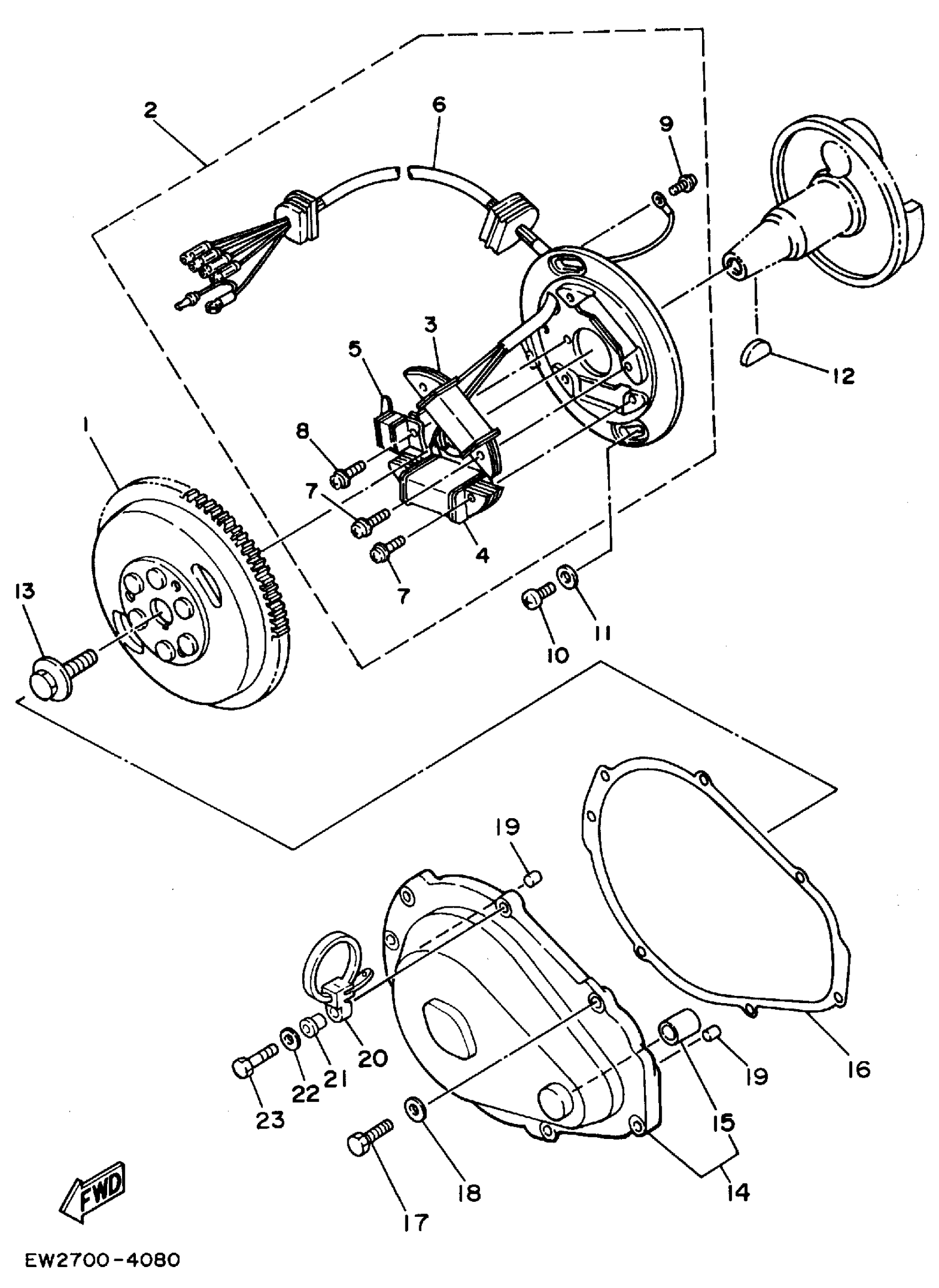

1995 Yamaha FX-1 (FX700T) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSEMBLY

6R7-85550-00-00

1
Out of stock

2

BASE ASSEMBLY

6R8-85560-00-00

1
Out of stock

3

. COIL, CHARGE

6M6-85520-00-00

1
Out of stock

4

. COIL, LIGHTING

6M6-85533-00-00

1
Out of stock

5

. COIL, PULSER

6M6-85580-00-00

1

$171.99

In stock

6

. LEAD WIRE ASSEMBLY

6R8-85515-00-00

1
Out of stock

7

. SCREW, WITH WASHER

97902-05125-00

1

$3.84

In stock

8

. SCREW, WITH WASHER

97902-04122-00

1

$6.46

In stock

9

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

10

SCREW, PAN HEAD

98580-06016-00

1

$2.90

In stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

KEY, WOODRUFF

90280-05001-00

1

$10.68

In stock

13

BOLT

90109-10M44-00

1

$21.37

In stock

14

COVER, FLYWHEEL

6M6-81337-00-4D

1

$186.99

In stock

15

. BUSH, SOLID

90380-12M29-00

1
Out of stock

16

. GASKET, HOLE COVER

6M6-81365-A0-00

1

$33.40

In stock

17

BOLT

90101-06M27-00

1

$2.90

In stock

18

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

19

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

20

CLAMP

90465-12M53-00

1

$5.08

In stock

21

COLLAR

90387-06M05-00

1

$7.12

In stock

22

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

23

BOLT(J52)

97080-06035-00

—

$4.49

In stock
