1994 Yamaha FX-1 (FX700S) Fuel Diagram

← All diagrams

Find the part on the Fuel diagram for your 1994 Yamaha FX-1 (FX700S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

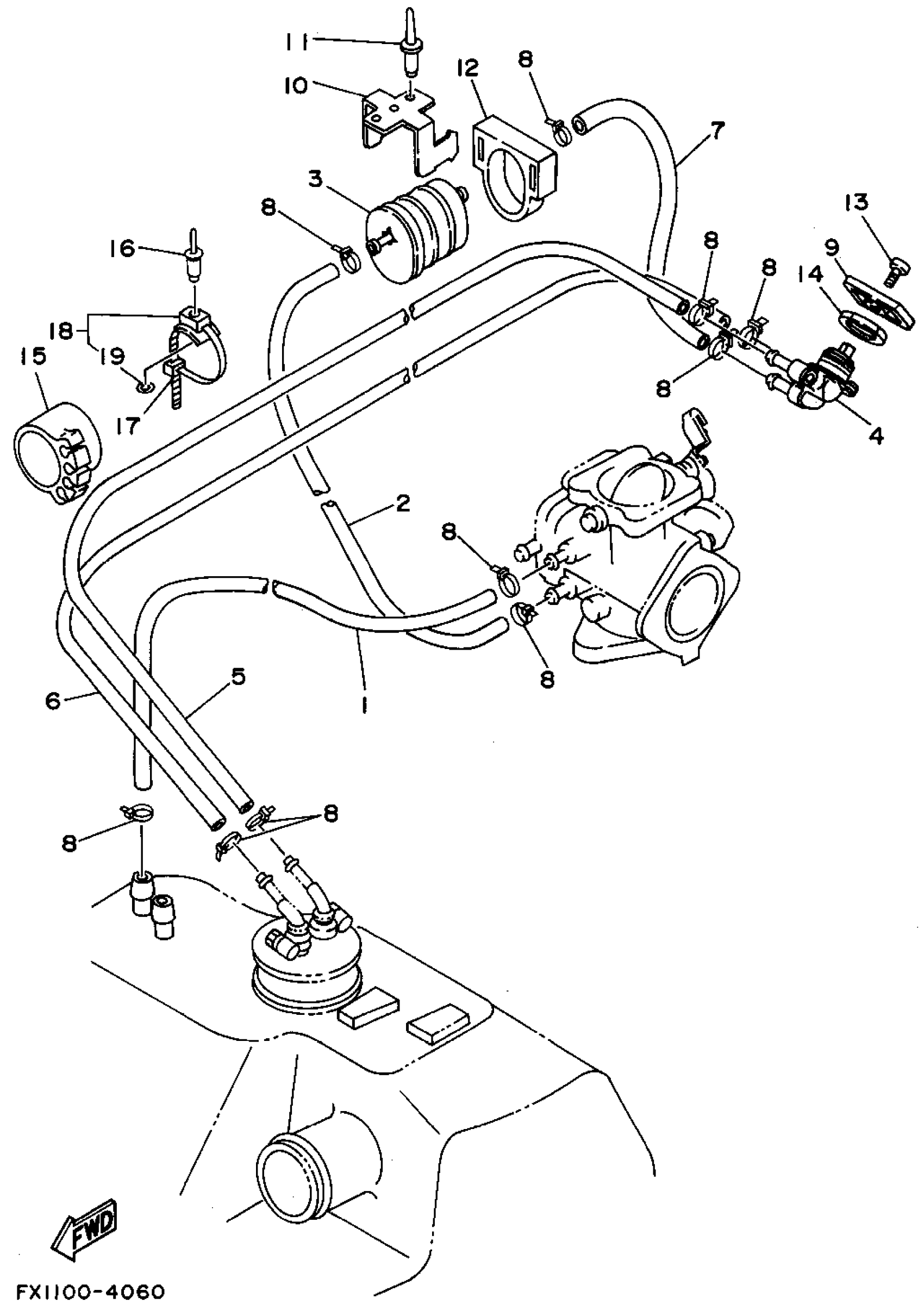

1994 Yamaha FX-1 (FX700S) Fuel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE (L1040)

90445-10MA9-00

1

$58.64

In stock

2

HOSE (L400)

90445-10M43-00

1

$5.88

In stock

3

FILTER ASSY

6K8-24560-21-00

1

$25.83

In stock

4

FUEL COCK ASSY 1

6K8-24500-03-00

1
Out of stock

5

HOSE (L1700)

90445-10M87-00

1
Out of stock

6

HOSE (L1700)

90445-10M87-00

1
Out of stock

7

HOSE (L400)

90445-10M43-00

1

$5.88

In stock

8

CLAMP

90465-10098-00

1

$2.24

In stock

9

LEVER, COCK

6R7-24524-00-00

1

$9.22

In stock

10

BRACKET, FUEL FILTER

FN8-67816-00-00

1

$16.99

In stock

11

RIVET, BLIND

90267-48940-00

1

$10.99

In stock

12

HOLDER

EU0-67817-00-00

1

$17.99

In stock

13

SCREW, BIND

98980-04008-00

1

$3.26

In stock

14

NUT, HEXAGON (1E6)

90170-22187-00

1

$9.83

In stock

15

HOLDER, PIPE 1

EW2-67811-00-00

1
Out of stock

16

RIVET, BLIND

90267-489UE-00

1
Out of stock

17

CLIP (EW2)

90601-20010-00

—

$3.02

In stock

18

CLAMP COMP (EU0)

90600-91736-00

—

$6.68

In stock

19

. WASHER, PLAIN

90201-05925-00

1
Out of stock
