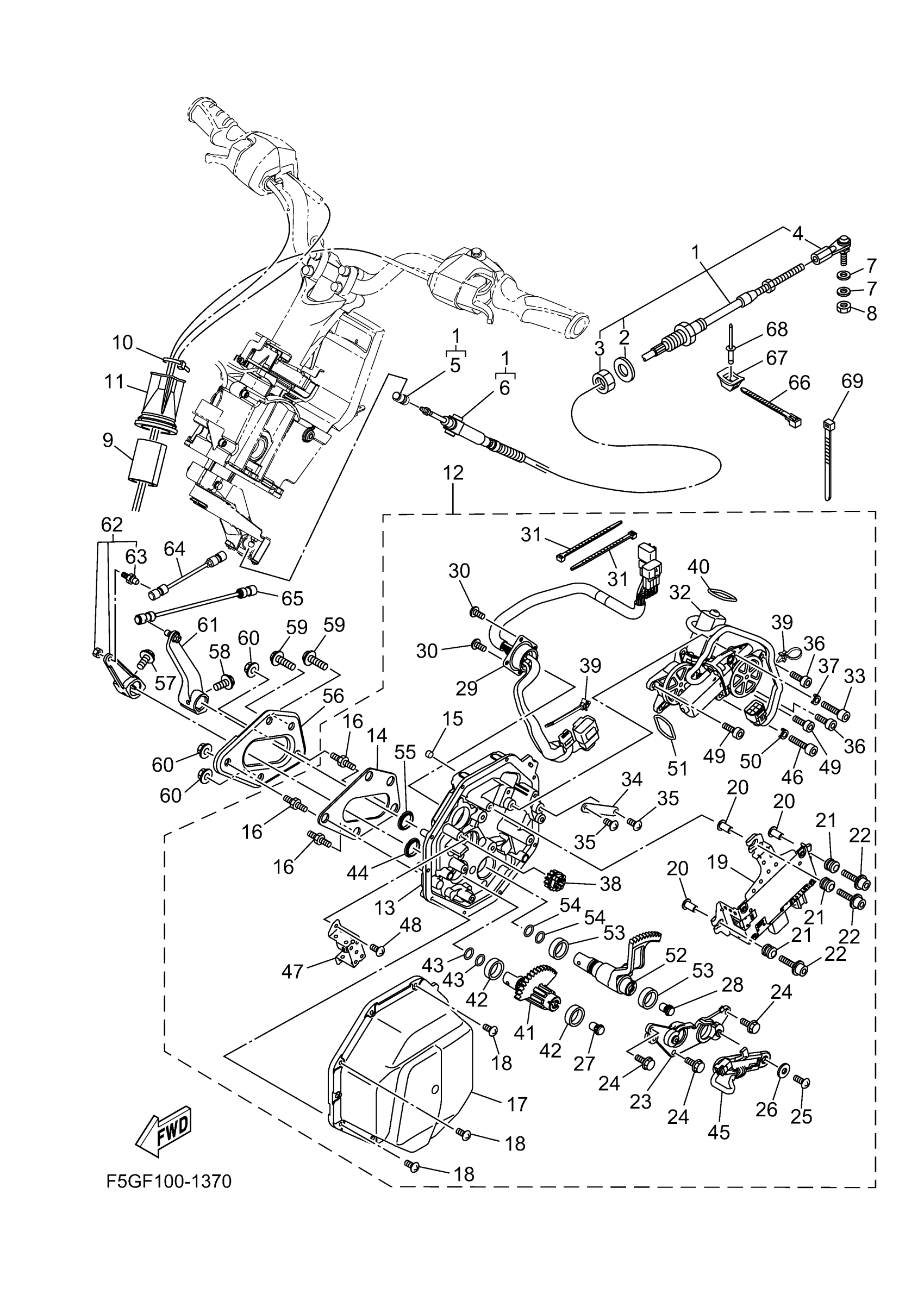

Yamaha FX1900AC (CRUISER HO) F7K8 2026 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F1S-61481-12-00

$284.39

2

. PACKING C

F1B-61438-00-00

$2.72

3

NUT

F1B-6151S-01-00

$14.31

4

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

5

. BALL JOINT ASSY

F2N-61460-00-00

$48.47

6

. NUT, LOCK

F1B-61425-00-00

$15.89

7

WASHER, PLATE

90201-06906-00

$2.80

8

NUT

9538R-06700-00

$1.01

9

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

10

CLAMP

90464-32801-00

$1.23

11

GROMMET

F3J-U822E-01-00

$5.59

12

MOTOR ASSY

F7K-6140B-10-00

Unavailable

13

. HOUSING

F4P-6152K-00-00

$215.14

14

. SEAL

F3J-63262-00-00

$18.49

15

. PLUG

F3J-613D0-00-00

$11.99

16

. BOLT, STUD

F3J-67369-00-00

$6.36

17

. COVER

F3Y-6143J-00-00

$52.99

18

. SCREW

F3Y-68198-00-00

$3.64

19

. CONTROL UNIT

F7K-68197-00-00

$825.74

20

. COLLAR

90387-06119-00

$4.37

21

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

22

. BOLT

F3J-613B4-20-00

$4.55

23

. PLATE

F4P-61256-00-00

$62.11

24

. BOLT, HEXAGON

F3Y-613B3-00-00

$4.55

25

. SCREW

F3J-68198-20-00

$3.64

26

. WASHER, PLAIN

F3J-613C3-10-00

$3.70

27

. MAGNET, SENSOR

F3J-60428-00-00

$25.49

28

. MAGNET, SENSOR

F3J-60428-00-00

$25.49

29

. WIRE HARNESS ASSY

F4P-68270-00-00

$233.32

30

. SCREW

F3J-68198-00-00

$2.95

31

. CLAMP, WIRE

F3J-68273-00-00

$3.18

32

. MOTOR

F4P-68352-00-00

$315.14

33

. BOLT

F3J-613B4-00-00

$4.55

34

. PLATE

F3Y-61348-00-00

$4.55

35

. SCREW

F3J-68198-20-00

$3.64

36

. BOLT

F3J-613B4-10-00

$2.19

37

. SPACER

F3J-61492-00-00

$7.27

38

. GEAR 1

F4P-60211-00-00

$116.65

39

. CLAMP

F4P-68273-00-00

$4.09

40

. O-RING

F4P-613A5-10-00

$4.55

41

SHAFT, 1

F3Y-60221-10-00

$23.67

42

. BUSH

F3Y-61344-00-00

$3.70

43

O-RING

F4P-613A5-00-00

$3.64

44

. BUSH

F4P-61344-00-00

$5.45

45

. SENSOR, ANGLE

F4P-85887-00-00

$168.17

46

. BOLT

F3J-613B4-00-00

$4.55

47

. PLATE

F4P-61348-00-00

$25.74

48

. SCREW

F3J-68198-20-00

$3.64

49

. BOLT

F3J-613B4-10-00

$2.19

50

. SPACER

F3J-61492-00-00

$7.27

51

. O-RING

F4P-613A5-10-00

$4.55

52

. SHAFT, 2

F5G-60222-00-00

$319.68

53

. BUSH

F3Y-61344-00-00

$3.70

54

O-RING

F4P-613A5-00-00

$3.64

55

. BUSH

F4P-61344-00-00

$5.45

56

PLATE

F4P-U8285-00-00

$14.38

57

BOLT, WITH WASHER

90119-06894-00

$1.37

58

BOLT, WITH WASHER

90119-068E7-00

Unavailable

59

BOLT, WITH WASHER

90119-08852-00

$3.79

60

NUT, LOCK

F3Y-U142L-00-00

$2.52

61

TRIM ARM ASSY

F4P-6150E-10-00

$79.92

62

SHIFT ARM ASSY

F3Y-6150F-00-00

$49.42

63

. BOLT, JOINT

6R7-42316-00-00

$34.49

64

ROD ASSY

F3J-6150A-00-00

$56.05

65

ROD ASSY 2

F3J-6150D-00-00

$38.52

66

CLAMP

90464-32801-00

$1.23

67

BASE, CLAMP

F1W-U828M-00-00

$1.23

68

RIVET, BLIND

90267-48802-00

$1.98

69

CLAMP

90464-32801-00

$1.23
