2013 Yamaha FX Nytro XTX (FX10XTDL) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 2013 Yamaha FX Nytro XTX (FX10XTDL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

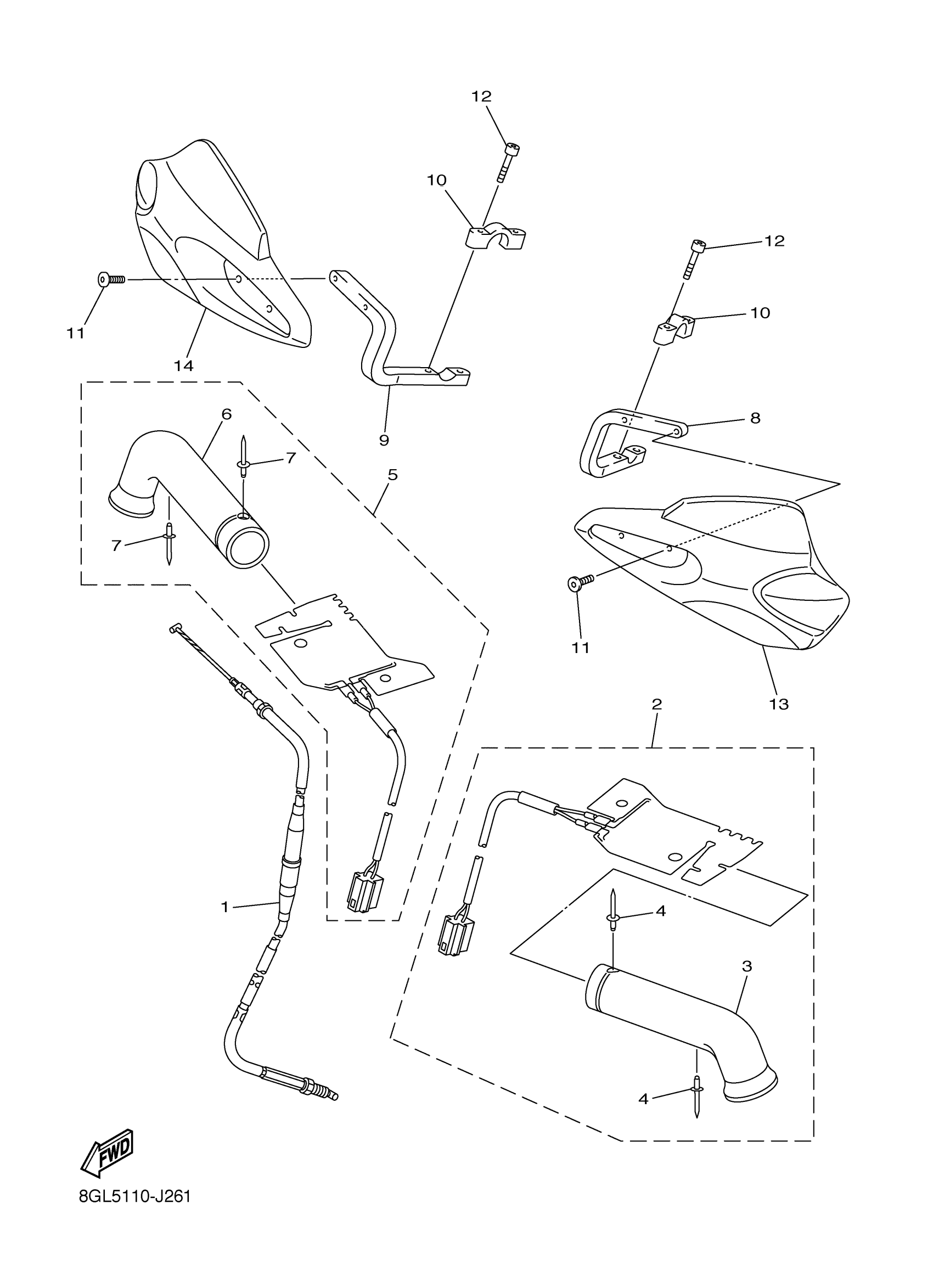

2013 Yamaha FX Nytro XTX (FX10XTDL) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, THROTTLE 1

8GL-26311-00-00

—

$77.26

In stock

2

GRIP WARMER

99999-04170-00

1

$110.86

In stock

3

GRIP

8HR-26241-01-00

1

$23.48

In stock

4

RIVET (856)

90267-48014-00

1
Out of stock

5

GRIP WARMER

99999-04171-00

1

$147.96

In stock

6

GRIP

8HR-26241-01-00

1

$23.48

In stock

7

RIVET (856)

90267-48014-00

1
Out of stock

8

BRACKET 3

8GL-2612L-01-00

1

$58.91

In stock

9

BRACKET 4

8GL-2612M-01-00

1

$62.72

In stock

10

BRKT 2

8GL-2612K-00-00

1

$17.17

In stock

11

BOLT(3XP)

90109-065F3-00

1

$6.74

In stock

12

BOLT

91312-05030-00

1

$2.92

In stock

13

GUARD, BRUSH 1

8GL-F6141-30-00

1

$6.91

In stock

14

GUARD, BRUSH 2

8GL-F6142-30-00

1

$6.23

In stock
