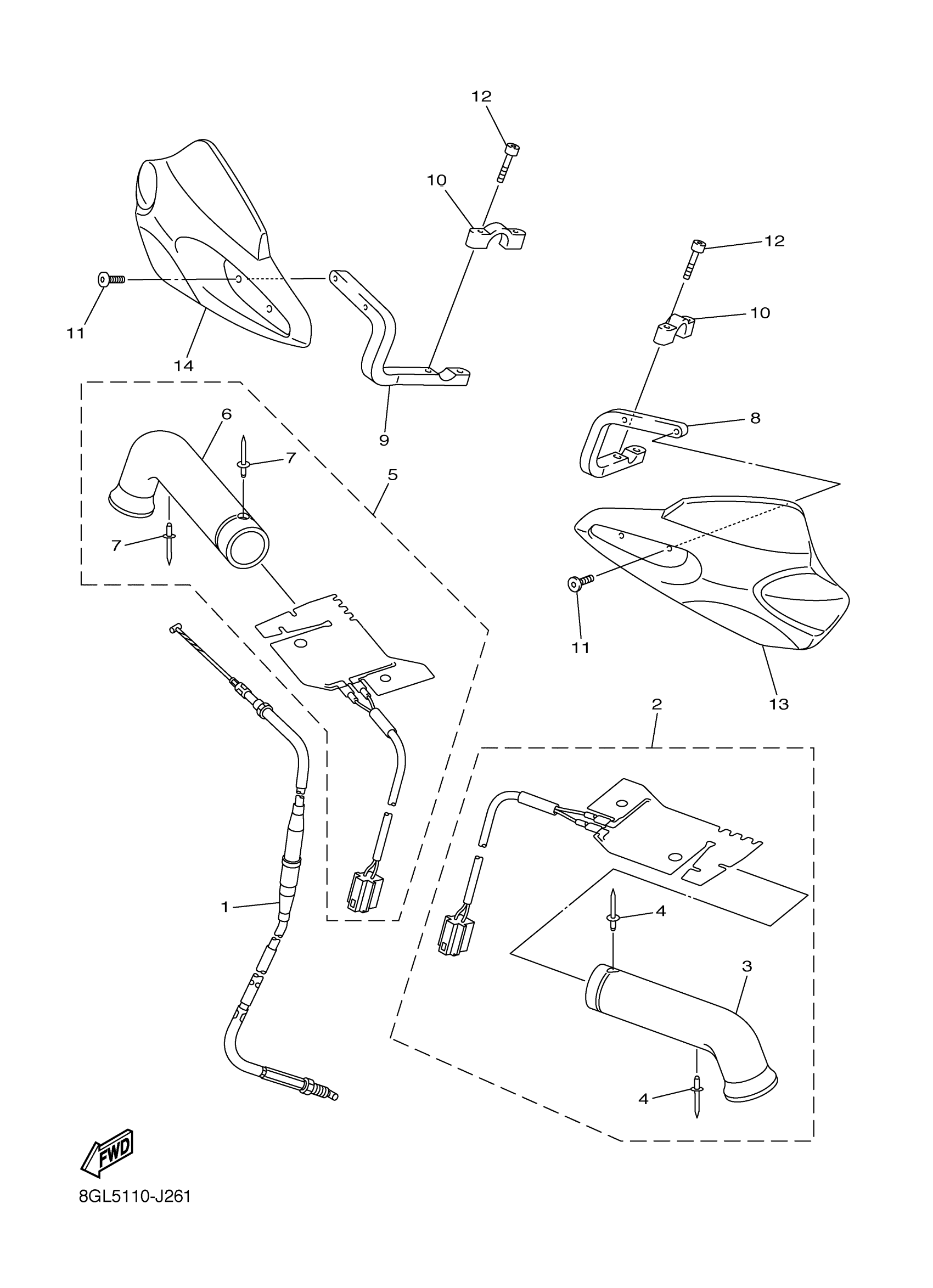

Yamaha FX10RTRZO (FX NYTRO RTX) 8HB70 2010 CONTROL CABLE Diagram

#

Description

Price

1

CABLE, THROTTLE 1

8GL-26311-00-00

Unavailable

2

GRIP WARMER

99999-04170-00

$109.18

3

GRIP

8HR-26241-01-00

$23.12

4

RIVET (856)

90267-48014-00

$2.90

5

GRIP WARMER

99999-04171-00

$141.98

6

GRIP

8HR-26241-01-00

$23.12

7

RIVET (856)

90267-48014-00

$2.90

8

BRACKET 3

8GL-2612L-01-00

$58.02

9

BRACKET 4

8GL-2612M-01-00

$61.77

10

BRKT 2

8GL-2612K-00-00

$16.91

11

BOLT(3XP)

90109-065F3-00

$6.28

12

BOLT

91312-05030-00

$2.80

13

GUARD, BRUSH 1

8GL-F6141-30-00

$6.80

14

GUARD, BRUSH 2

8GL-F6142-30-00

$6.14
