2014 Yamaha FX Nytro (FX10EB) Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 2014 Yamaha FX Nytro (FX10EB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

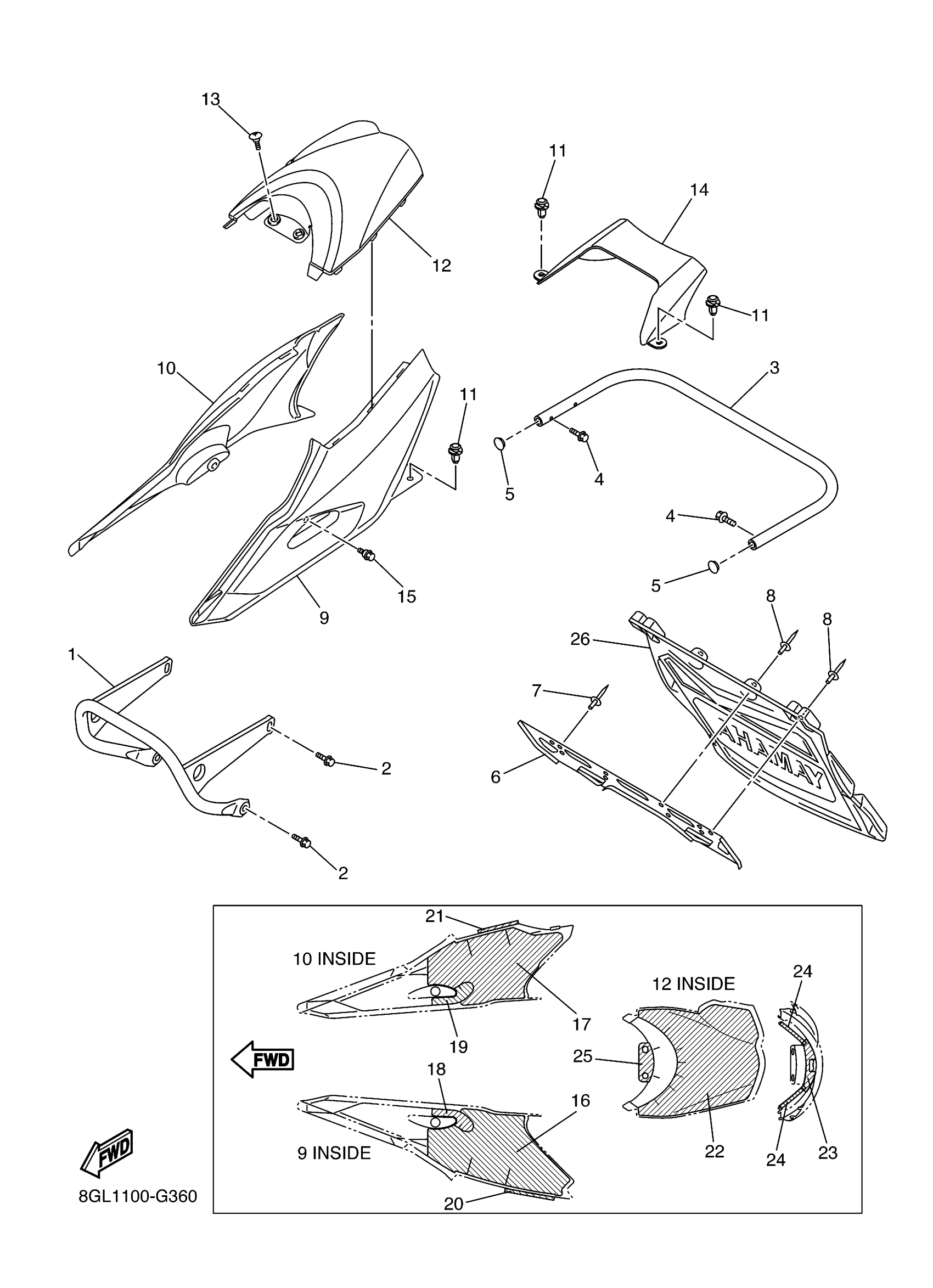

2014 Yamaha FX Nytro (FX10EB) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8JH-77511-00-00

1
Out of stock

2

BOLT, FLANGE

95812-08020-00

1
Out of stock

3

BUMPER, REAR 1

8HK-77541-00-00

—
Out of stock

4

BOLT, FLANGE

95812-08020-00

1
Out of stock

5

PLUG (7Y6)

90338-21145-00

1
Out of stock

6

STOPPER, FLAP

8GL-77596-00-00

—
Out of stock

7

RIVET, BLIND

90267-47195-00

1
Out of stock

8

RIVET, BLIND

90267-47200-00

1
Out of stock

9

COVER, SIDE 3

8GL-21731-00-00

—
Out of stock

10

COVER, SIDE 4

8GL-21741-00-00

—
Out of stock

11

RIVET

90269-08006-00

1
Out of stock

12

COVER, TAIL

8GL-24756-00-00

—
Out of stock

13

SCREW, BINDING

90154-06009-00

1
Out of stock

14

COVER, TAILLIGHT

8GL-84516-00-00

—
Out of stock

15

BOLT

90109-06174-00

1
Out of stock

16

PROTECTOR 1

8GL-77551-00-00

—
Out of stock

17

PROTECTOR 2

8GL-77552-00-00

—
Out of stock

18

PROTECTOR 3

8GL-77553-00-00

—
Out of stock

19

PROTECTOR 4

8GL-77554-00-00

—
Out of stock

20

PROTECTOR 5

8GL-77555-00-00

—
Out of stock

21

PROTECTOR 5

8GL-77555-10-00

—
Out of stock

22

PROTECTOR 6

8GL-77556-00-00

—
Out of stock

23

PROTECTOR 7

8GL-77557-00-00

—
Out of stock

24

TAPE 1

8GL-7717E-00-00

—
Out of stock

25

LINING, SHROUD 1

8GL-77261-00-00

—
Out of stock

26

FLAP

8GT-K7595-00-00

1
Out of stock
