2012 Yamaha FX Nytro (FX10BL) Intake 2 Diagram

← All diagrams

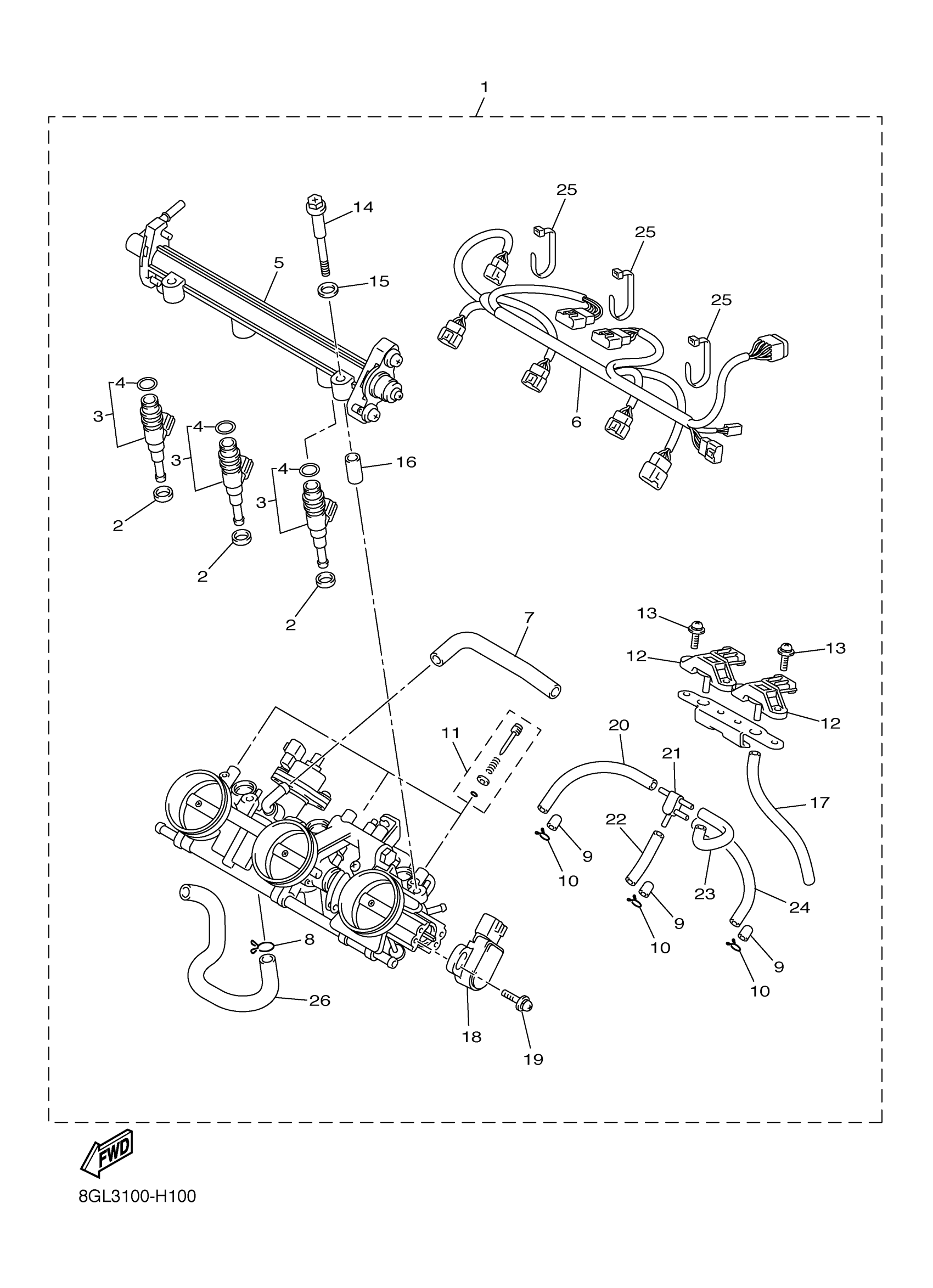

Find the part on the Intake 2 diagram for your 2012 Yamaha FX Nytro (FX10BL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha FX Nytro (FX10BL) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

8GL-13750-10-00

—

$1,675.99

In stock

2

GASKET, MANIFOLD

8FP-13556-00-00

1

$12.27

In stock

3

INJECTOR ASSY

8GC-13761-00-00

1

$254.51

In stock

4

O-RING

8GC-13769-00-00

1

$13.52

In stock

5

PIPE INLET ASSEMBLY

8GL-13930-00-00

—

$229.91

In stock

6

EXTENSION, WIRE HARNESS

8GL-82386-01-00

1

$204.46

In stock

7

HOSE, AIR

8GL-13895-00-00

—

$23.22

In stock

8

CLIP

90467-150A2-00

1

$6.25

In stock

9

CAP

895-14169-00-00

1

$4.02

In stock

10

CLIP, PIPE

8A7-14139-00-00

1

$6.80

In stock

11

ADJUST SCREW SET

8GL-14503-00-00

—

$13.66

In stock

12

SENSOR, PRESSURE

2C0-82380-10-00

1
Out of stock

13

SCREW

8GL-14592-00-00

1

$3.91

In stock

14

BOLT 1

8GL-13573-00-00

1

$11.66

In stock

15

WASHER

8GL-13571-00-00

1

$3.37

In stock

16

COLLAR

8GL-14534-00-00

—

$8.31

In stock

17

PIPE

5PW-14349-00-00

—
Out of stock

18

THROTTLE SENSOR AS

8GL-85885-01-00

—

$76.17

In stock

19

SCREW

8CC-14216-10-00

—

$7.12

In stock

20

HOSE

5JW-14987-00-00

—

$14.80

In stock

21

CONNECTOR

5PW-1410F-00-00

—
Out of stock

22

PIPE

8FP-14349-30-00

—

$4.15

In stock

23

HOSE, AIR 2

8GL-13892-00-00

—

$27.42

In stock

24

HOSE, AIR 3

8GL-13893-00-00

—

$6.31

In stock

25

CLIP

4KM-14137-00-00

—

$5.26

In stock

26

HOSE 1

8GL-13545-00-00

—

$20.40

In stock
