2012 Yamaha FX Nytro (FX10BL) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 2012 Yamaha FX Nytro (FX10BL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

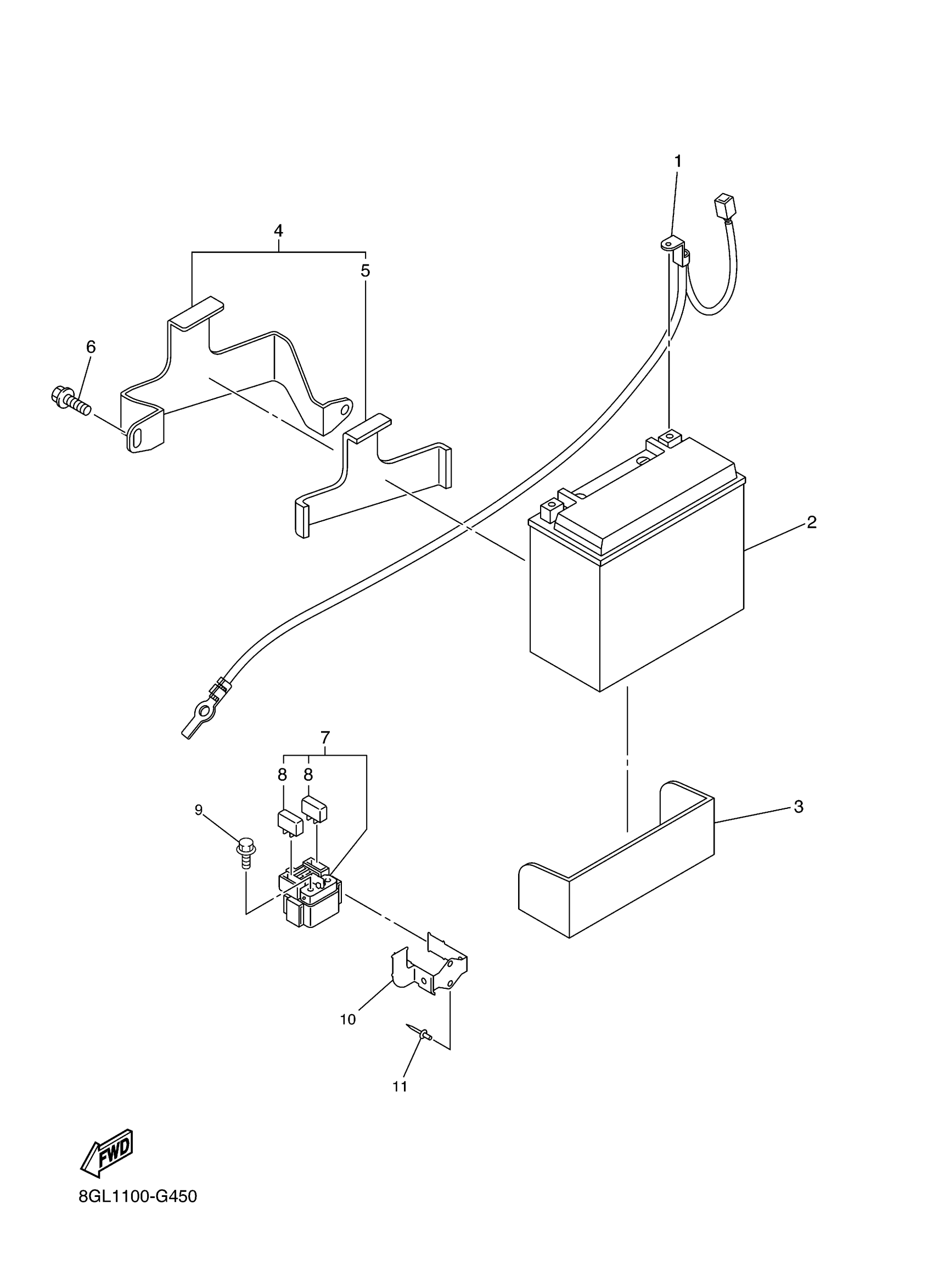

2012 Yamaha FX Nytro (FX10BL) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRE, MINUS LEAD

8GL-82116-00-00

—

$39.52

In stock

2

1

$165.99

In stock

3

SEAT, BATTERY

8GL-82122-00-00

—

$14.65

In stock

4

BRACKET, BATTERY

8GL-2199G-00-00

1

$118.97

In stock

5

DAMPER

8GL-82176-00-00

—

$4.83

In stock

6

BOLT, FLANGE

95822-08014-00

1

$6.68

In stock

7

STARTER RELAY ASSY

8GL-81940-00-00

1

$107.09

In stock

8

FUSE (10A)

42X-82151-00-00

1

$2.16

In stock

9

BOLT, FLANGE

95022-06008-00

1

$6.26

In stock

10

STAY, RELAY

8GL-81953-01-00

—
Out of stock

11

RIVET, BLIND

90267-47195-00

1

$3.33

In stock
