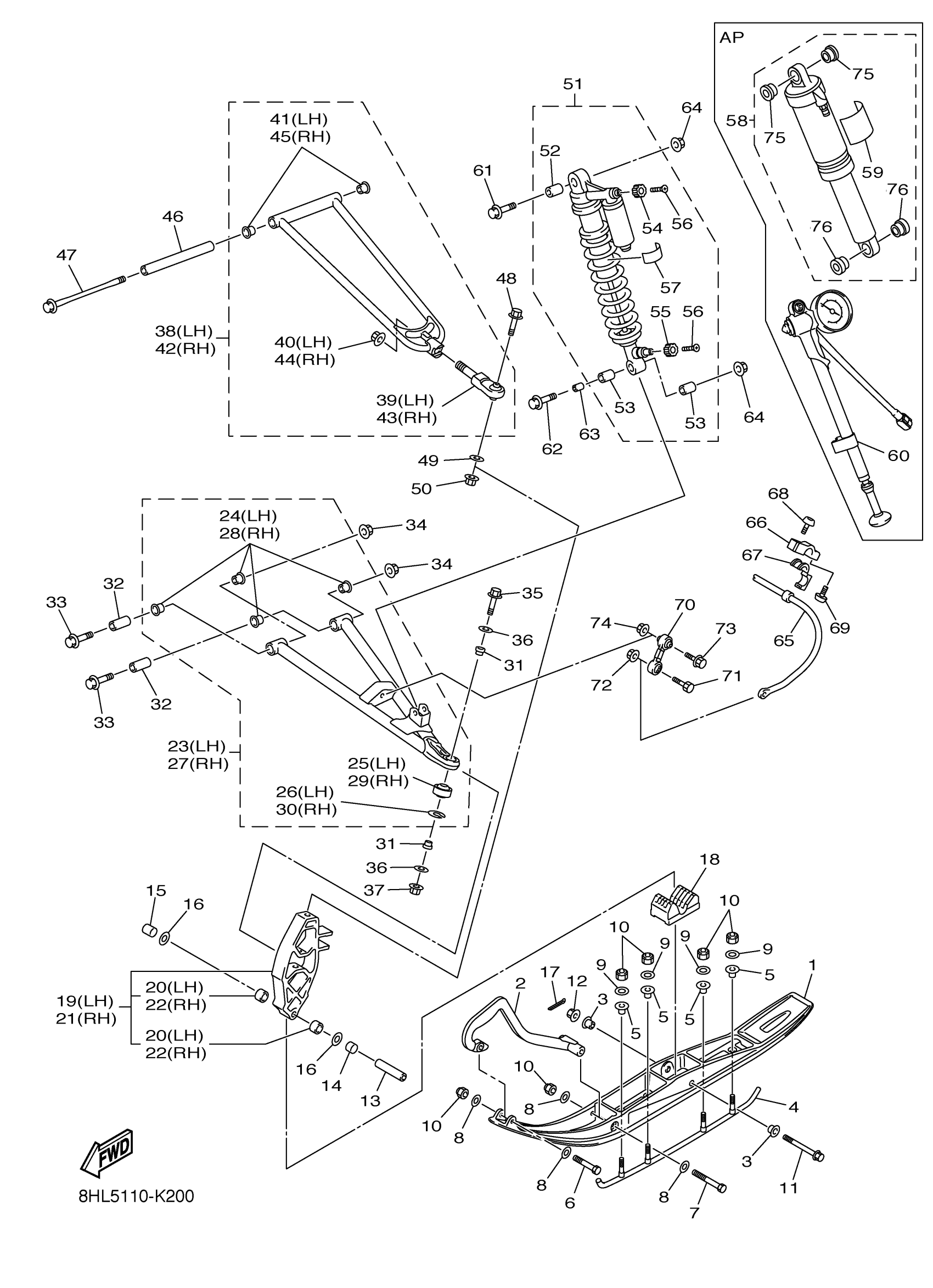

Find the part on the Ski diagram for your 2011 Yamaha FX Nytro (FX10AW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Yamaha FX Nytro (FX10AW) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1, BLACK

8EX-23711-00-BK

1
Out of stock

2

RED 8DM HANDLE PLASTIC

8DM-23712-00-RD

1
Out of stock

3

. COLLAR 1

8EX-F3754-00-00

1
Out of stock

4

RUNNER 1

8GK-F3731-00-00

1
Out of stock

5

BUSH, SKI 1

8EK-F3751-00-00

1
Out of stock

6

BOLT, HEXAGON

97017-08055-00

1
Out of stock

7

BOLT, HEXAGON

97027-08100-00

1
Out of stock

8

WASHER, PLATE (3L7)

90201-08784-00

1
Out of stock

9

WASHER, PLATE(3XP)

90201-086P8-00

1
Out of stock

10

NUT, NYLON

95717-08300-00

1
Out of stock

11

BOLT, FLANGE

90105-10070-00

1
Out of stock

12

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

13

COLLAR

90387-1012H-00

1
Out of stock

14

COLLAR

90387-16017-00

1
Out of stock

15

COLLAR

90387-16018-00

1
Out of stock

16

WASHER, PLATE

90201-16022-00

—
Out of stock

17

PIN, COTTER

91490-20025-00

—
Out of stock

18

STOPPER 1

8HL-23743-00-00

—
Out of stock

19

STEERING KNUCKLE ASSY (LEFT)

8HK-23501-00-00

—
Out of stock

20

BUSH, BIMETAL FORMED

90384-16N51-00

—
Out of stock

21

STEERING KNUCKLE ASSY (RIGHT)

8HK-23502-00-00

—
Out of stock

22

BUSH, BIMETAL FORMED

90384-16N51-00

—
Out of stock

23

FRONT LOWER ARM COMP. (LEFT)

8HK-23570-10-P0

—
Out of stock

24

BUSH, SOLID

90381-18N51-00

—
Out of stock

25

BALL JOINT 2

8HK-23579-00-00

—
Out of stock

26

CIRCLIP (IR)(93450-35015 SUPER

99009-35700-00

—
Out of stock

27

FRONT LOWER ARM COMP. (RIGHT)

8HK-23580-10-P0

—
Out of stock

28

BUSH, SOLID

90381-18N51-00

—
Out of stock

29

BALL JOINT 2

8HK-23579-00-00

—
Out of stock

30

CIRCLIP (IR)(93450-35015 SUPER

99009-35700-00

—
Out of stock

31

COLLAR, 1

8HK-23754-00-00

—
Out of stock

32

COLLAR

90387-10065-00

—
Out of stock

33

BOLT, FLANGE

90105-10211-00

—
Out of stock

34

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

35

BOLT, FLANGE

90105-10318-00

—
Out of stock

36

WASHER, PLATE

90201-10052-00

—
Out of stock

37

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

38

FRONT UPPER ARM COMP. (LEFT)

8HK-23540-10-P0

—
Out of stock

39

BALL JOINT 1

8GK-23549-00-00

—
Out of stock

40

NUT, U FLANGE

95602-14200-00

—
Out of stock

41

BUSH, SOLID

90381-18N51-00

—
Out of stock

42

FRONT UPPER ARM COMP. (RIGHT)

8HK-23550-10-P0

—
Out of stock

43

BALL JOINT 1

8GK-23549-00-00

—
Out of stock

44

NUT, U FLANGE

95602-14200-00

—
Out of stock

45

BUSH, SOLID

90381-18N51-00

—
Out of stock

46

COLLAR 1

8HK-23373-00-00

—
Out of stock

47

BOLT, FLANGE

90105-10213-00

—
Out of stock

48

BOLT

91312-10045-00

—
Out of stock

49

WASHER, PLATE

90201-10052-00

—
Out of stock

50

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

51

ABSORBER ASSY 1

8GL-2376A-00-00

—
Out of stock

52

DAMPER, BUSH B

8FA-2331R-00-00

—
Out of stock

53

BUSH, BIMETAL FORMED

90384-15N51-00

—
Out of stock

54

. KNOB (COMP)

5EA-22464-00-00

1
Out of stock

55

KNOB (TEN)

5JW-2319W-00-00

—
Out of stock

56

SCREW, OVAL HEAD

98680-03008-00

—
Out of stock

57

LABEL, WARNING

4AA-22259-60-00

—
Out of stock

58

ABSORBER ASSY 1

8HB-2376A-00-00

1
Out of stock

59

LABEL,WARNING

8GT-F2259-00-00

1
Out of stock

60

FOX AIR PUMP

8FP-23703-FS-00

1
Out of stock

61

BOLT, FLANGE

90105-10122-00

—
Out of stock

62

BOLT, FLANGE

90105-10209-00

—
Out of stock

63

COLLAR

90387-10N59-00

—
Out of stock

64

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

65

BAR, STABILIZER FRONT

8GN-2386E-10-00

—
Out of stock

66

HOLDER, STABILIZER FRONT

8GL-2386C-00-00

—
Out of stock

67

BUSH, STABILIZER FRONT

8GN-2386G-10-00

—
Out of stock

68

BOLT, BUTTON HEAD

92012-08030-00

—
Out of stock

69

BOLT, BUTTON HEAD

92012-08016-00

—
Out of stock

70

JOINT, STABILIZER 1

8GN-2385L-10-00

—
Out of stock

71

BOLT(6TA)

97017-10035-00

—
Out of stock

72

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

73

BOLT, FLANGE

95817-08040-00

—
Out of stock

74

NUT, SELF-LOCKING

95602-08200-00

—
Out of stock

75

BUSH

8HR-2376B-09-00

—
Out of stock

76

BUSH

8HR-2376B-19-00

—
Out of stock
