2011 Yamaha FX Nytro (FX10AW) Engine Bracket Diagram

← All diagrams

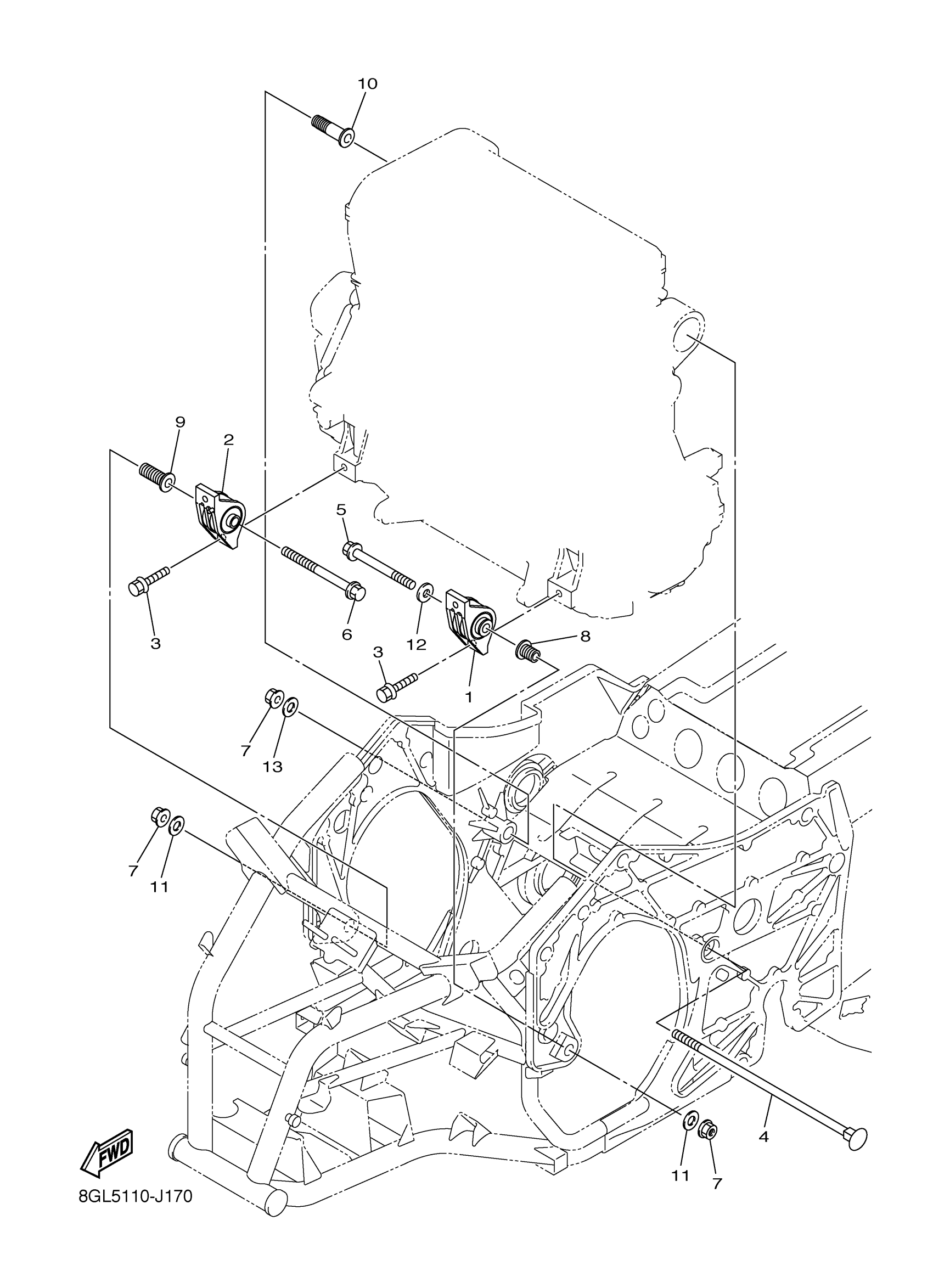

Find the part on the Engine Bracket diagram for your 2011 Yamaha FX Nytro (FX10AW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Yamaha FX Nytro (FX10AW) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE BRACKET COMP.

8GL-21410-00-00

—

$65.42

In stock

2

ENGINE BRACKET COMP. 2

8ES-21420-00-00

—

$67.03

In stock

3

BOLT, FLANGE

95812-08030-00

1

$3.25

In stock

4

BOLT, ENGINE MOUNT

8FA-21481-02-00

—

$51.09

In stock

5

BOLT, FLANGE

95817-12100-00

1

$3.02

In stock

6

BOLT, FLANGE

95812-12140-00

—

$10.31

In stock

7

Nut

90179-12004-00

1

$5.23

In stock

8

BOLT, ENGINE ADJUSTING

8FG-21495-00-00

—

$24.86

In stock

9

BOLT, ENGINE ADJUSTING

8GL-21495-00-00

—

$48.88

In stock

10

BOLT

8ES-2149C-00-00

—

$32.60

In stock

11

WASHER, PLATE(8CJ)

90201-120T5-00

1

$4.91

In stock

12

WASHER (856)

90201-12317-00

—

$4.15

In stock

13

WASHER, PLATE (4N0)

90201-126A7-00

1

$6.28

In stock
