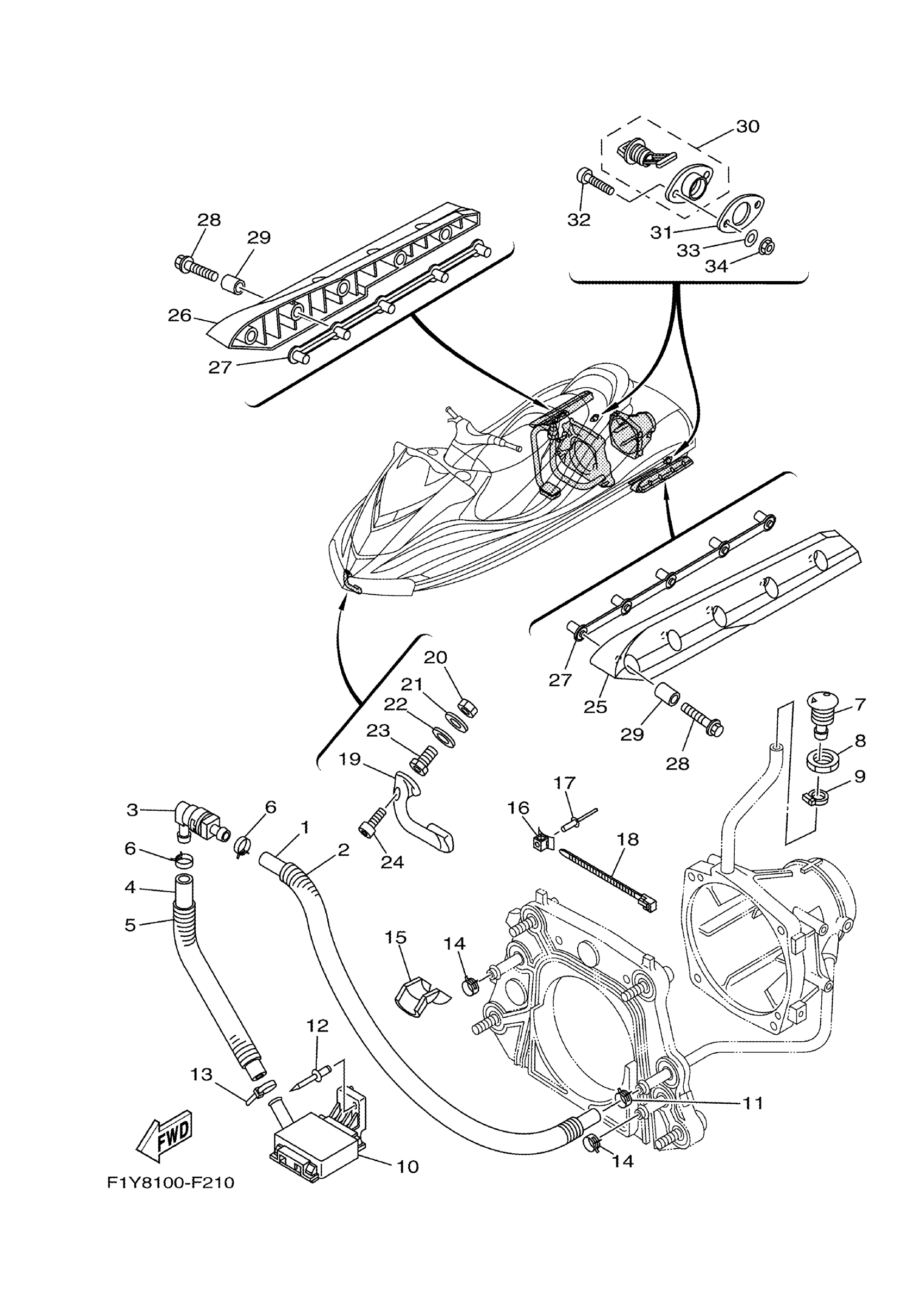

Yamaha FX1000F (WaveRunner FX) F1Y8 2007 HULL DECK Diagram

#

Description
Price

1

HOSE (L860)

90445-20804-00

$12.86

2

HOSE

90446-27M73-00

$18.83

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

HOSE (L500)

90445-20800-00

$12.86

5

HOSE(63M)

90446-27M55-00

$14.36

6

CLIP

90467-18804-00

$2.72

7

SPOUT

FN8-6269B-00-00

$22.49

8

NUT

EU0-61652-00-00

$11.48

9

BAND, HOSE 18

90601-118UF-00

$2.07

10

STRAINER, BILGE

F1B-U761D-02-00

$5.15

11

CLIP

90467-21800-00

$2.87

12

RIVET, BLIND

90267-489U8-00

$0.99

13

BAND

90601-200U1-00

$2.77

14

CLIP

90467-200A0-00

$7.40

15

TRIM, 1

F1S-U828H-01-00

$6.52

16

CLAMP COMP (EU0)

90600-91736-00

Unavailable

17

RIVET, BLIND

90267-48802-00

$1.98

18

CLAMP

90464-32801-00

$1.23

19

BOWEYE 1

F0X-61624-00-00

$60.49

20

NUT.HEX.(COARS)

99780-12600-00

$2.80

21

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

22

WASHER

F0X-61637-00-00

$1.29

23

NUT

F0X-61652-01-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

25

STABILIZER LH

F1S-U883N-01-00

$33.32

26

STABILIZER RH

F1S-U883P-01-00

$33.32

27

BRACKET,STABILIZER

F1X-U883T-02-00

$43.92

28

BOLT,WASHER BASED

90105-088F9-00

$2.91

29

SPACER

F1K-U8169-00-00

Unavailable

30

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

31

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

32

SCREW, PAN HEAD

9788R-05025-00

$2.52

33

WASHER

9299R-05200-00

$3.16

34

NUT, FLANGE

9572R-05300-00

$1.43
