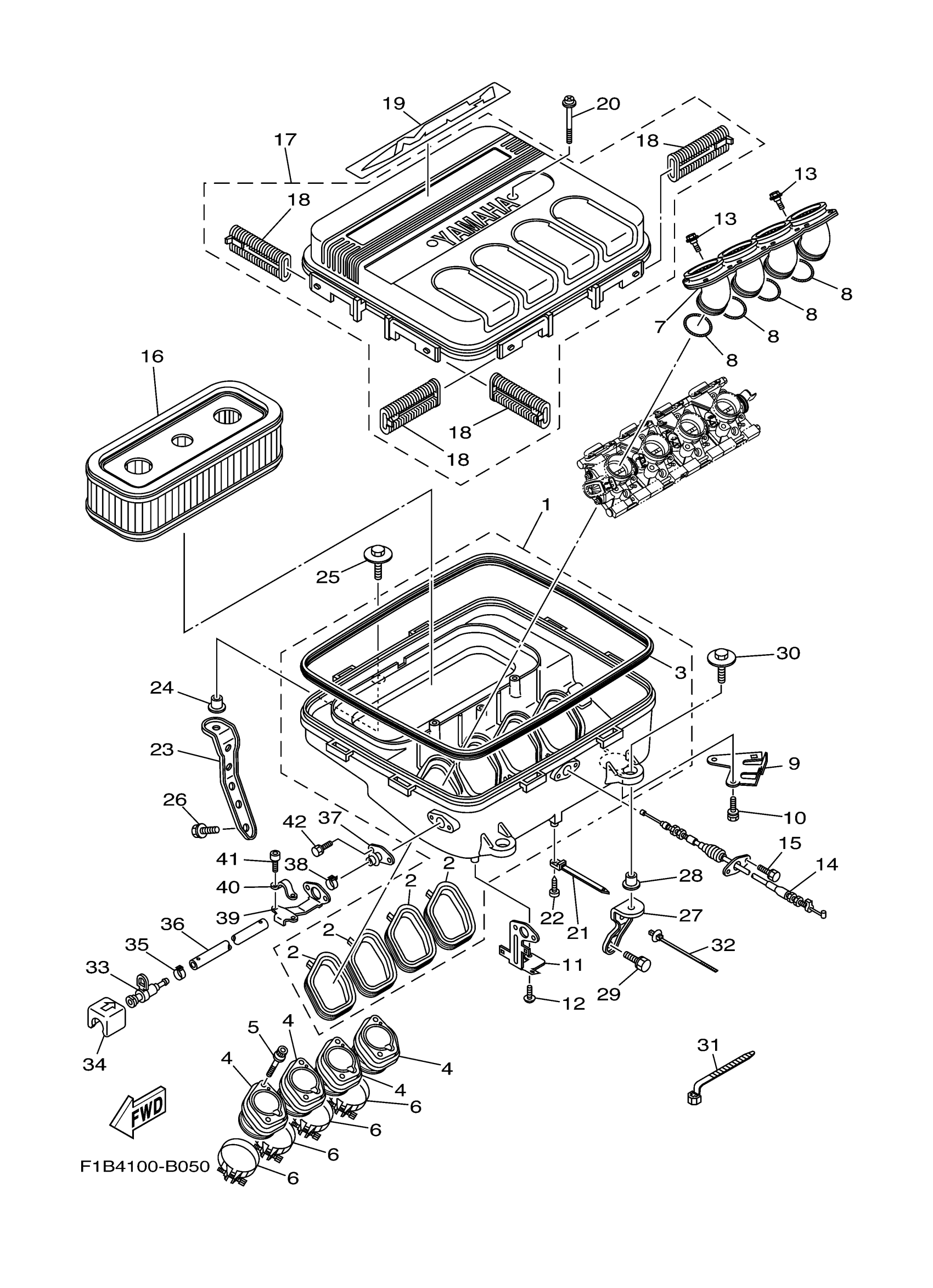

Find the part on the Intake diagram for your 2003 Yamaha FX140 (FX1000CB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Yamaha FX140 (FX1000CB) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AIR CLEANER ASSY.

60E-14410-02-00

1
Out of stock

2

. SEAL

60E-14239-00-00

1
Out of stock

3

. SEAL

60E-14457-00-00

1
Out of stock

4

JOINT, THROTTLE BODY 1

60E-13795-00-00

1
Out of stock

5

BOLT, HEXAGON SOCKET HEAD

90110-08020-00

1
Out of stock

6

HOSE CLAMP ASSY

90450-57002-00

1
Out of stock

7

RIBBON, SUB ASSY

60E-1440A-02-00

1
Out of stock

8

.. SPRING

4XV-14275-00-00

1
Out of stock

9

BRACKET 3

60E-14869-00-00

1
Out of stock

10

BOLT, WITH WASHER(61B)

97513-06516-00

1
Out of stock

11

BRACKET

60E-14867-00-00

1
Out of stock

12

SCREW, ROUND TAPPING

90160-05003-00

1
Out of stock

13

BOLT

90109-06053-00

1
Out of stock

14

CABLE, THROTTLE 1

60E-26311-00-00

1
Out of stock

15

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

1
Out of stock

16

ELEMENT, AIR CLEANER

6B6-14451-01-00

1
Out of stock

17

AIR CLEANER ASSY 2

60E-14420-01-00

1
Out of stock

18

. HOLDER

66V-13898-00-00

1
Out of stock

19

GRAPHIC 1

60E-2339E-20-00

1
Out of stock

20

SCREW, WITH WASHER

90159-05006-00

—
Out of stock

21

CLAMP

90465-12M53-00

1
Out of stock

22

SCREW, ROUND TAPPING

90160-05003-00

1
Out of stock

23

STAY

60E-14413-00-00

1
Out of stock

24

COLLAR

60E-14449-00-94

1
Out of stock

25

BOLT, WITH WASHER

90119-08050-00

1
Out of stock

26

BOLT, WITH WASHER

90119-08032-00

1
Out of stock

27

STAY 2

60E-14414-00-00

1
Out of stock

28

COLLAR

60E-14449-00-94

1
Out of stock

29

BOLT, WITH WASHER

90119-08032-00

1
Out of stock

30

BOLT, WITH WASHER

90119-08050-00

1
Out of stock

31

CLAMP

90464-20005-00

1
Out of stock

32

CLAMP

90464-28002-00

1
Out of stock

33

FUEL PIPE JOINT

60E-24300-01-00

1
Out of stock

34

COVER

60E-24474-00-00

1
Out of stock

35

HOSE CLAMP ASSY

90450-17M17-00

1
Out of stock

36

HOSE

60E-14294-03-00

1
Out of stock

37

SEAL

60E-24329-00-00

1
Out of stock

38

CLIP

90467-09120-00

—
Out of stock

39

STAY

60E-24364-00-00

1
Out of stock

40

CLAMP, FUEL PIPE 1

60E-24366-00-00

1
Out of stock

41

BOLT

91380-04008-00

1
Out of stock

42

BOLT, WITH WASHER(61B)

97513-06516-00

1
Out of stock
