2002 Yamaha FX140 (FX1000CA) Ventilation Diagram

← All diagrams

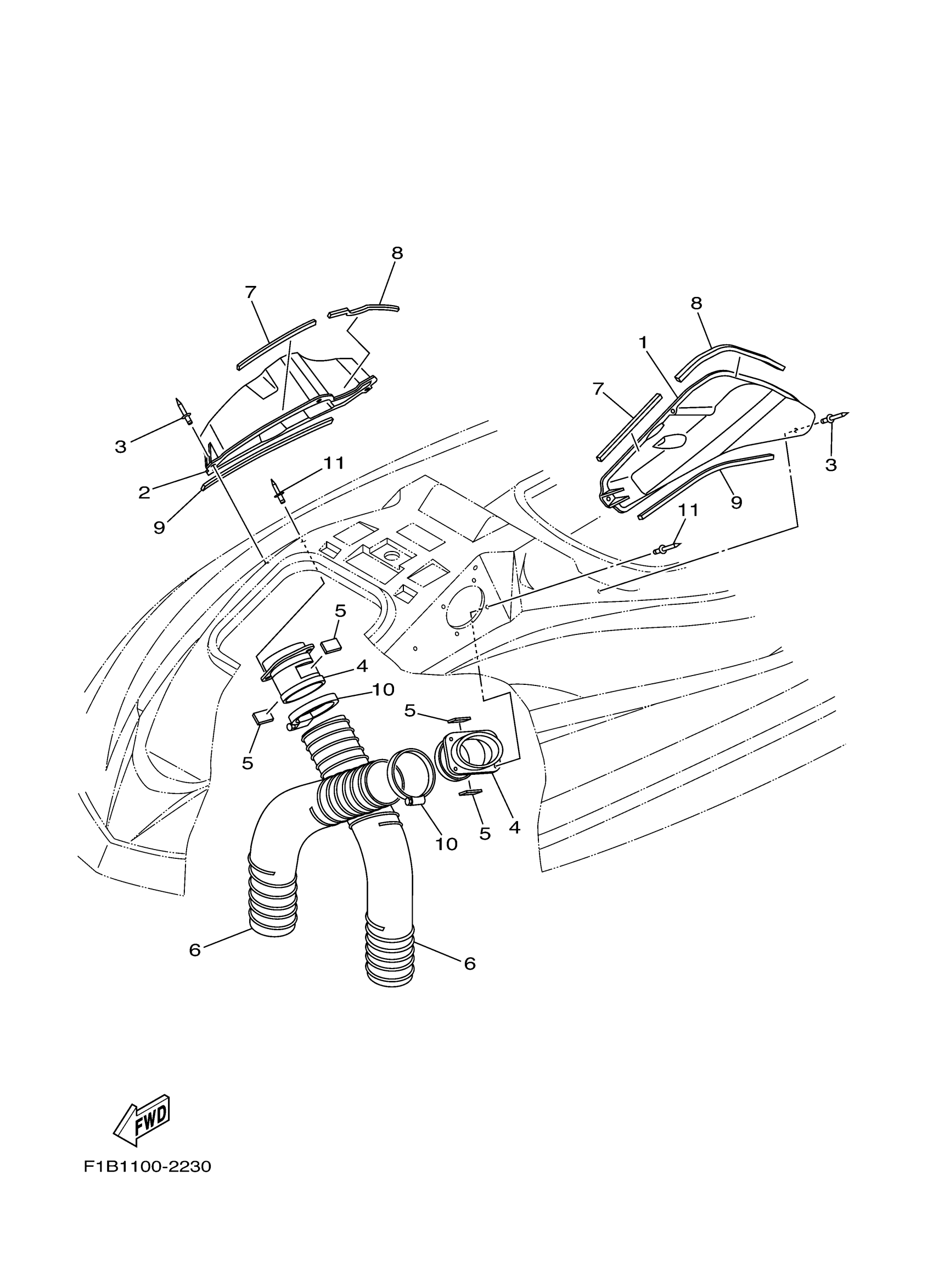

Find the part on the Ventilation diagram for your 2002 Yamaha FX140 (FX1000CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha FX140 (FX1000CA) Ventilation Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX, INDUCTION 1

F1B-U2187-01-00

1
Out of stock

2

BOX, INDUCTION 2

F1B-U2188-00-00

1
Out of stock

3

RIVET, BLIND

90267-48806-00

1

$2.31

In stock

4

BASE, AIR INTAKE

F1B-62127-00-00

1

$70.99

In stock

5

PACKING

F1B-62157-00-00

1

$6.46

In stock

6

HOSE, VENTILATOR 2

F0X-U213G-01-00

1
Out of stock

7

PACKING 6

F1B-6266E-00-00

1

$8.45

In stock

8

PACKING 7

F1B-6266F-00-00

1

$8.45

In stock

9

PACKING 8

F1B-6266G-00-00

1

$11.99

In stock

10

BAND

90601-200U7-00

1

$3.15

In stock

11

RIVET, BLIND

90267-48806-00

1

$2.31

In stock
