2002 Yamaha FX140 (FX1000CA) Engine Hatch 2 Diagram

← All diagrams

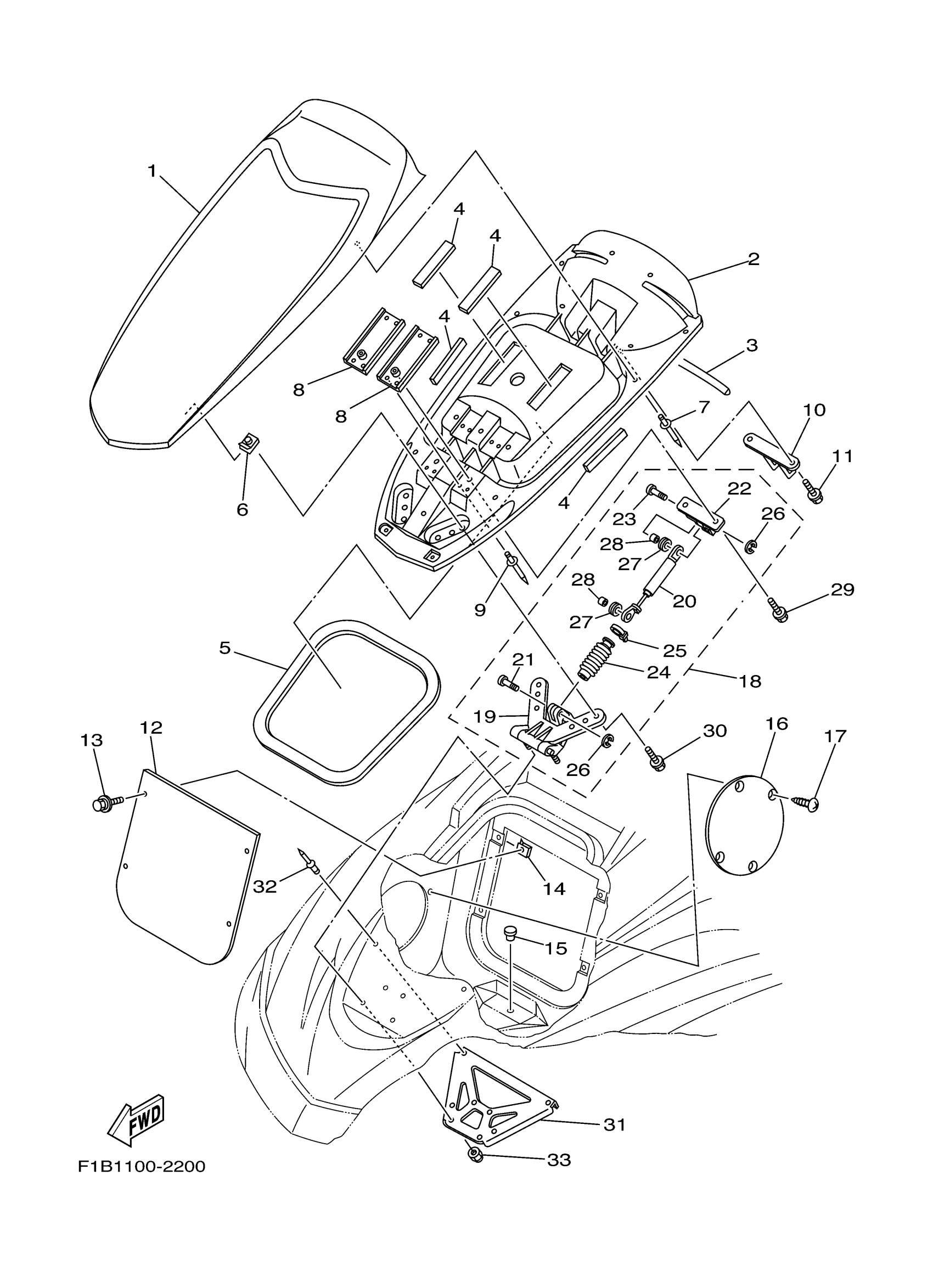

Find the part on the Engine Hatch 2 diagram for your 2002 Yamaha FX140 (FX1000CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha FX140 (FX1000CA) Engine Hatch 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LID,ENGINE HATCH(GRAY)

F1B-U517B-09-P0

1
Out of stock

2

VENTILATOR COVER C

F1B-U2103-01-00

1
Out of stock

3

PACKING 3

F1B-U266B-00-00

1
Out of stock

4

TAPE, FITTING

F0V-U3635-00-00

1
Out of stock

5

PACKING 1

F1B-U2663-00-00

1
Out of stock

6

NUT, SPRING(GJ3)

90183-06902-00

1

$9.14

In stock

7

RIVET, BLIND

90267-48807-00

1

$2.38

In stock

8

PLATE, HATCH

F1B-65148-00-00

1

$15.99

In stock

9

RIVET, BLIND(EU0,USA)

90267-489U9-00

1

$3.32

In stock

10

HOOK, LID LOCK

F0X-6517F-01-00

1

$47.99

In stock

11

BOLT, WITH WASHER

90119-06830-00

—

$1.22

In stock

12

PLATE, LOCKER BOW

F1B-U475F-00-00

1
Out of stock

13

BOLT, WITH WASHER

90119-06830-00

—

$1.22

In stock

14

NUT, SPRING(GJ3)

90183-06902-00

1

$9.14

In stock

15

. PLUG, BLIND

90605-502U1-00

1

$2.46

In stock

16

COVER, INSPECTION 2

GP1-U7228-00-00

1
Out of stock

17

SCREW, TAPPING

9778R-40712-00

1
Out of stock

18

HINGE ASSY.

F1B-6515A-01-00

1
Out of stock

19

. HINGE, LID

F1B-6517D-00-00

1

$190.99

In stock

20

DAMPER 1

F1B-6515D-01-00

1

$158.35

In stock

21

. SHAFT A

F1B-6515H-00-00

1
Out of stock

22

. STAY, DAMPER

F1B-6514U-00-00

1
Out of stock

23

. SHAFT B

F1B-6515J-00-00

1
Out of stock

24

. COVER , SPRING

F1B-6518F-00-00

1

$23.49

In stock

25

. CLAMP

90464-44001-00

1
Out of stock

26

CIRCLIP (701)

93430-06024-00

1

$3.92

In stock

27

. GROMMET

90480-10006-00

1
Out of stock

28

. COLLAR

90387-07008-00

1
Out of stock

29

BOLT, WITH WASHER

90119-06830-00

—

$1.22

In stock

30

BOLT, WITH WASHER

90119-06852-00

1
Out of stock

31

PLATE, HINGE LID

F1B-6518E-00-00

1

$45.99

In stock

32

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

33

NUT, NYLON

9572R-06300-00

1

$3.15

In stock
