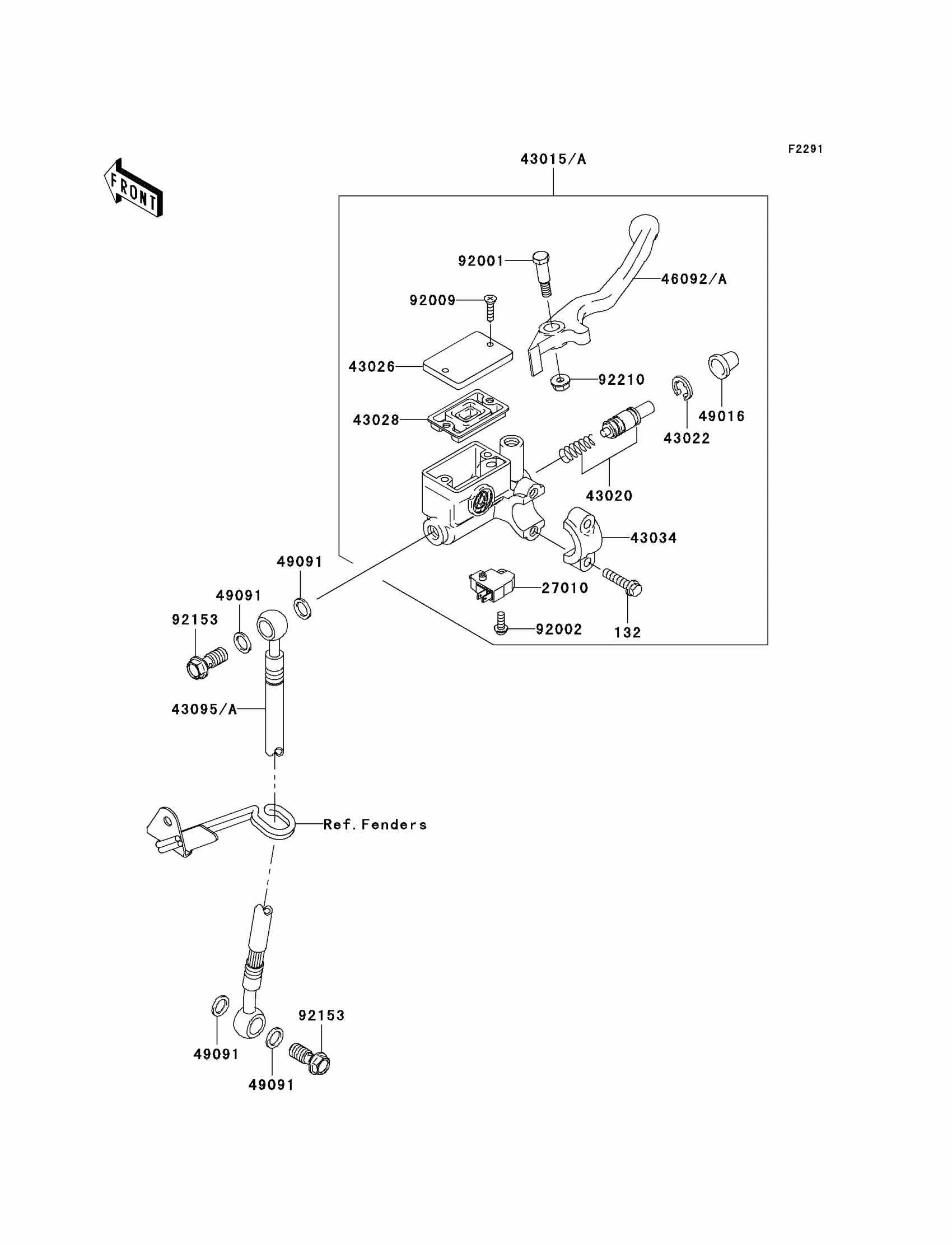

Kawasaki Fury 125R Front Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132BB0625

$1.98

27010

SWITCH,BRAKE

27010-0025

$32.62

43015A

CYLINDER-ASSY-MASTER,FR

43015-0124

$304.98

43020

PISTON-COMP-BRAKE

43020-1095

$52.23

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1074

$20.73

43028

DIAPHRAGM

43028-1061

$12.27

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$14.67

43095

HOSE-BRAKE,FR

43095-0339

$82.84

46092

LEVER-GRIP,FRONT BRAKE

46092-1119

$20.20

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$10.80

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92009

SCREW,4MM

92009-1458

$2.23

92153

BOLT,OIL,L=23

92153-0627

$4.15

92210

NUT,LOCK,6MM

92210-0006

$1.76
