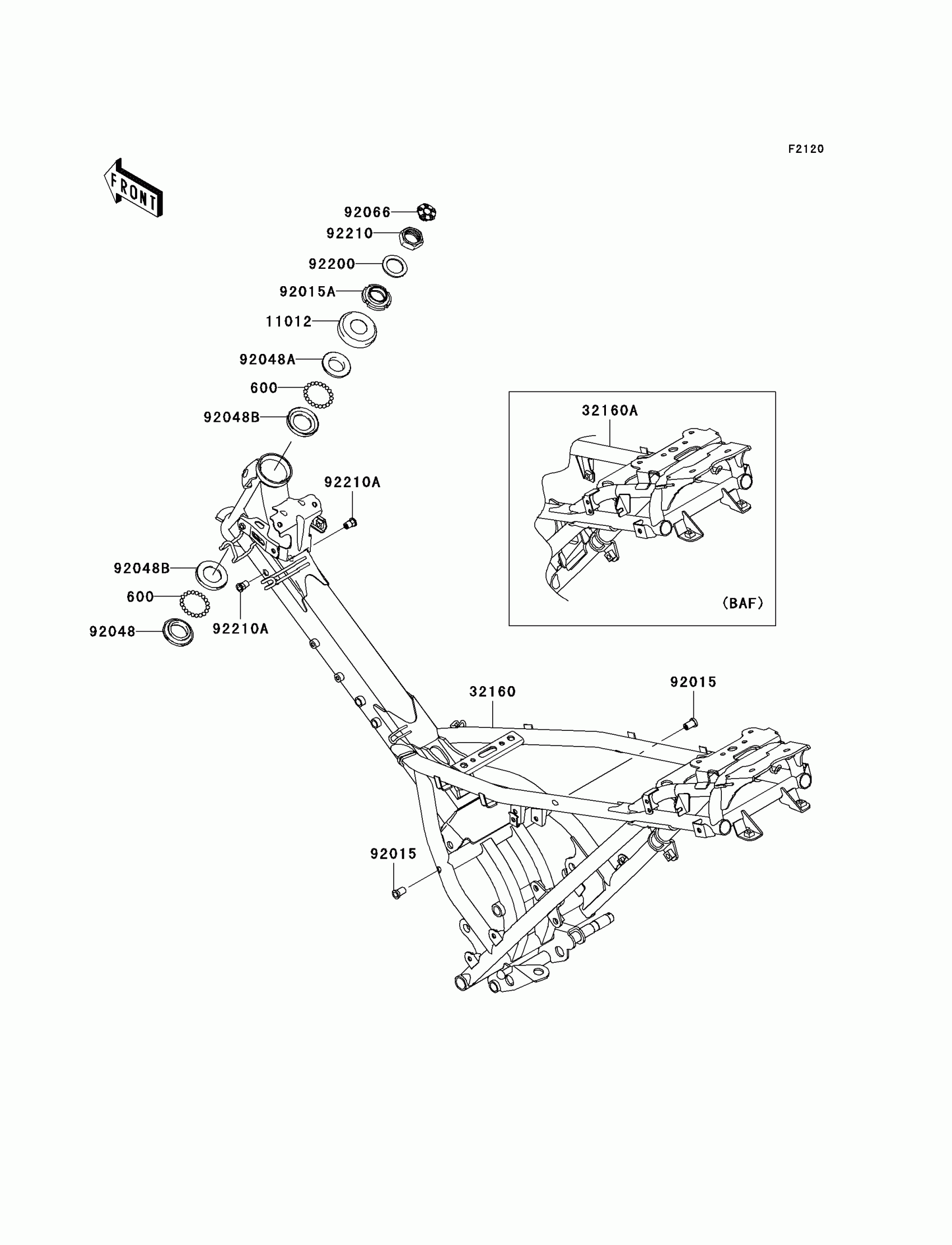

Kawasaki Fury 125R Frame Diagram

Description

Price

600

BALL-STEEL,1/4

600A0800

$0.59

11012

CAP,STEERING STEM

11012-1788

Unavailable

32160

FRAME-COMP

32160-0455

$732.76

92015

NUT,POP,6MM

92015-1759

$4.42

92015A

NUT,STEERING STEM LOCK,24MM

92015-1973

$8.58

92048

RACE,STEERING STEM BEARING

92048-0013

$12.32

92048A

RACE,STEERING STEM BEARING

92048-1087

$9.39

92048B

RACE,STEERING STEM BEARING

92048-1089

Unavailable

92066

PLUG

92066-0126

$1.95

92200

WASHER,24.5X36X2.3

92200-0481

$7.76

92210

NUT,LOCK,24MM

92210-0467

$11.17

92210A

NUT,POP,6MM,L=15

92210-1397

$4.81
