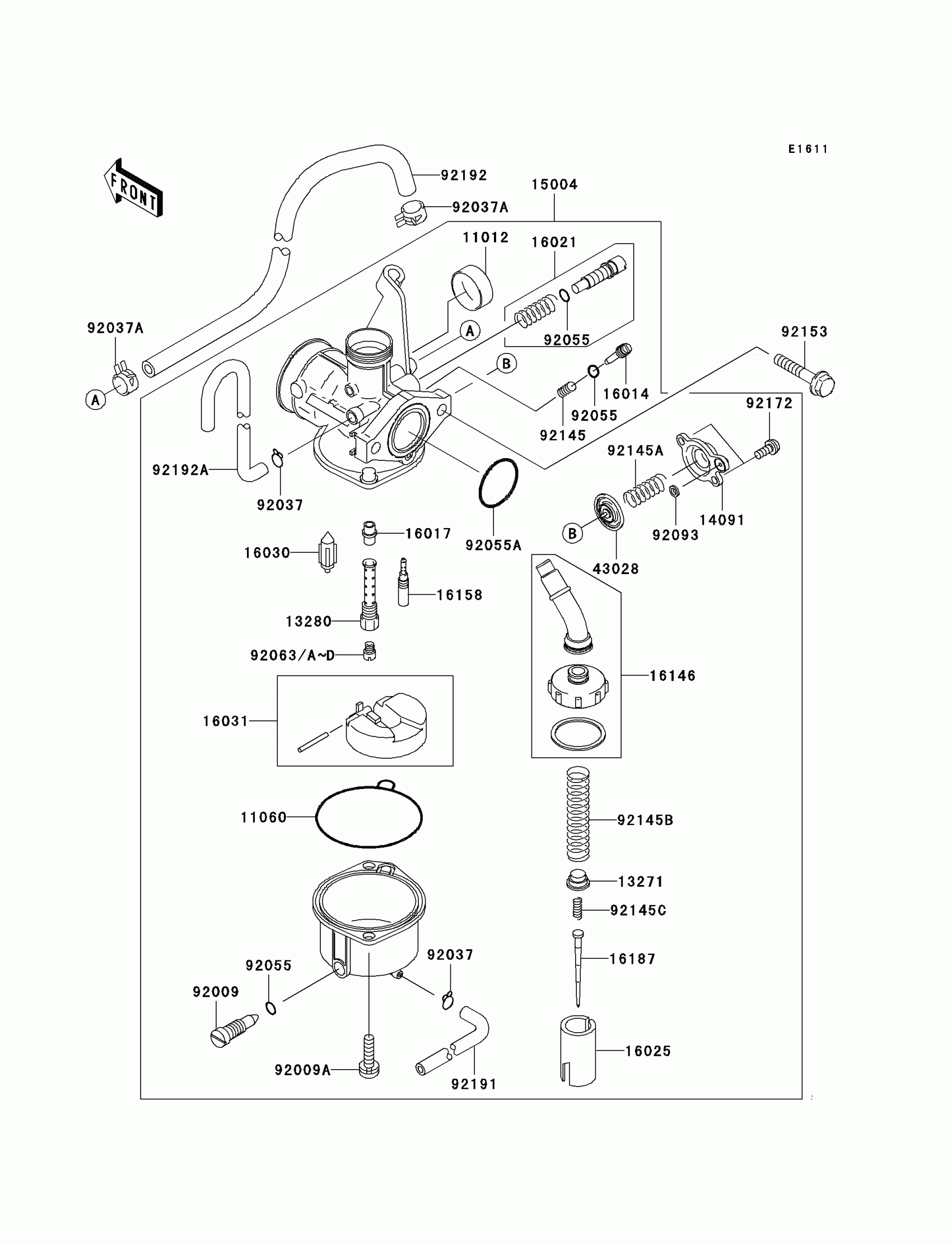

Kawasaki Fury 125R Carburetor Diagram

#

Description
Price

11012

CAP,CHOKE

11012-1940

Unavailable

11060

GASKET,FLOAT CHAMBER

11060-1700

$16.00

13271

PLATE

13271-1668

$8.24

13280

HOLDER,NEEDLE JET

13280-1282

$14.80

14091

COVER

14091-0285

$29.40

15004

CARBURETOR-ASSY,PB18

15004-0027

$250.18

16014

SCREW-PILOT AIR

16014-0013

$17.81

16017

JET-NEEDLE

16017-1399

$43.68

16021

SCREW-THROTTLE STOP

16021-1203

$12.05

16025

VALVE-THROTTLE

16025-1225

$78.09

16030

VALVE-FLOAT,FLOAT

16030-0002

Unavailable

16031

FLOAT

16031-1107

$30.96

16146

COVER-ASSY,TOP

16146-0092

$16.00

16158

JET-SLOW,#38

16158-1063

$11.31

16187

NEEDLE-JET,HPE

16187-0276

$43.20

43028

DIAPHRAGM

43028-0003

$27.18

92009

SCREW,DRAIN

92009-1057

$7.71

92009A

SCREW

92009-1750

$3.92

92037

CLAMP,TUBE

92037-1142

$3.29

92037A

CLAMP

92037-1601

$12.32

92055

RING-O

92055-1053

$3.24

92055A

RING-O

92055-1541

$1.96

92063

JET-MAIN,#85

92063-1326

Unavailable

92063A

JET-MAIN,#78

92063-1393

Unavailable

92063B

JET-MAIN,#75

92063-1395

Unavailable

92063C

JET-MAIN,#80

92063-1396

$12.00

92063D

JET-MAIN,#82

92063-1397

Unavailable

92093

SEAL-"U"RING

92093-1046

$4.88

92145

SPRING

92145-0004

$5.27

92145A

SPRING

92145-0642

$14.64

92145B

SPRING,THROTTLE VALVE

92145-1407

$7.93

92145C

SPRING,THROTTLE VALVE PLATE

92145-1408

$1.05

92153

BOLT,FLANGED-SMALL,6X28

92153-1309

$2.42

92172

SCREW

92172-0165

$2.98

92191

TUBE,3.5X6.5X298

92191-1142

$11.19

92192

TUBE,FUEL

92192-0482

$10.47

92192A

TUBE,AIR VENT

92192-0738

$23.49
