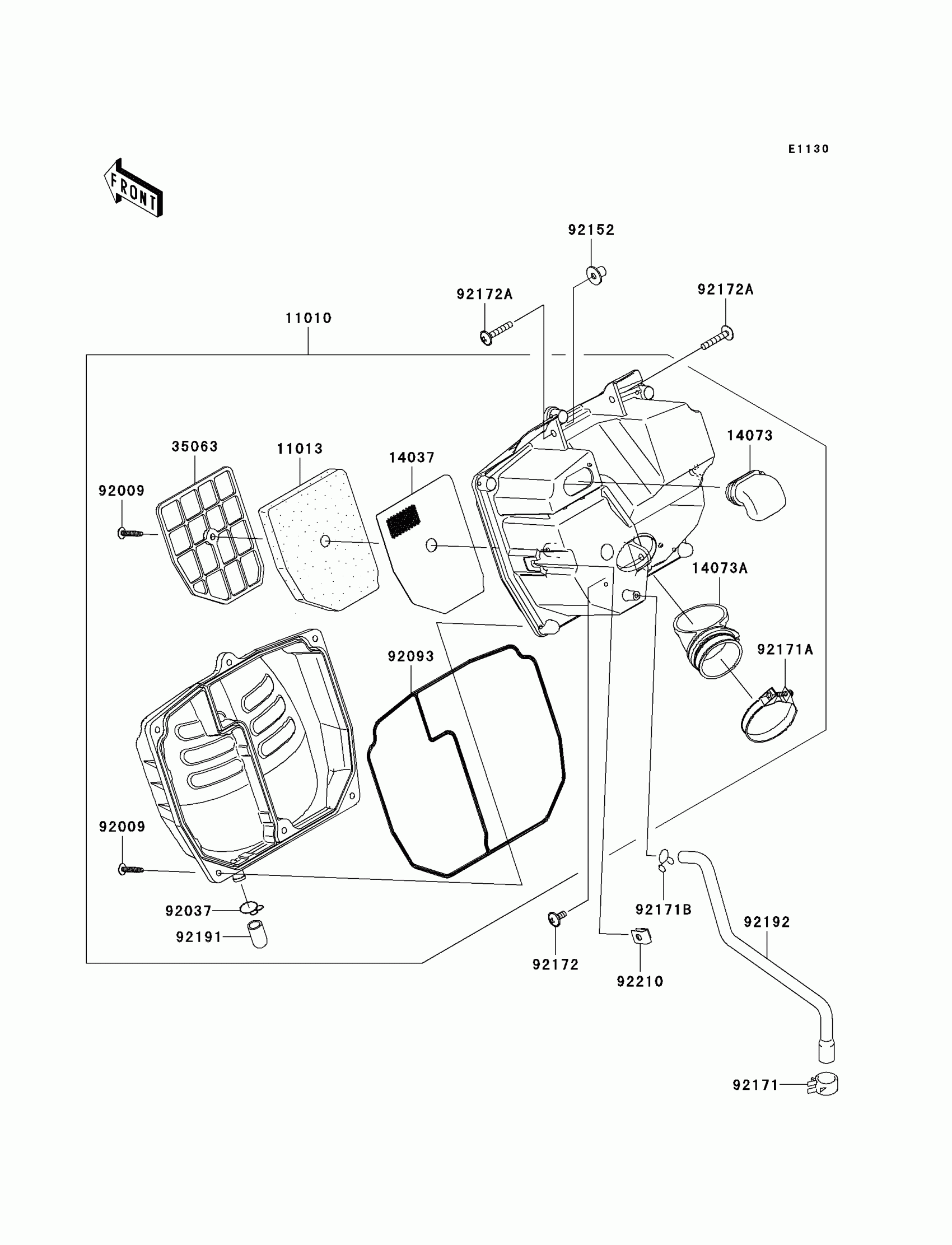

Kawasaki Fury 125R Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0129

$121.67

11013

ELEMENT-AIR FILTER

11013-0024

$9.36

14037

SCREEN

14037-0070

$7.64

14073

DUCT

14073-0166

$7.64

14073A

DUCT

14073-1810

$4.97

35063

STAY

35063-0418

$5.97

92009

SCREW,5X25

92009-1986

$0.44

92037

CLAMP,14.5MM

92037-1900

$3.71

92093

SEAL

92093-0090

$5.97

92152

COLLAR

92152-0599

$7.32

92171

CLAMP

92171-1055

$3.85

92171A

CLAMP

92171-1436

$2.49

92171B

CLAMP

92171-1521

$1.81

92172

SCREW,6X14

92172-0004

$1.98

92172A

SCREW,6X35

92172-0463

$1.15

92191

TUBE,DRAIN

92191-1685

$1.93

92192

TUBE,BREATHER

92192-0481

$17.12

92210

NUT,6MM

92210-0218

$1.81
