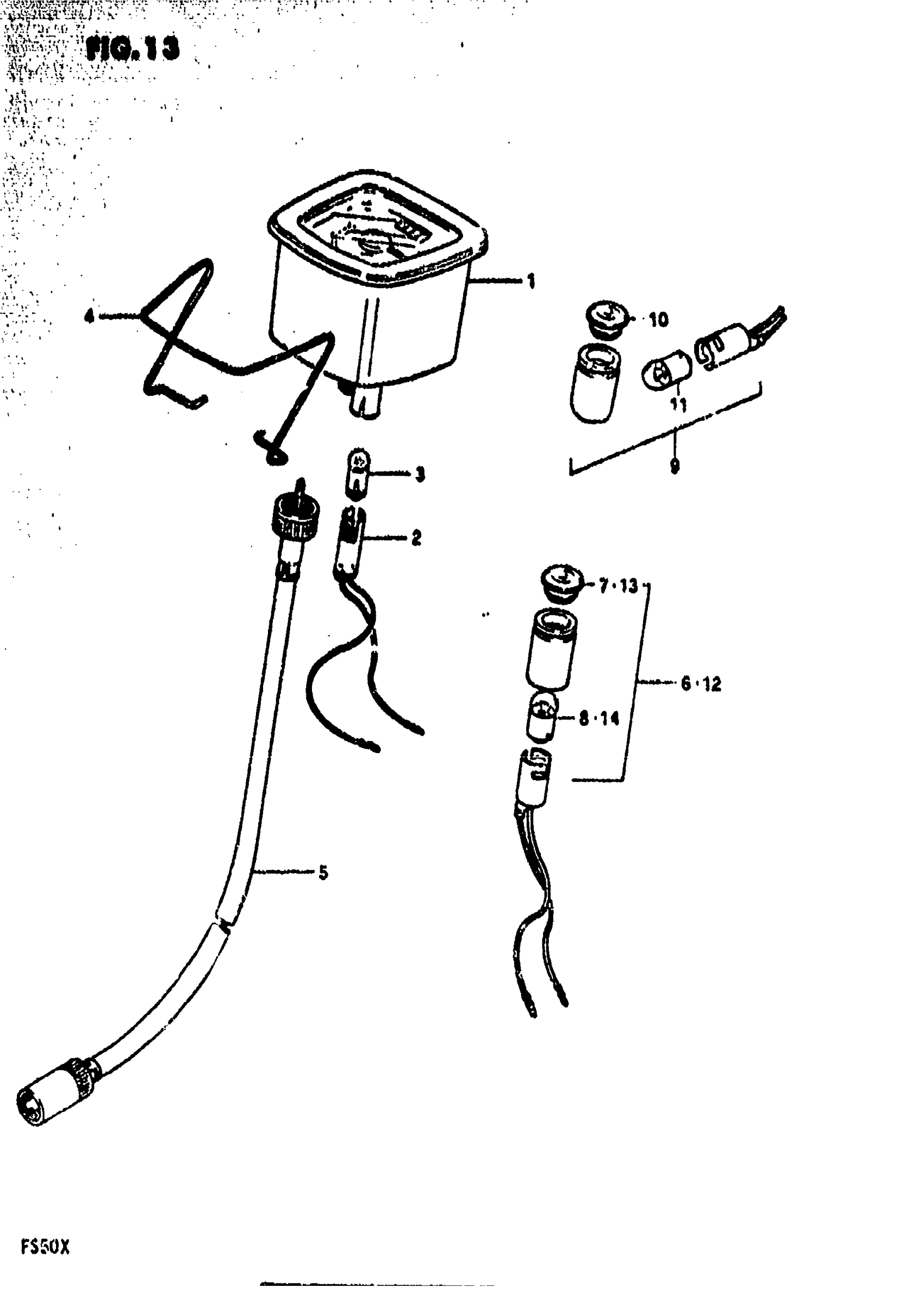

Suzuki FS50 (1981) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSY | Includes Item(s) 2 - 3 This part replaces 34100-02510.

34100-02410

Unavailable

2

SOCKET

34173-43220

Unavailable

3

BULB (6V,1.5W)

09471-06004

Unavailable

4

SPRING

34981-02421

Unavailable

5

CABLE ASSY,SPEE | MODEL T This part replaces 34910-02500.

34910-09D10

Unavailable

5

CABLE ASSY,SPEE | MODEL X This part replaces 34910-02501.

34910-09D10

Unavailable

6

LAMP ASSY, BEAM INDICATER | MODEL T; Includes Item(s) 7 - 8

36330-02500

Unavailable

7

LENS | MODEL T

36331-02500

Unavailable

8

BULB (6V,1.7W) | MODEL T

09471-06001

$2.27

9

LAMP ASSY, BEAM INDICATER | MODEL X; Includes Item(s) 10 - 11

36330-02510

Unavailable

10

LENS | MODEL X

36331-02500

Unavailable

11

BULB (6V,1.7W) | MODEL X

09471-06001

$2.27

12

LAMP, TURN SIGNAL PILOT | MODEL X; Includes Item(s) 13 - 14

36340-02500

Unavailable

13

LENS | MODEL X

36341-02500

Unavailable

14

BULB (6V,3W) | MODEL X

09471-06002

$2.10
