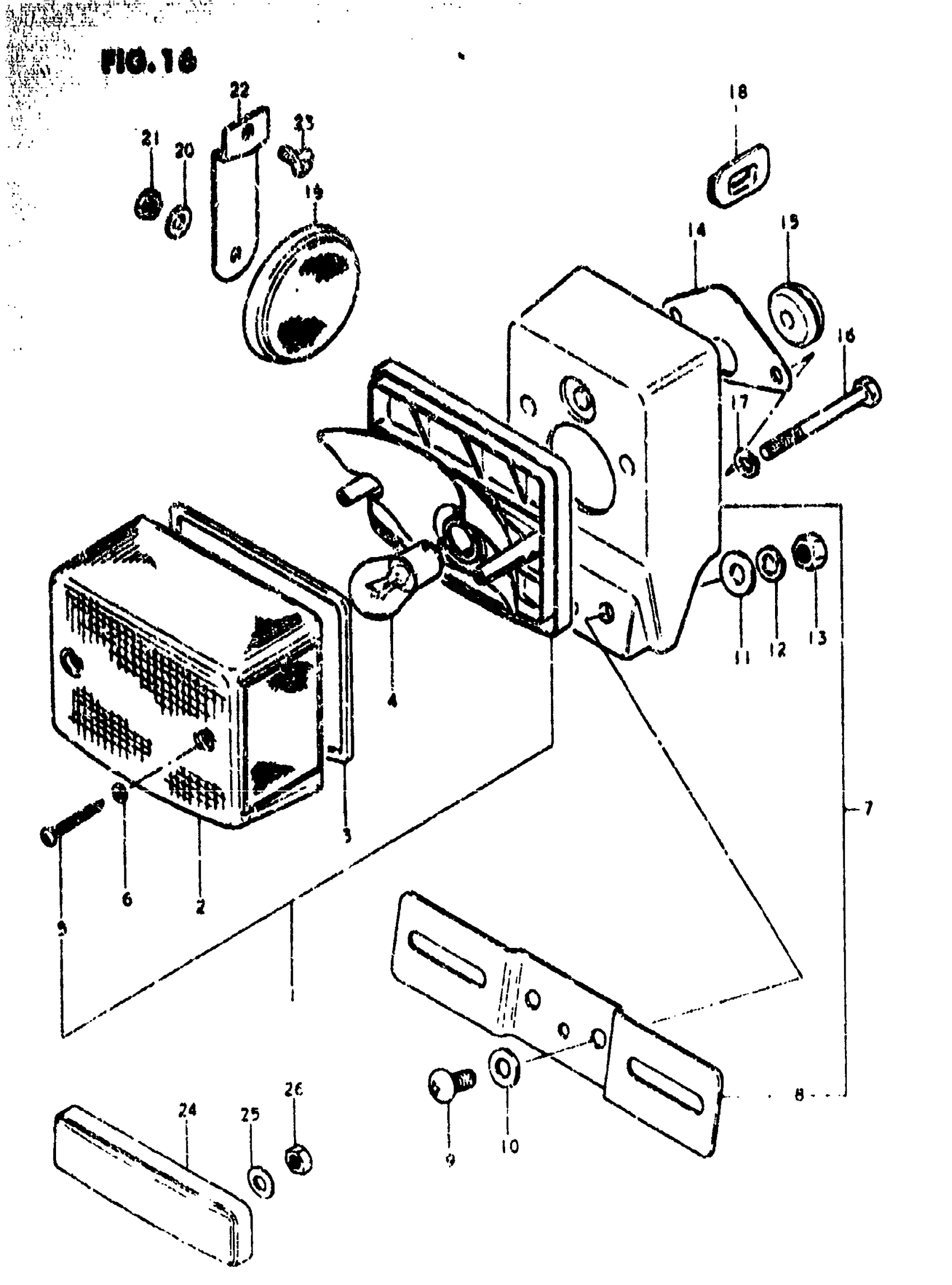

Suzuki FS50 (1981) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 6

35710-02530

Unavailable

2

LENS

35712-48510

$73.03

3

GASKET

35713-48510

$6.95

4

BULB (6V,21/3CP)

09471-06009

$3.78

5

SCREW

03211-04306

$2.25

6

GASKET

35627-43010

$2.29

7

BRACKET ASSY | Includes Item(s) 8 - 13

35730-02530

Unavailable

8

PLATE, LICENSE

35927-02530

Unavailable

9

SCREW This part replaces 02112-06168.

02112-06167

$1.46

10

WASHER This part replaces 08322-21068.

08322-01067

$1.94

11

WASHER This part replaces 09160-06007.

09160-06084

$1.82

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

13

.NUT This part replaces 08310-11068.

08310-00067

$1.91

14

PLATE

35793-02530

Unavailable

15

GROMMET

09308-07005

Unavailable

16

BOLT

09100-05007

Unavailable

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.89

18

GROMMET

09308-08012

Unavailable

19

REFLEX REFLECTOR, FRONT

35950-45010

$22.68

20

WASHER This part replaces 08322-21058.

08322-01057

$1.93

21

NUT This part replaces 08310-11058.

08310-00057

$1.89

22

BRACKET, REFLEX REFLECTOR | MODEL X

35975-02530

Unavailable

23

SCREW

02142-05087

$1.48

24

REFLEX REFLECTOR ASSY, REAR This part replaces 35970-02230.

35970-44A00

Unavailable

25

WASHER This part replaces 08322-21058.

08322-01057

$1.93

26

NUT This part replaces 08310-11058.

08310-00057

$1.89
