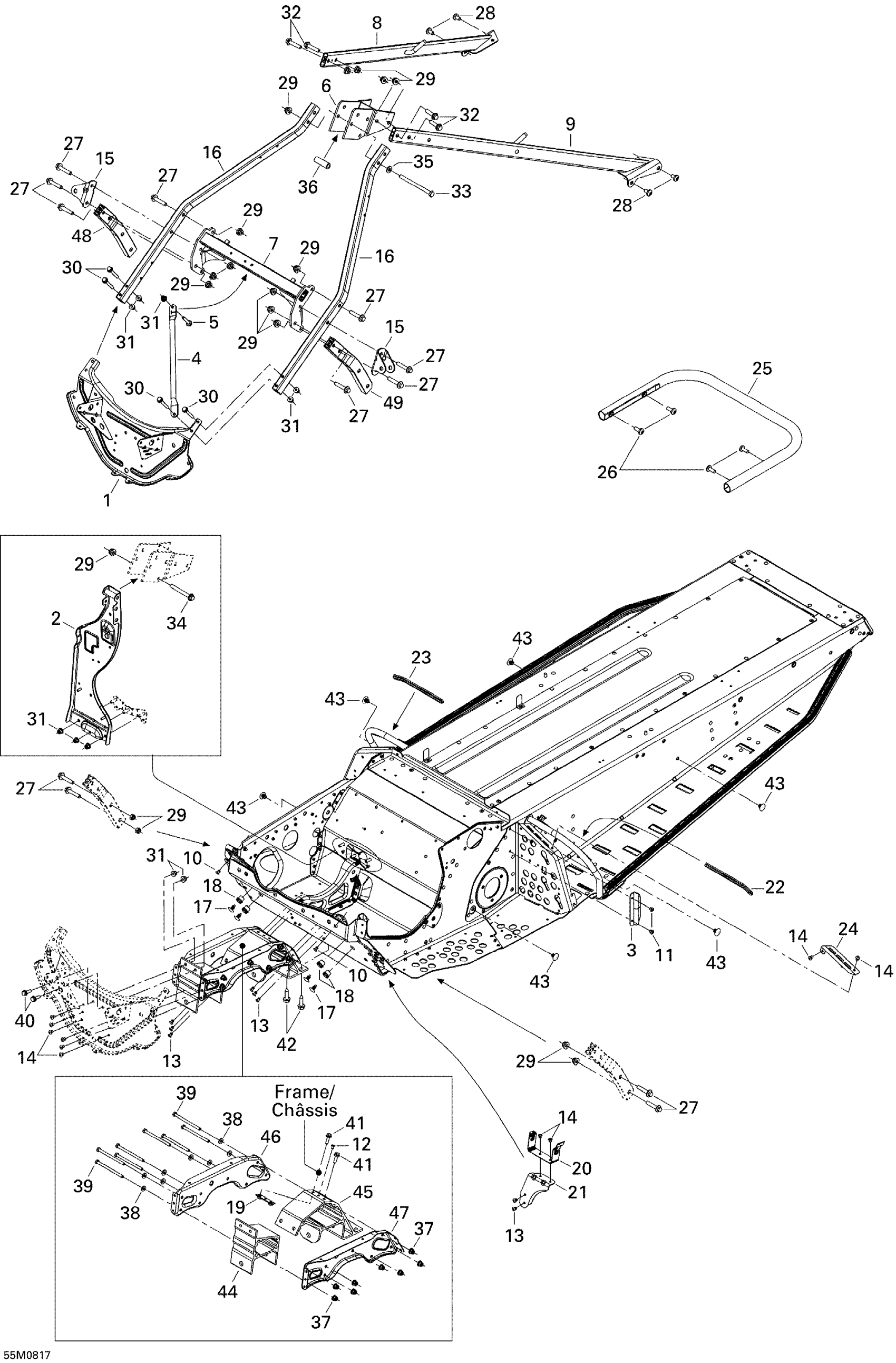

Ski-Doo Freestyle SESSION 300F, 2008 Frame and Components Diagram

#

Description
Price

1

FRONT PLATE - Call your local BRP dealership

518324216

Unavailable

2

UPPER COLUMN SUPPORT - Call your local BRP dealership

518325212

Unavailable

3

CABLE PROTECTOR - Call your local BRP dealership

518317504

$4.77

4

BRACE - Call your local BRP dealership

518324988

Unavailable

5

Hex. Flange Screw M6 X 35

207663544

$0.74

6

BRACKET BLOCK - Call your local BRP dealership

518324196

Unavailable

7

Upper Cross Member

518325150

Unavailable

8

RH MEMBER - Call your local BRP dealership

518324480

Unavailable

9

LH Member

518325193

Unavailable

10

Hemlock Rivet, 6.5 mm

293150119

$4.00

11

Pop Rivet 3/16"

390402200

$0.26

12

Pop Rivet 3/16"

390402300

Unavailable

13

Avex Rivet

390909100

$0.29

14

Avex Rivet

390909200

Unavailable

15

SHOCK BRACKET - Call your local BRP dealership

518324202

Unavailable

16

UPPER TUBE - Call your local BRP dealership

518325074

Unavailable

17

Black, Dart

414644300

$0.78

18

Insert

293450166

Unavailable

19

HOLDER PLATE - Call your local BRP dealership

518324204

Unavailable

20

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

$11.85

21

BELT GUARD SUPPORT - Call your local BRP dealership

518324439

Unavailable

22

Was 271000110 Protection Trim

219704353

Unavailable

23

Was 271000110 Protection Trim

219704353

Unavailable

24

PLATE, BLACK - Call your local BRP dealership

518323105

$7.89

25

Rear Bumper

518323992

Unavailable

26

Hex. Screw M8 X 20

236282084

Unavailable

27

Hex. Flange Screw M8 X 40

207684044

Unavailable

28

Pan Head Torx Screw M8 X 12

250000887

$1.56

29

Hex. Flange Elastic Nut M8

233281414

Unavailable

30

Hex. Flange Screw M6 X 45

207664544

Unavailable

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

32

Hex. Flange Screw M8 X 35

207683544

$1.39

33

HEX. SCREW M8 X 110 - Call your local BRP dealership

230081044

Unavailable

34

Hex. Flange Screw M8 X 70

207687044

Unavailable

35

Washer

503189157

$3.20

36

Housing Bushing

506150500

Unavailable

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

38

Flat Washer

250200039

Unavailable

39

Hex. Screw M6 X 90

207069044

Unavailable

40

Hex. Flange Screw M6 X 20

207662044

Unavailable

41

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

42

Cone Screw, M8 X 30

250000257

$1.72

43

Panel Fastener

518321954

Unavailable

44

FRONT ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324019

Unavailable

45

REAR ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324020

Unavailable

46

RH LATERAL REINFORCEMENT - Call your local BRP dealership

518324014

Unavailable

47

LH LATERAL REINFORCEMENT - Call your local BRP dealership

518324017

Unavailable

48

RH VERTICAL TUBE - Call your local BRP dealership

518324214

Unavailable

49

LH Vertical Tube

518324215

Unavailable
