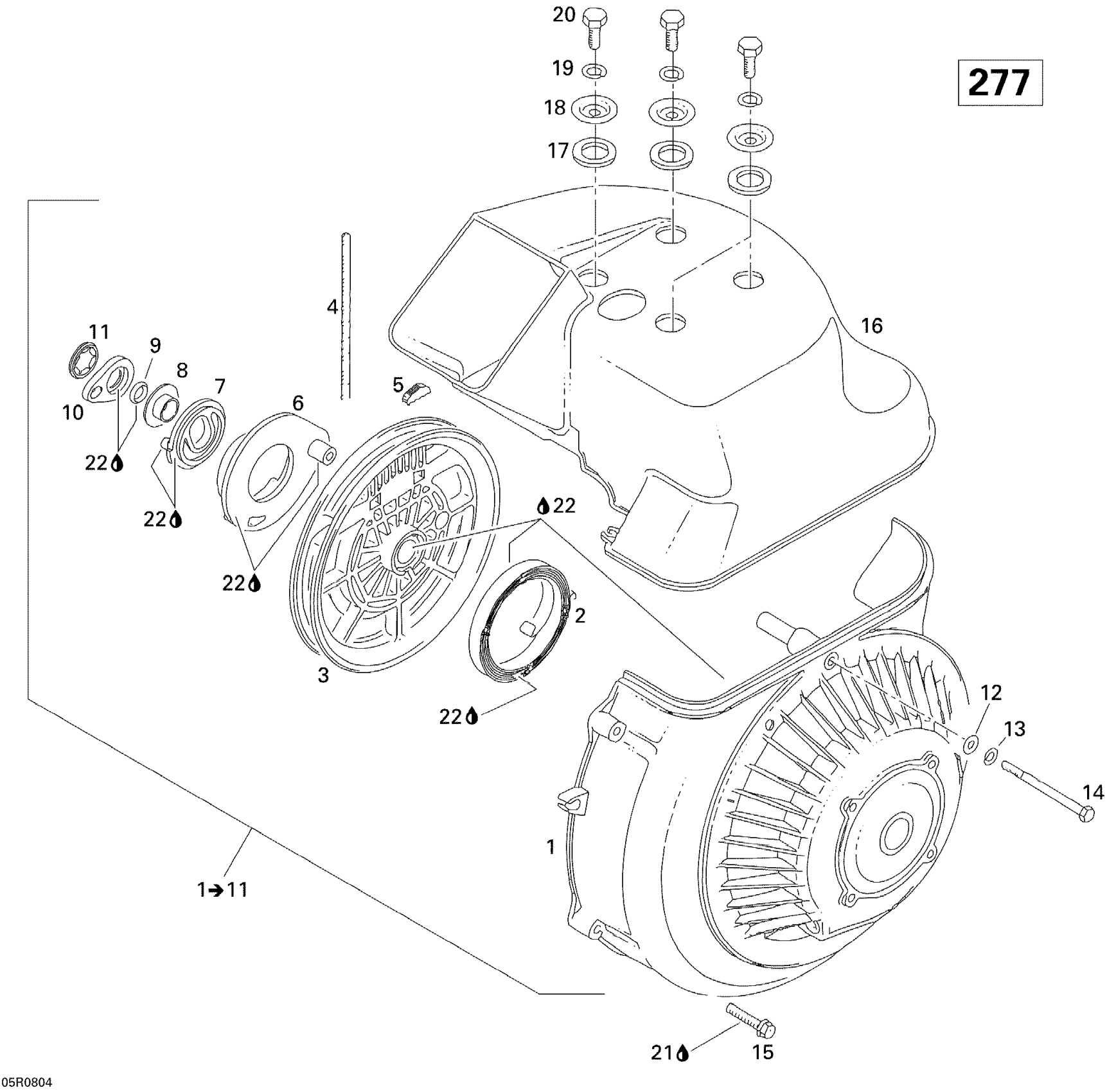

Ski-Doo Freestyle SESSION 300F, 2008 Rewind Starter Diagram

#

Description
Price

1

Demar.Rappel *Starter-Rewind This part replaces 420889825.

420889823

Unavailable

1

Fan Cowling

420810286

Unavailable

2

Rewind Spring

420939115

$25.32

3

Rope Sheave

420852289

Unavailable

4

Was 412500100 Rope-Starter

219704403

Unavailable

5

Key Clamp

420852070

Unavailable

6

Pawl

420852296

Unavailable

7

Pawl Lock | Includes no. 8-9

420852640

$5.51

8

Stage Sleeve

420847926

Unavailable

9

O-Ring

420250400

Unavailable

10

Lock Ring

420852520

Unavailable

11

Locking Element

420845560

Unavailable

12

Flat Washer

224061121

$0.44

13

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

14

Hex. Screw M6 X 75

207067544

Unavailable

15

TAPPING SCREW M6 X 35 - Call your local BRP dealership

420640411

Unavailable

16

CYLINDER COWL - Call your local BRP dealership

420910020

Unavailable

17

RUBBER WASHER - Call your local BRP dealership

420960860

Unavailable

18

COWL COVER - Call your local BRP dealership

420827140

Unavailable

19

Washer-Lock Din.128

420945832

Unavailable

20

Hex. Screw M8 x 16

207181644

$0.87

21

Loctite 243, 10 ml

293800060

$20.77

22

Molykote PG 54, 10 g

420899763

Unavailable
