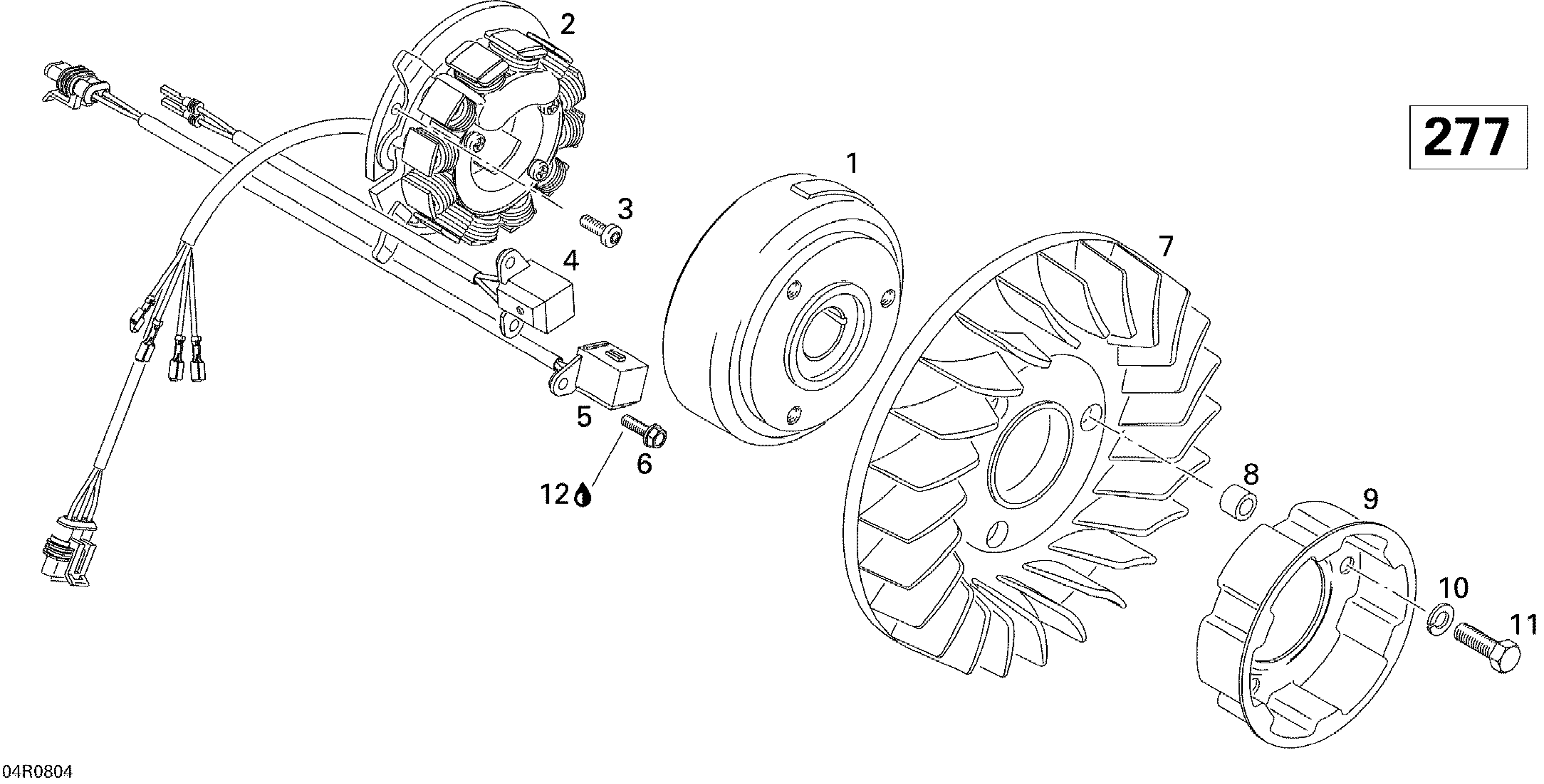

Ski-Doo Freestyle SESSION 300F, 2008 Magneto Diagram

#

Description

Price

1

FLYWHEEL - Call your local BRP dealership

420665370

Unavailable

2

Stator Plate A

420889369

Unavailable

3

Screw

420641521

Unavailable

4

PICK UP - Call your local BRP dealership

420966543

Unavailable

5

PICK UP - Call your local BRP dealership

420966541

Unavailable

6

Taptite Screw M5 X 16

420941928

Unavailable

7

FAN - Call your local BRP dealership

420866435

Unavailable

8

SPACER BUSHING - Call your local BRP dealership

420847440

Unavailable

9

Starting Pulley

420852590

$28.43

10

Washer-Lock Din.128

420945832

Unavailable

11

Hex. Screw M8 X 25

207182544

Unavailable

12

Loctite 243, 10 ml

293800060

$20.77
