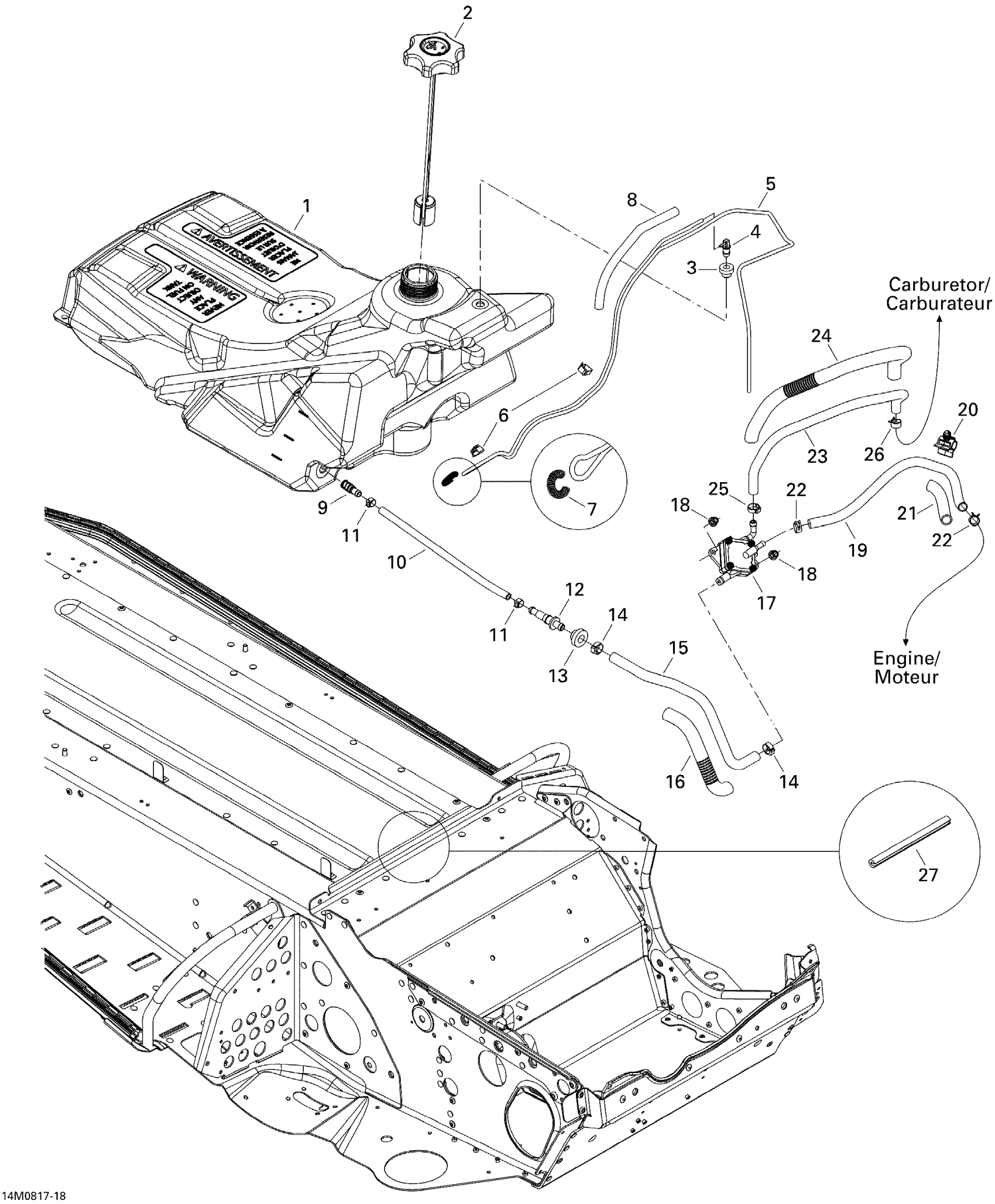

Ski-Doo Freestyle SESSION 300F, 2008 Fuel System Diagram
#
Description
Price
1
Fuel Tank
513033179
Unavailable
5
Was 415080100 Fuel Line Primer 3,2mm
219704409
Unavailable
7
SPRING - Call your local BRP dealership
414818200
Unavailable
8
Tubing 10 MM 1000MM Long
219704407
Unavailable
11
Norma Spring Clamp
513033010
Unavailable
12
Male Connector
414872700
Unavailable
13
Grommet | Europe
707800347
Unavailable
14
Crimp Clamp
293650053
Unavailable
16
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
17
FUEL PUMP - Call your local BRP dealership
403901815
Unavailable
18
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
19
Hose
219704549
Unavailable
20
Hose Retainer
275500528
Unavailable
21
Was 409901800 Tubing (13 mm)
219704400
Unavailable
23
HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership
219704422
Unavailable
24
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
25
Crimp Clamp, 15.3-706R
293650047
Unavailable
26
Universal Spring Clamp
513033029
Unavailable
27
TRIM - Call your local BRP dealership
509000263
Unavailable
