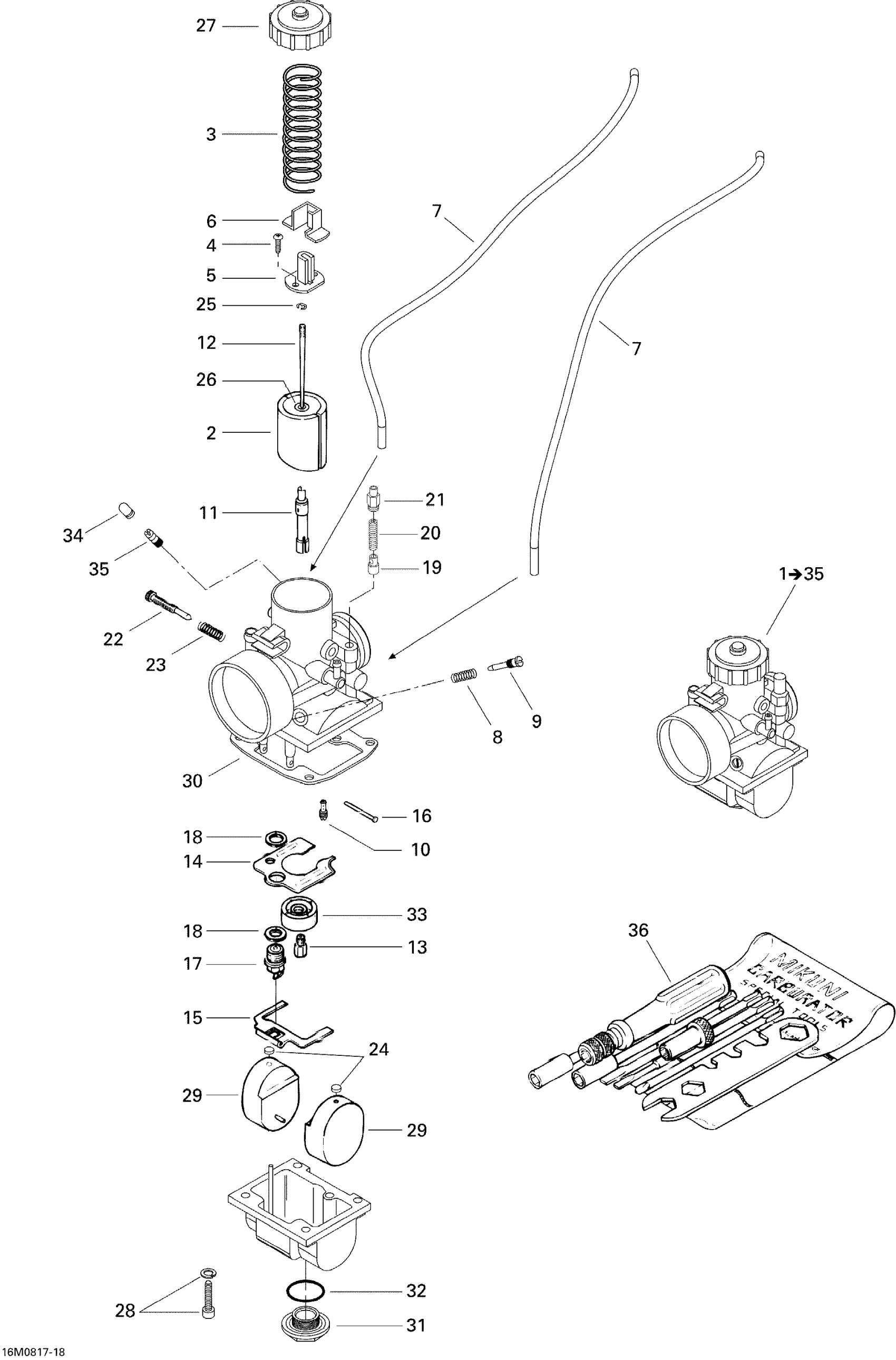

Ski-Doo Freestyle SESSION 300F, 2008 Carburetor Diagram

#

Description
Price

1

CARBURETOR VM 34-618 - Call your local BRP dealership

403138768

Unavailable

2

Piston Valve 2.5

404128400

$124.60

3

Spring

404154800

$24.60

4

Screw With Washer

404121300

$4.24

5

Packing

404161987

$14.46

6

Cover

404122100

$17.88

7

Hose

404162084

Unavailable

8

SPRING - Call your local BRP dealership

404139800

Unavailable

9

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

10

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

11

JET NEEDLE - Call your local BRP dealership

404131000

Unavailable

12

NEEDLE JET J8-6DH04 - Call your local BRP dealership

404101900

Unavailable

13

Main Jet MJ 200

404112300

$5.29

14

BAFFLE - Call your local BRP dealership

404109600

Unavailable

15

Float Lever

404107600

$23.85

16

Lever Pin

404103300

$6.36

17

Needle Valve 1.2

404147500

$43.25

18

Seat Washer

404101600

$3.21

19

Plunger Ass'y | MAG Side

404161986

$17.88

20

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

21

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

22

THROTTLE SCREW - Call your local BRP dealership

404125200

Unavailable

23

Spring

404101700

$4.24

24

Cap

404105800

$6.49

25

E-Ring

404152400

$6.36

26

Packing

404117000

$3.31

27

Cover

404103700

$32.06

28

Screw With Lock Washer

404102000

$3.19

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Gasket | Includes 1900a to 1900am

404104200

$6.49

31

Drain Plug Screw

404107400

$23.85

32

O-Ring

404107300

$7.90

33

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

34

Cap

404156600

$15.64

35

Nipple

404153400

$11.16

36

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
