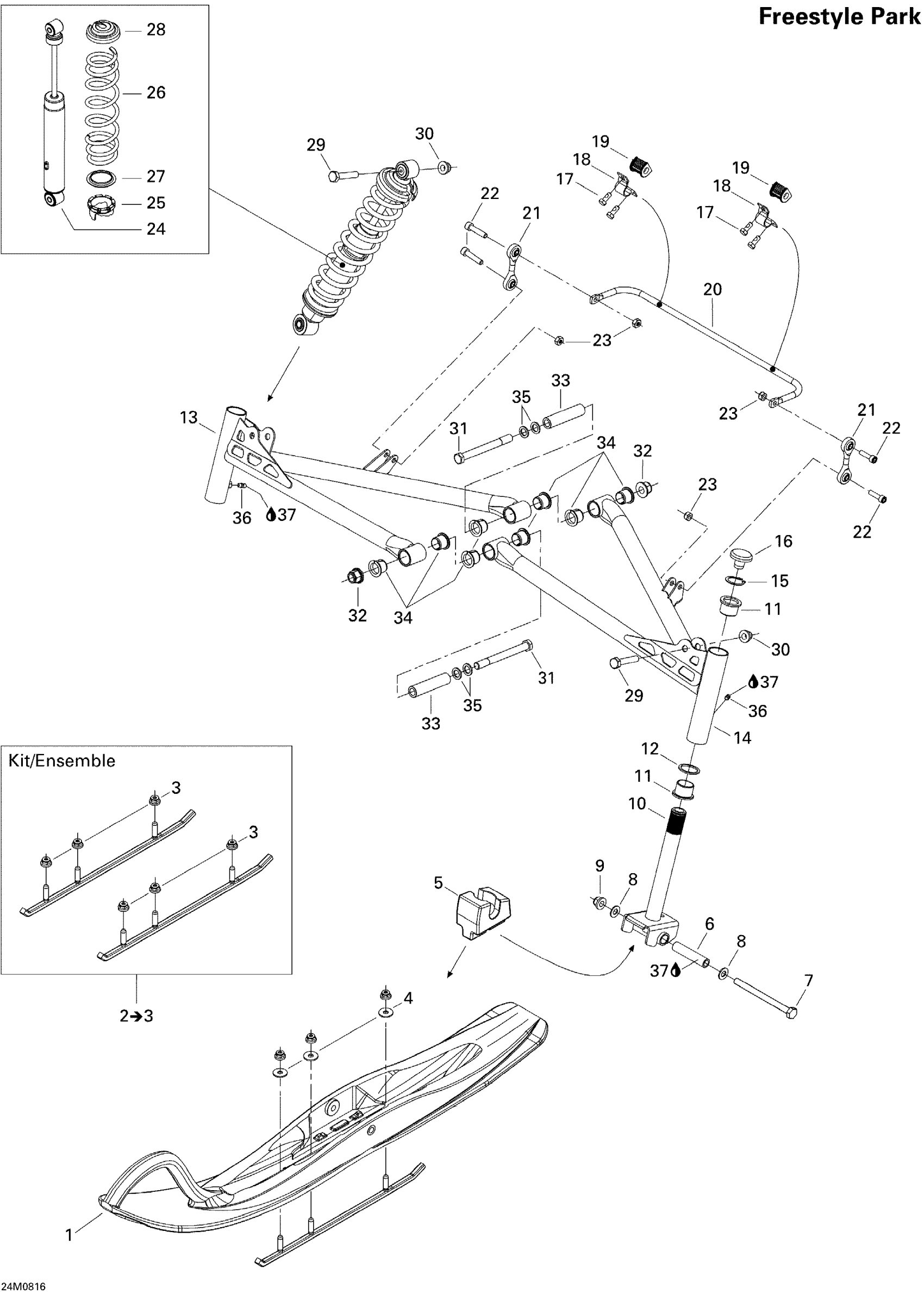

Ski-Doo Freestyle PARK 550F, 2008 Front Suspension And Ski Diagram

#

Description
Price

1

Small ''Blow Mold'' Ski

505072019

Unavailable

2

Carbide Runner Kit | STD, Includes 7 to 9 This part replaces 861805509.

860512100

Unavailable

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

Flat Washer 8 mm

234082410

$1.11

5

SKI STOPPER - Call your local BRP dealership

505070978

Unavailable

6

Spacer

506133300

Unavailable

7

Hex. Screw M10 X 130 | Model-RT STD

250000703

Unavailable

8

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

9

Elastic Stop Nut M10

232500416

$1.56

10

SKI LEG - Call your local BRP dealership

505072001

Unavailable

11

Cushion

505070003

Unavailable

12

WASHER - Call your local BRP dealership

505070004

Unavailable

13

RH LOWER ARM - Call your local BRP dealership

505071739

Unavailable

14

LH LOWER ARM - Call your local BRP dealership

505071740

Unavailable

15

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

16

Cap

572091300

$8.97

17

SCREW-HEX.CAP WITH NYLON PATCH - Call your local BRP dealership

250000281

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

Unavailable

19

TORSION BUSHING - Call your local BRP dealership

505072225

Unavailable

20

STABILISATOR - Call your local BRP dealership

505072226

Unavailable

21

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

22

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

23

Hex. Elastic Stop Nut M8

232581414

Unavailable

24

FRONT SHOCK - Call your local BRP dealership

505072191

Unavailable

25

Adjustment Cam

505073625

Unavailable

26

VIPER RED SPRING - Call your local BRP dealership | Grey-Red Model

505072219

Unavailable

27

Spring Guide

503191872

Unavailable

28

Spring Stopper

706200881

$10.30

29

Hex. Screw M10 X 55

207005544

$1.85

30

Hex. Flange Elastic Nut M10

233201414

$1.26

31

HEX. SCREW M12 X 120 - Call your local BRP dealership

230022044

Unavailable

32

Hex. Flange Elastic Nut M12

233221414

Unavailable

33

BUSHING - Call your local BRP dealership

505071366

Unavailable

34

BUSHING - Call your local BRP dealership

505072094

Unavailable

35

Washer

503189276

Unavailable

36

Grease Fitting

408200700

Unavailable

37

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
