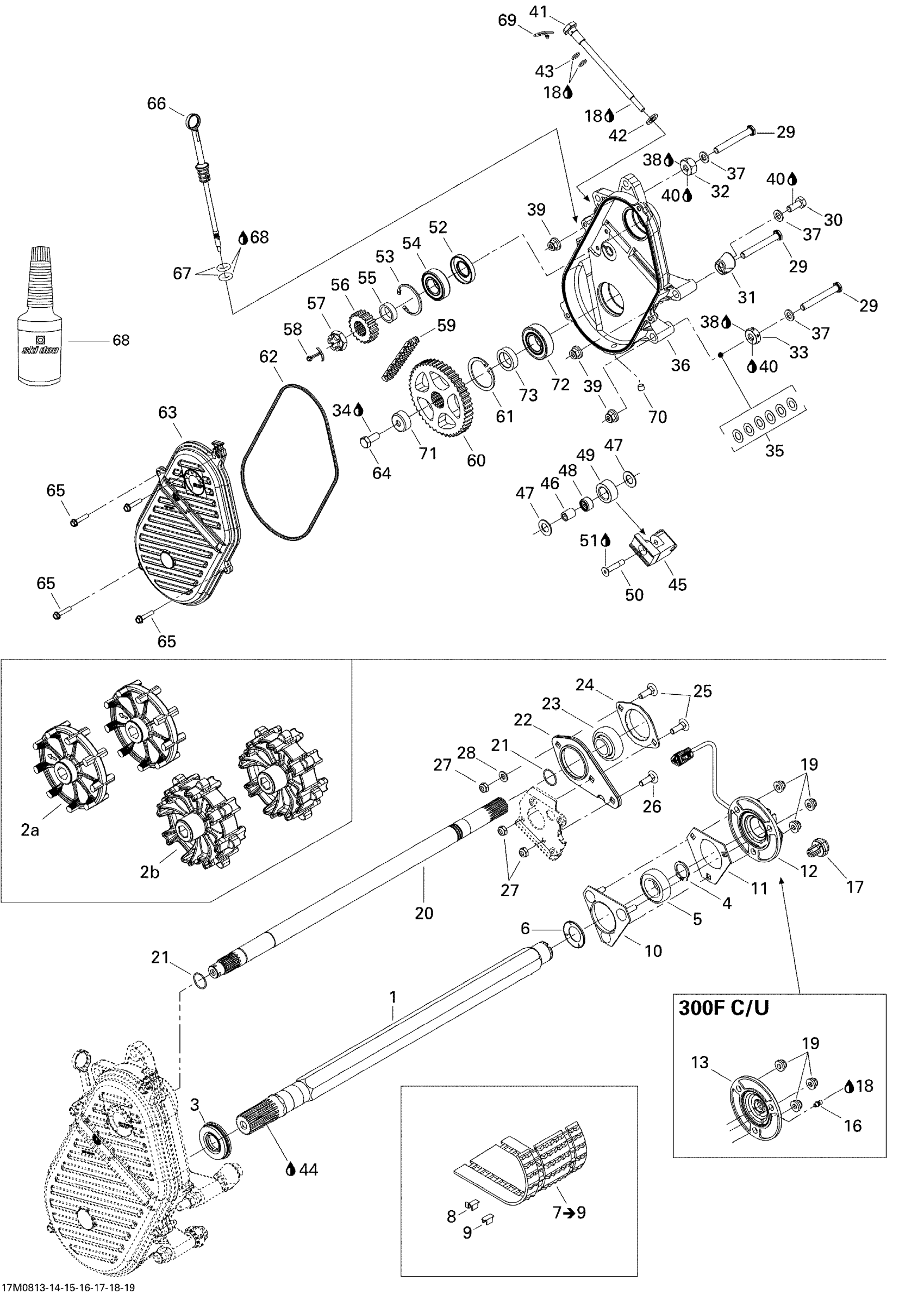

Ski-Doo Freestyle PARK 550F, 2008 Drive System Diagram
#
2a
SPROCKET, 9 TEETH - Call your local BRP dealership
504151781
Unavailable
2b
Not Available As Spare Parts
XXX
Unavailable
3
Oil Seal Ass'y
504151918
Unavailable
4
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
5
Ball Bearing
293350060
Unavailable
6
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
7
$760.00
9
Not Available As Spare Parts
XXX
Unavailable
10
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
11
FLANGE - Call your local BRP dealership
501025000
Unavailable
12
Rotation Sensor
504152345
Unavailable
13
Not Available As Spare Parts
XXX
Unavailable
16
Not Available As Spare Parts
XXX
Unavailable
17
MAGNETIC ADAPTOR - Call your local BRP dealership
504152040
Unavailable
18
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
COUNTER SHAFT - Call your local BRP dealership
504152292
Unavailable
21
Circlip
371910000
Unavailable
22
SPACER - Call your local BRP dealership
504151968
Unavailable
23
Ball Bearing Kit This part replaces 504152535.
415129555
Unavailable
24
BEARING HOUSING ASS'Y - Call your local BRP dealership
504153089
Unavailable
26
Carriage Bolt, M8 X 20
207782044
Unavailable
27
Hex. Elastic Stop Nut M8
232581414
Unavailable
28
Flat Washer 8 mm
234081410
Unavailable
29
HEX. SCREW M10 X 80 - Call your local BRP dealership
250000151
Unavailable
30
Hex. Screw M10 X 25
207102544
Unavailable
31
Spacer
504152252
Unavailable
32
Spacer
504083800
Unavailable
33
SPACER - Call your local BRP dealership
504152237
Unavailable
34
Loctite 271, 10 ml
293800005
Unavailable
35
WASHER - Call your local BRP dealership
504073700
Unavailable
36
CHAINCASE - Call your local BRP dealership
504152481
Unavailable
38
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
41
ADJUSTMENT SCREW - Call your local BRP dealership
732601314
Unavailable
42
Flat Washer 10 mm
234001410
Unavailable
44
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
45
Chain Tensioner
504151951
Unavailable
46
SPACER - Call your local BRP dealership
504080200
Unavailable
47
WASHER - Call your local BRP dealership
504080300
Unavailable
49
ROLLER - Call your local BRP dealership
414531300
Unavailable
50
SCREW - Call your local BRP dealership
732601144
Unavailable
51
Loctite 271, 10 ml
293800005
Unavailable
52
SEAL - Call your local BRP dealership
504151927
Unavailable
53
CIRCLIP - Call your local BRP dealership
371901700
Unavailable
54
Ball Bearing
293350115
Unavailable
55
SHIM - Call your local BRP dealership
504147200
Unavailable
57
HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership
250000012
Unavailable
58
PIN COTTER - Call your local BRP dealership
371006300
Unavailable
59
Drive Chain, 74 Links | Except Europe
504151857
Unavailable
60
45 Tooth Sprocket | Europe
504152238
Unavailable
61
CIRCLIP, INTERIOR - Call your local BRP dealership
415064300
Unavailable
63
CHAINCASE COVER - Call your local BRP dealership
504152471
Unavailable
64
Hex. Screw M10 X 25
207102544
Unavailable
66
FILLER CAP ASS'Y - Call your local BRP dealership
504151703
Unavailable
67
O-RING - Call your local BRP dealership
414969400
Unavailable
68
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
413803300
Unavailable
69
Hair Pin
414575600
Unavailable
70
Plug 1/8”-27
504151921
Unavailable
71
CAP - Call your local BRP dealership
504152460
Unavailable
72
Ball Bearing
504152005
Unavailable
73
SHIM - Call your local BRP dealership
504152649
Unavailable
