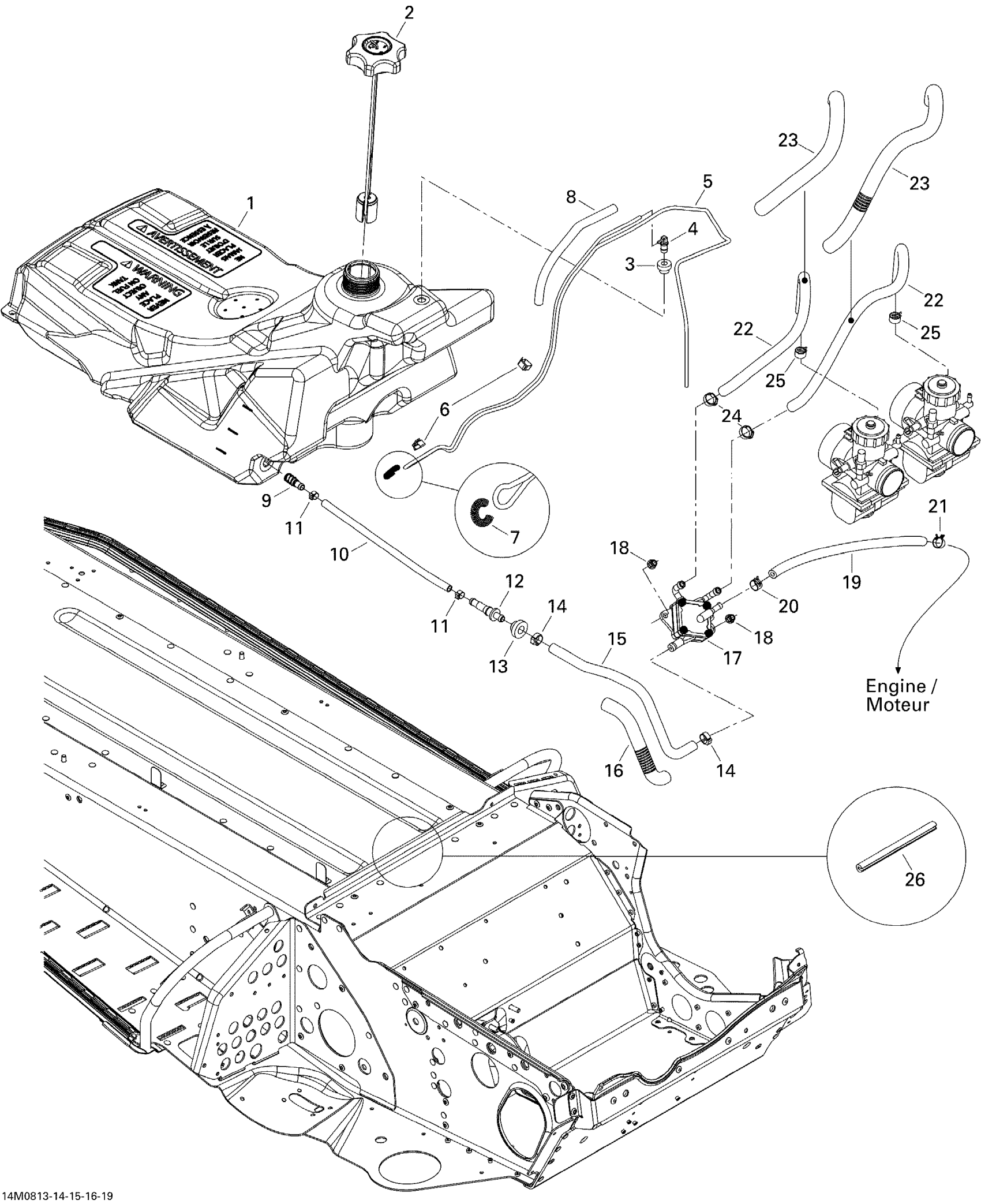

Ski-Doo Freestyle PARK 550F, 2008 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033179

Unavailable

2

Fuel Tank Cap

513033361

$56.12

3

Grommet

513032908

$8.74

4

Male Connector

414814100

$2.18

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

6

Clip

414227300

$1.45

7

SPRING - Call your local BRP dealership

414818200

Unavailable

8

Tubing 10 MM 1000MM Long

219704407

Unavailable

9

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

10

Hose

415005700

$5.49

11

Norma Spring Clamp

513033010

Unavailable

12

Male Connector

414872700

Unavailable

13

Grommet | Europe

707800347

Unavailable

14

Crimp Clamp

293650053

Unavailable

15

Formed Hose

513033374

$29.20

16

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

17

Fuel Pump

403901813

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

19

FORMED HOSE - Call your local BRP dealership

513033111

Unavailable

20

Spring Clamp

414415200

$0.83

21

Universal Spring Clamp

513033029

Unavailable

22

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

23

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

24

Crimp Clamp, 15.3-706R

293650047

Unavailable

25

Universal Spring Clamp

513033029

Unavailable

26

TRIM - Call your local BRP dealership

509000263

Unavailable
