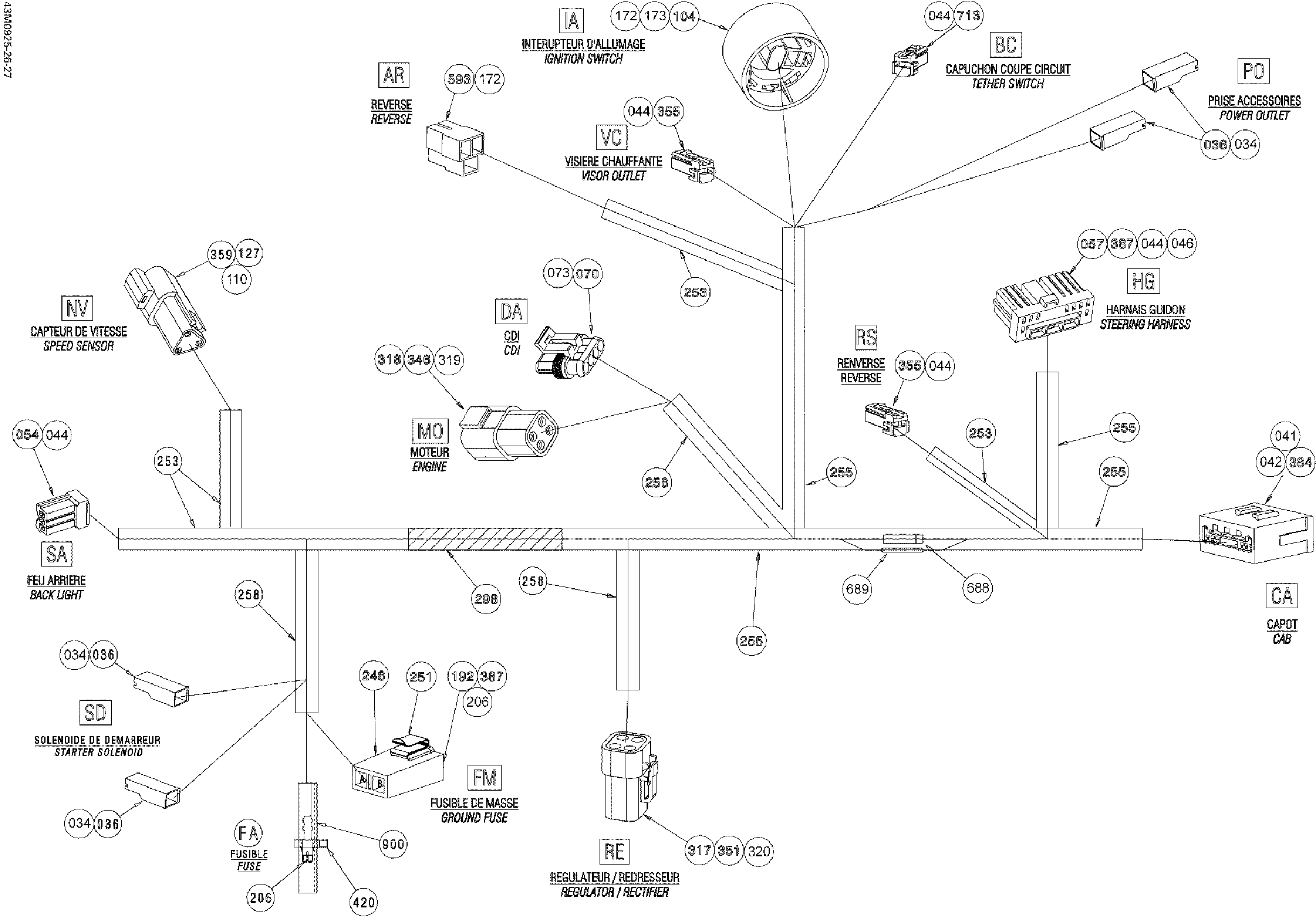

Ski-Doo Freestyle Back Country, 2009 Electrical Harness Diagram
#
Description
Price
1
Frame Harness | Includes 1 to 900
515176360
Unavailable
42
MALE TERMINAL - Call your local BRP dealership
515175273
Unavailable
44
Female Terminal
515175231
Unavailable
57
Female Terminal Housing, 13 Circuits
515175350
Unavailable
70
Female Housing, 4 Circuits
409209700
Unavailable
73
Wire Seal
278001013
Unavailable
104
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership
572150700
Unavailable
172
Female Terminal
561503100
Unavailable
173
Female Terminal
561503100
Unavailable
206
Female Terminal
409004200
Unavailable
248
Fuse Holder
409004000
Unavailable
255
Was 409901800 Tubing (13 mm)
219704400
Unavailable
258
Tubing 10 MM 1000MM Long
219704407
Unavailable
298
Tape
293740005
Unavailable
317
Female Terminal Housing, 4 Circuits
278001473
Unavailable
318
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278001477
Unavailable
346
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
278001478
Unavailable
351
Female Lock, 4 Circuits
278001474
Unavailable
355
Female Housing, 2 Circuits
515175658
Unavailable
359
Male Housing
515175666
Unavailable
384
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
515175720
Unavailable
387
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
593
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
515176069
Unavailable
688
CAPACITOR - Call your local BRP dealership
515176279
Unavailable
689
RESISTANCE - Call your local BRP dealership
515176280
Unavailable
713
Female Terminal Housing, 2 Circuits
515176296
Unavailable
900
Hose
415079200
Unavailable
