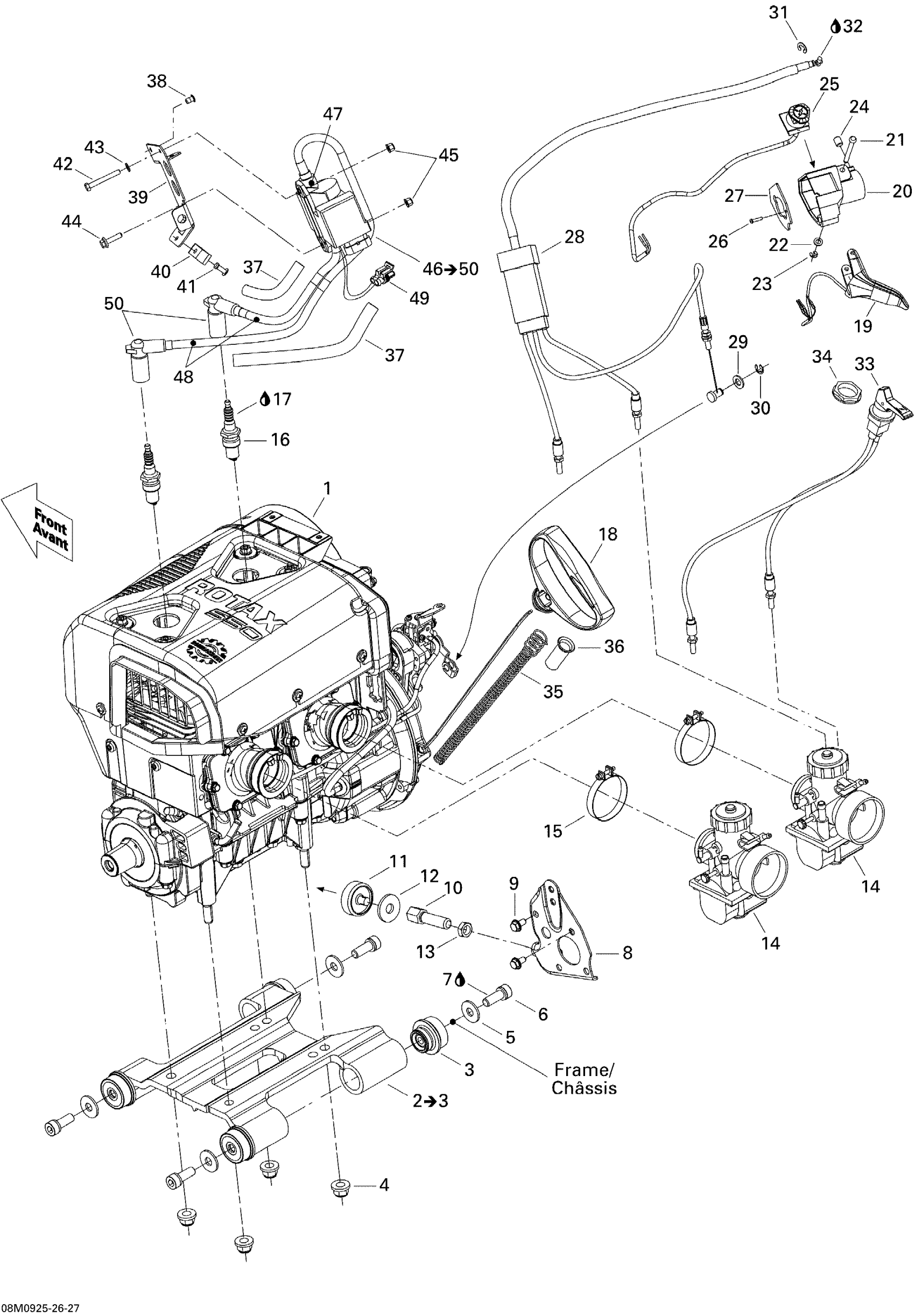

Ski-Doo Freestyle Back Country, 2009 Engine And Engine Support Diagram

#

Description
Price

1

Engine 552

400509785

Unavailable

2

ENGINE SUPPORT - Call your local BRP dealership | Includes 2 to 3

512060034

Unavailable

3

Rubber Mount

512059691

$44.58

4

Hex. Flange Elastic Nut M10

233201414

$1.26

5

Flat Washer M10 | 4X4

250200014

$1.17

6

TORX LOW HEAD SOCKET SCREW M10 X 25 - Call your local BRP dealership

235202544

Unavailable

7

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

8

Support Plate

512059910

Unavailable

9

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

10

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

11

STOPPER - Call your local BRP dealership

512059610

Unavailable

12

WASHER - Call your local BRP dealership

512059057

Unavailable

13

Nut Hexagonal RH.

232026414

Unavailable

14

CARBURETOR VM30-214 - Call your local BRP dealership

403138786

Unavailable

15

Gemi Clamp | Not Shown

512059834

$10.52

16

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

Unavailable

17

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

18

Starter Grip

572084400

Unavailable

19

Handle Ass'y | Includes 3820 to 3820a

512061251

$89.97

20

Throttle Housing

512060603

$10.57

21

Lever Pin

414438700

$11.14

22

Flat Washer M5, Stainless

234051600

$0.64

23

Circlip

293370050

$0.46

24

Socket Set Screw M8 X 10

414440800

$4.00

25

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

26

TORX SCREW M2.9 X 12 - Call your local BRP dealership

250000265

Unavailable

27

Plate

512060390

$9.31

28

THROTTLE CABLE - Call your local BRP dealership

512060195

Unavailable

29

Flat Washer 8 mm, Nylon

234081100

$1.00

30

Circlip

414753500

$0.59

31

Circlip

414274500

Unavailable

32

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

33

CHOKE CABLE - Call your local BRP dealership

512059914

Unavailable

34

Plastic Nut

512060671

$0.98

35

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

36

TUBE - Call your local BRP dealership

512059536

Unavailable

37

Was 409901700 Tubing (9 mm)

219704399

Unavailable

38

Pop Rivet 3/16"

390402200

$0.26

39

MODULE SUPPORT - Call your local BRP dealership

512060160

Unavailable

40

CLAMP - Call your local BRP dealership

420860945

Unavailable

41

Pop Rivet 3/16”

390407200

$0.66

42

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

43

Flat Washer M5

234051410

Unavailable

44

Hex.Flange Screw M5 X 20

207652044

$1.56

45

Hex. Flange Elastic Nut M5

233251414

Unavailable

46

Calibrated Module | Includes 46 to 50

512060157

Unavailable

47

PROTECTION CAP - Call your local BRP dealership

515174900

Unavailable

48

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

49

Female Housing, 2 Circuits

409209500

$13.48

50

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable
