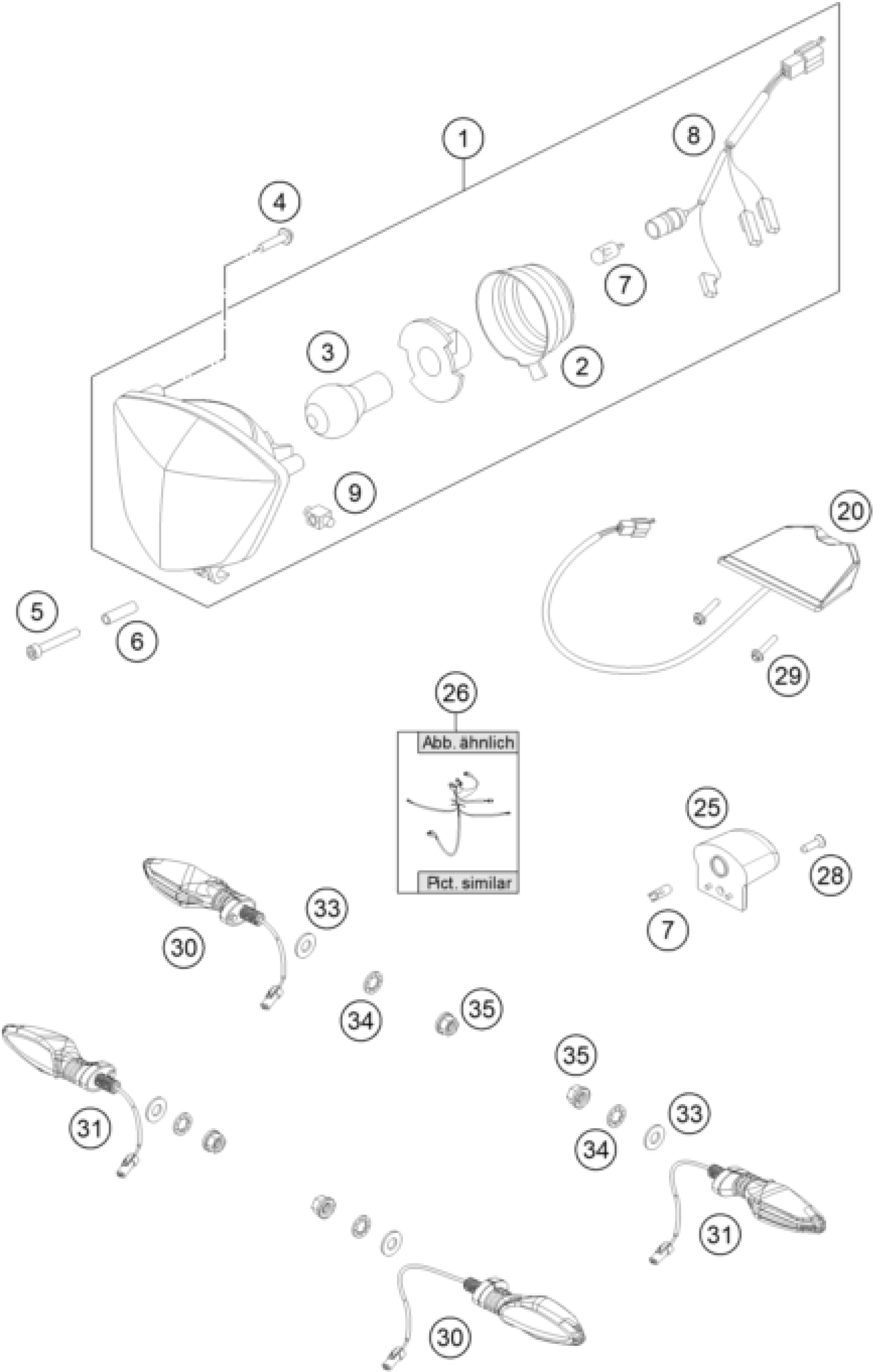

KTM Freeride E-XC 2018 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT

81214001000

Unavailable

2

RUBBER CAP FOR HEAD LIGHT 05

54814001050

Unavailable

3

BILUX-BULB 12V 35/35W BA20D

44111038000

Unavailable

4

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

5

AH SCREW DIN912-M5X50 10.9

0912050503

Unavailable

6

DIST. HOSE F. HEAD LIGHT MASK

72008008000

Unavailable

7

BULB 12V 5W (W2,1X9,5D)

49011435000

Unavailable

8

CABLE FOR HEAD LIGHT 2005

54811001050

Unavailable

9

INSERT FOR HEAD LIGHT SUPPORT

81208003010

Unavailable

20

REAR LIGHT

78114040000

Unavailable

25

Number plate light

75014047100

Unavailable

26

FLASHER HARNESS

72511081000

Unavailable

28

SCREW FOR PLASTIC 50X18 T20

0081250181

Unavailable

29

Special screw K60X30 WS=6

0017060305

Unavailable

30

turn signal front left/rear ri

60314025000

Unavailable

31

turn signal front right/rear l

60314026000

Unavailable

33

washer DIN 125 A 10.5

0125100003

Unavailable

34

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable
